Carretilla elevadora neumática de CI de alta capacidad

El neumático de circuito integrado de núcleo de alta capacidad de Toyota ofrece la potencia y versatilidad que necesitas para afrontar los retos de manipulación de materiales de alta capacidad en cualquier operación de alta capacidad. Con una capacidad de carga de hasta 30.000 libras, es ideal para aplicaciones madereras, acereras y automotrices, y puede ayudarte a mover casi cualquier cosa. Si le sumas la durabilidad de un eje motriz robusto y una transmisión Dana, estarás listo para hacer el trabajo.

Specs

Specifications of the High-Capacity Core IC Pneumatic Forklift

Learn more about the current Toyota High-Capacity Core IC Pneumatic models that are available for purchase.

22,000 - 30,000

Load Capacity

(lbs.)

138

Maximum Fork Height

(in.)

24

Load Center

(in.)

Length to Forkface

180.08 - 180.58 in.

High Capacity Pneumatic Core IC Length

Overall Height

133.41

High-capacity pneumatic height IC core

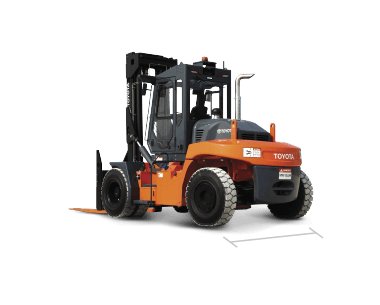

Overall Width

98.09

High Capacity Pneumatic Core IC Width

Models for High-Capacity Core IC Pneumatic Forklift

Modelo Capacidad de carga (lbs.) Velocidad máxima de desplazamiento a plena carga (MPH) Velocidad máxima de elevación a plena carga (FPM) Pila básica de ángulo recto (pulg.)
2THD220-24 22,000 17.9 87 194.23
2THD240-24 24,000 17.9 87 194.48
2THD260-24 26,000 17.9 87 194.48
2THD280-24 28,000 17.9 87 194.73
2THD300-24 30,000 17.9 87 194.73

* Based on a 24" load center ** Add load length and clearance



Product specifications may not reflect the most current product details. The most up-to-date product specifications are maintained by authorized Toyota dealers. All specifications must be verified by an authorized Toyota dealer prior to purchase.

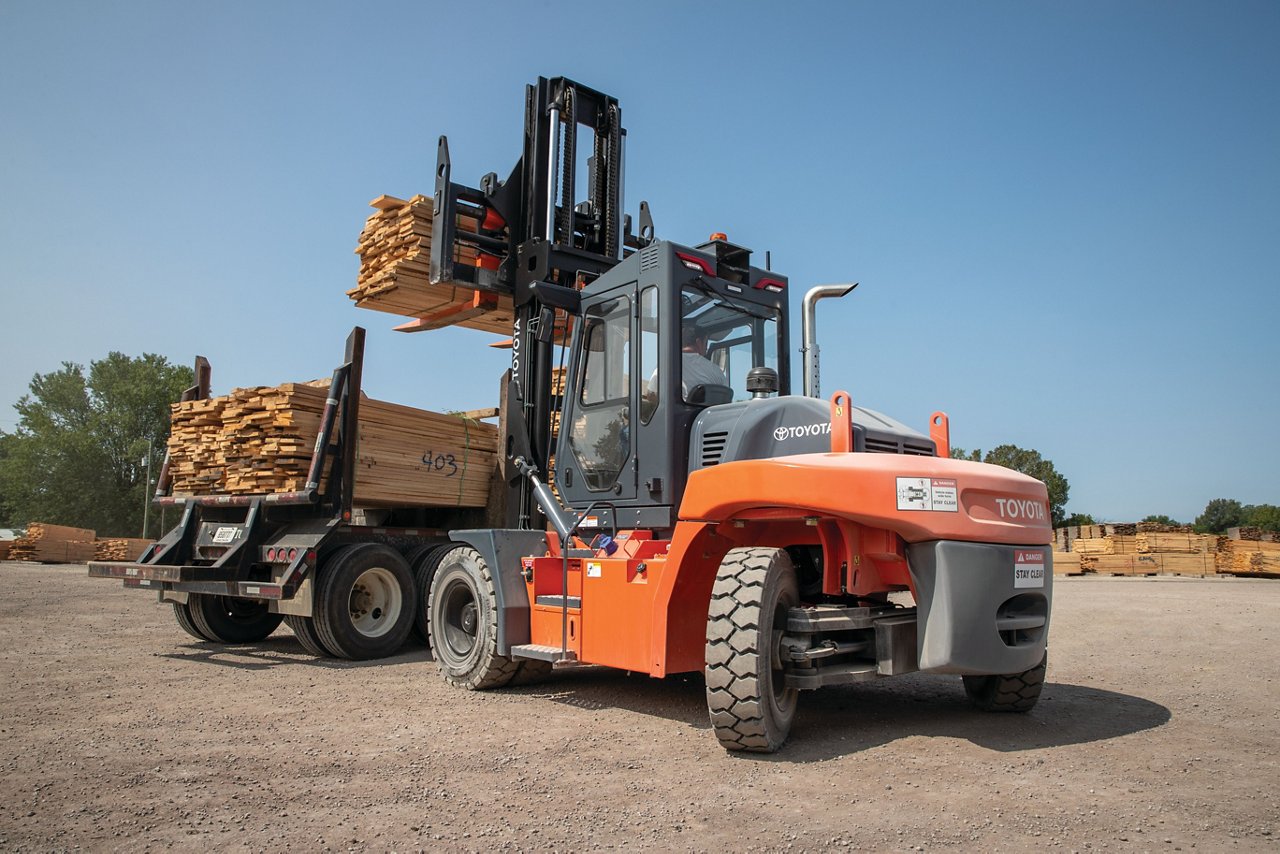

Pneumatic_Application_54 High-capacity core integrated circuit

Performance

The Muscle to Lift, Regardless of the Load

Innovative design means smart, long-lasting power with the Toyota High-Capacity Core IC Pneumatic Forklift. Built with a Cummins 4-cylinder diesel engine and Dana TE-14 transmission and assembled in Indiana, its capacity of up to 30,000 pounds will have you ready to take on any task.

Characteristics of the High-Capacity Core IC Pneumatic Forklift

Toyota's High-Capacity Core IC Pneumatic Forklift offers versatility to handle any heavy-duty task, no matter your high-capacity operational needs. This product comes equipped with a Cummins 4-cylinder diesel engine that delivers up to 173 HP to give you the torque you need to move anything in the warehouse or in the sun. And it's durable, with a rugged drive axle and electronically controlled transmission that complete a reliable and rugged construction.

See the value of High-Capacity Core IC Pneumatic Forklift in two important areas. When operators are hard at work, the low-tilt cylinder design, shorter carriage, and clear-view glass provide an unobstructed line of sight. And when it comes to control, it has hydraulic fingertip controls, an air-suspended seat and long operator-assist grips. In addition, this lift comes with a standard premium cabin with amenities such as work lights, heaters, and air conditioning to keep you comfortable and productive.

Safety features of the High-Capacity Core IC Pneumatic Forklift include an integrated top guard that helps protect the operator from falling objects. This forklift also includes a neutral safety switch and an operator restraint system. Wet disc brakes also come standard on this forklift that seals debris, keeps the brakes running cool, and reduces wear and tear for increased uptime and longer life.

Compare Equipment

Toyota Material Handling Products

Compare similar Toyota products to High-Capacity Core IC Pneumatic Forklift.

Options / Accessories

High Capacity Core IC Pneumatic Accessories

Get the most out of your High-Capacity Core IC Pneumatic Forklift by considering additional options and accessories. A Toyota forklift can be customized to meet your operational needs. An authorized Toyota dealer can help you develop the best forklift that can help you with your company's biggest material handling challenges.

Forward View Camera

The Forward View Camera system provides the driver with a direct view of the ground in front of the truck, revealing dead spots and obstacles, preventing damage.

Public PNG Reach Stacker Close-up 3

Rear Object Detection

High-resolution radar sensor to detect moving and stationary objects behind the forklift.

JPG IC IC High Capacity Pneumatic Application THD 14

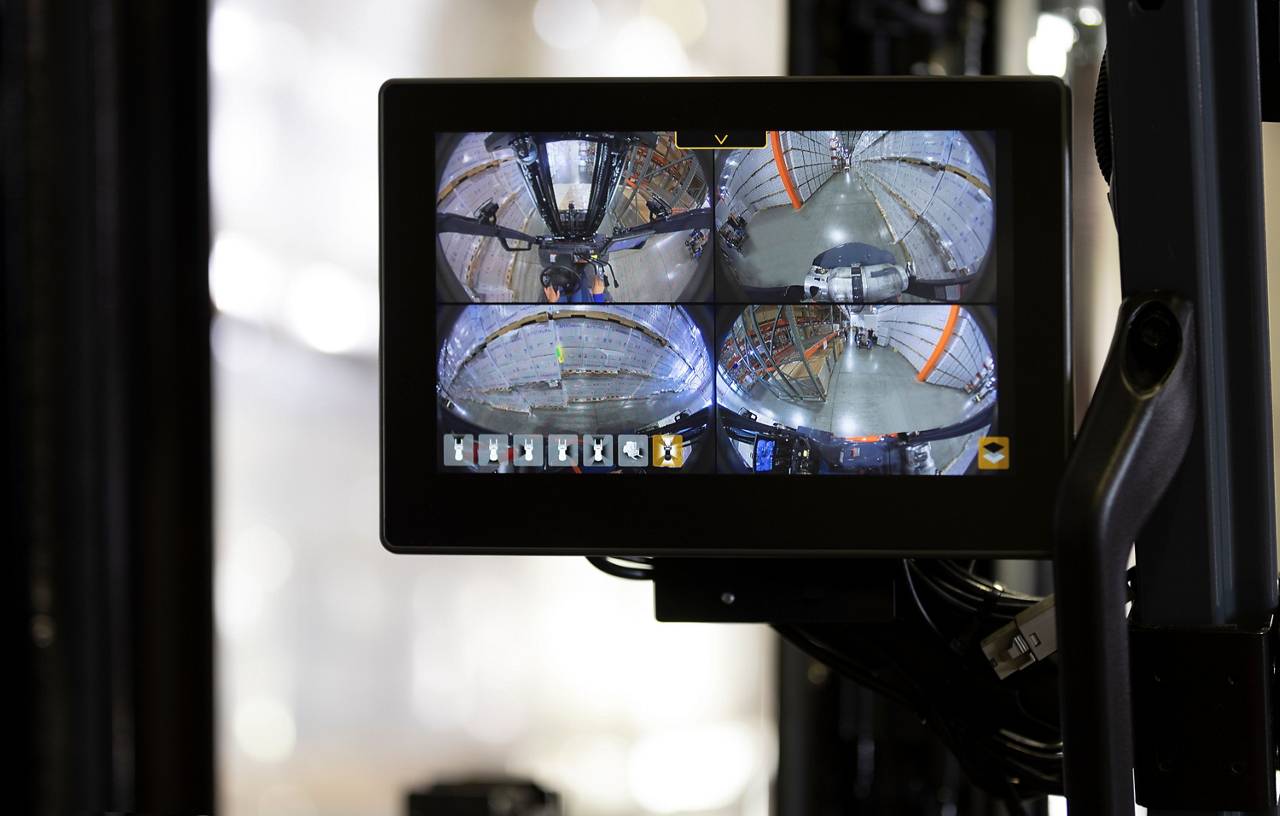

Dual Camera

The dual-camera system provides the driver with a direct view of the ground at the front and rear of the truck, revealing dead spots and obstacles, preventing damage.

Dual Camera
