Core Tow Tractor Automated Forklift

The intelligent Toyota Core Tow Tractor Automated Forklift combines cutting-edge automation technology with the reliability of Toyota’s dependable Tow Tractor, featuring up to 10,000 lbs. of towing capacity. By utilizing advanced sensors for mapped-object detection, this automated towing solution will help you lower operating costs and improve efficiency in repetitive material moving tasks.

Specs

Core Tow Tractor Automated Specifications

Learn more about the current Toyota’s Core Tow Tractor Automated models that are available for purchase.

10,000

Load Capacity

(lbs.)

LIDAR

Technology

24

Electrical System

(V)

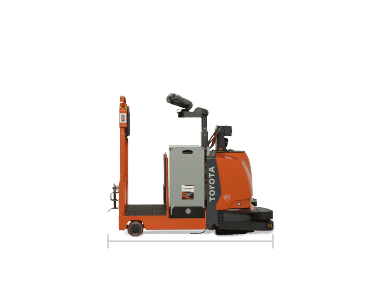

Overall Length

59.97 in.

Core Tow Tractor AGF Length

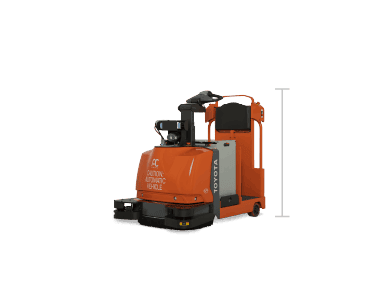

Overall Height

48.81 - 53.54 in.

Core Tow Tractor AGF Height

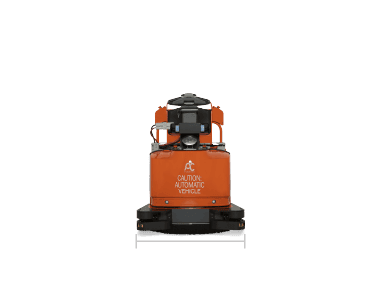

Overall Width

39.94 in.

Core Tow Tractor AGF Width

Models for Core Tow Tractor Automated Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
8TB50A 10,000 4 N/A N/A N/A

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

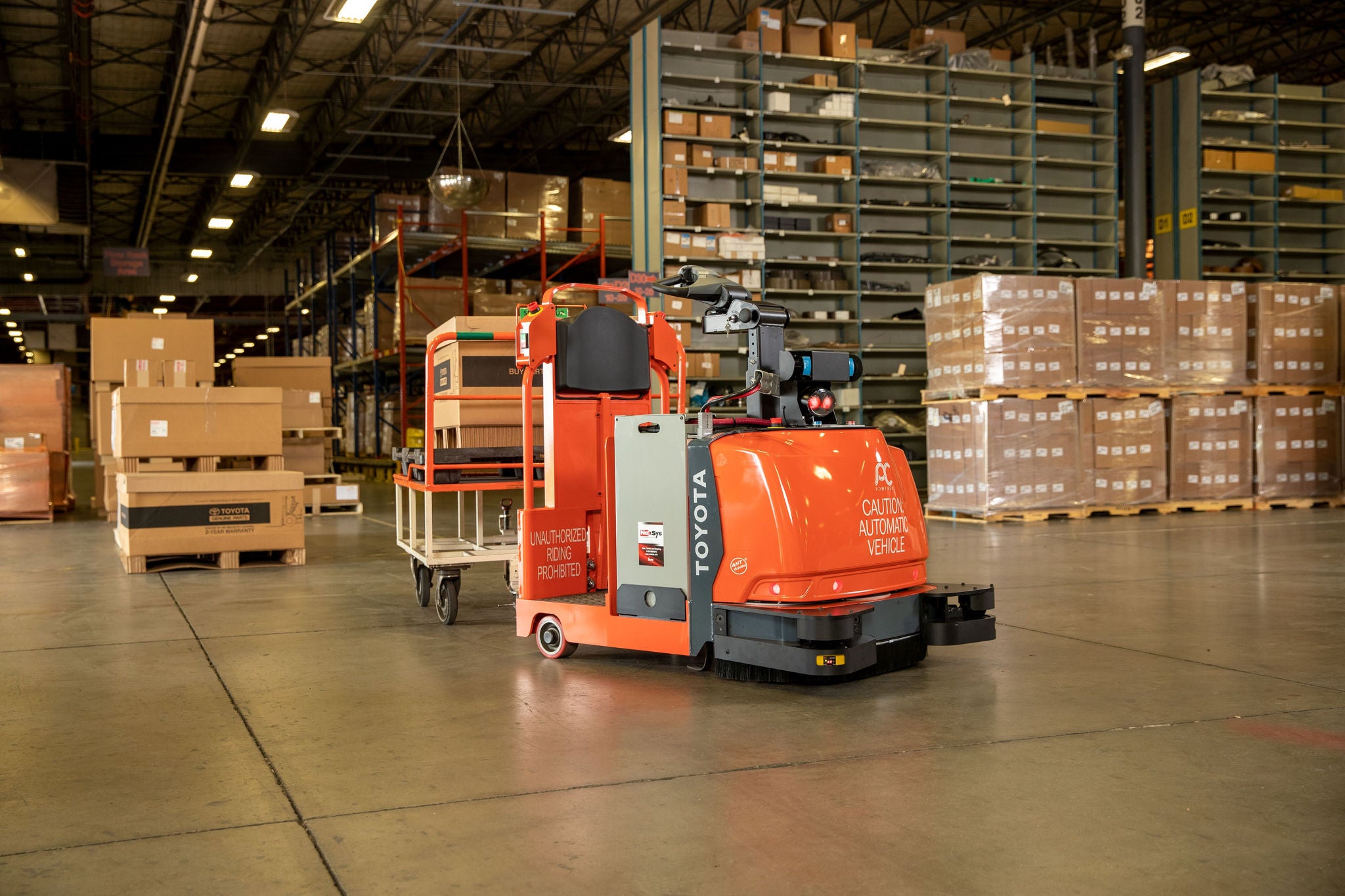

Core Tow tractor pulling cart with boxes

Performance

Classic Performance Meets Advanced Tech

Toyota’s Automated Core Tow Tractor features an AC Drive System, AC Drive Motor, and regenerative braking. This tow tractor increases productivity and provides the ideal horizontal transport solution for transporting material and pulling carts through a facility. Each AGV is powered by LIDAR-based natural features navigation, which requires little to no additional infrastructure or complicated setup.

Automated Tow Tractor Features

Toyota’s Automated Core Tow Tractor is powered by LIDAR-based natural features navigation and can operate with accuracy tolerance ranges within half an inch when positioning and delivering loads. The upshot for you? There’s no need to rearrange your facility infrastructure or undergo a complicated setup. Onboard software will create a map of the area in which the automated tractor will work and let the equipment get to work.

Toyota’s Core Tow Tractor utilizes advanced sensors to detect obstacles and slow or stop the vehicle when an unmapped object is detected in its path. Cutting-edge geometry can even detect mapped structures behind objects, meaning an errant pallet or object won’t interrupt normal operation. Toyota’s automated forklifts offer an accuracy tolerance as narrow as 0.5” when positioning and maneuvering loads, allowing you to operate with confidence.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Core Tow Tractor Automated

This Product

Main product
Core Tow Tractor Automated Forklift

Options / Accessories

Popular Core Tow Tractor Accessories

Make the most of your Automated Core Tow Tractor by considering additional options and accessories. Toyota equipment can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in finding the best forklift that can help you with your company’s biggest challenges.

Automatic Charging

The automated vehicle drives over the contacts on the floor and matches up with contacts on the bottom of the truck to allow for automatic opportunity charging.

Core Tow Tractor Group Shot

Automatic Coupler Tow Hitch

For automated solutions, not requiring an operator.

Public JPG CoreTow Tractor AGV Close Up7

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.

white logo for Bastian Solutions, Toyota's automation partner

Toyota Material Handling and Bastian Solutions: Strength at Every Level

Toyota Material Handling has your pallet handling needs covered. Through our partnership with Bastian Solutions, a Toyota Automated Logistics Company, we can help your operation down to the parcel level and can make pallet handling more efficient. Bastian Solutions works closely with your Toyota Material Handling Dealer to offer industrial robotics systems that can handle individual products at each level, goods-to-person order picking systems for efficient labor use, and automated pallet handling, receiving, storing, and depalletizing. Click below to discover the possibilities.
