Large IC Cushion Forklift

Toyota’s Large IC Cushion Forklift is a durable high lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. This forklift is built to last and handle the toughest loads. With reduced fuel emissions and fuel consumption, the Large IC Cushion Forklift is an indoor heavy duty solution to your material handling challenges.

Specs

Specifications of Large IC Cushion Forklift

Learn more about Toyota's current IC Large Cushion Forklift models that are available for purchase.

8,000 - 15,500

Load capacity

(lbs)

11.8 - 13

Travel speed at full load

(MPH)

Gas / LPG

Fuel Type

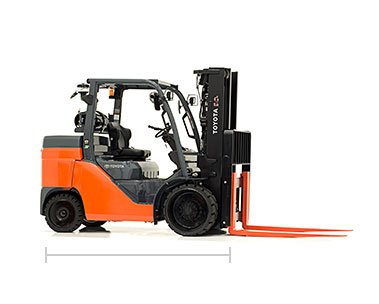

Length to fork

103 - 118.1 in.

 Long Length IC Cushion Image

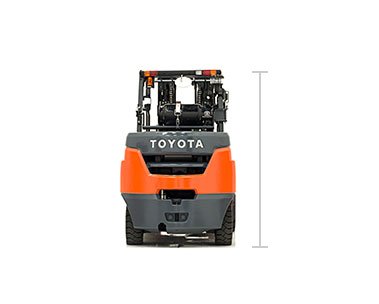

Height of the upper protector

83.5 - 86 in.

IC pad height image

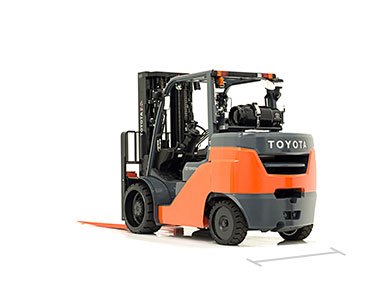

Overall width

50 - 57.1 in.

Wide-width IC imaging pad

Models for large IC cushion forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
50-8FGC35U 8,000 11.8 100 47 108
50-8FGC45U 10,000 11.8 98 37 113
50-8FGC55U 12,000 13 91 34 118
50-8FGC60U 13,500 13 81 31 123
50-8FGC70U 15,500 13 81 28 123

* Based on a 24" load center ** Add load length and clearance



Product specifications may not reflect the most current product details. The most up-to-date product specifications are maintained by authorized Toyota dealers. All specifications must be verified by an authorized Toyota dealer prior to purchase.

Yield

Big and in charge

Big enough to handle the most demanding jobs. Fuel-efficient enough to save businesses money while increasing productivity. Toyota's large IC cushion forklift is designed to use less fuel and produce fewer emissions. This forklift is capable of navigating 13-foot and 14-foot aisles while providing nearly 20 feet of lift. Most importantly, it's built to last. Get to know your indoor heavy-duty solution. Because it's a Toyota, its legendary quality, value, and reliability mean it's a smart choice, too.

IC to Electric Conversion

Sustainability starts with Toyota

With the rise of sustainability practices, more and more companies are taking significant steps to reduce their environmental footprint by adopting electric forklifts, charging stations, and batteries in their facilities. At Toyota, we uniquely design our industry-leading forklifts with cutting-edge technologies to help take your operation to the next level. But our expertise goes far beyond forklifts – we offer a variety of resources, such as site surveys , in-depth consultations, and energy surveys. This holistic approach allows us to better understand your application and easily identify which energy options are best for your facility's needs. You can rely on our dedicated and knowledgeable dealer network to ensure you find the best electric solution to power your fleet.

Features of IC Large Cushion Forklift

Toyota's IC Large Cushion Forklift comes with improved ergonomics, including load-sensing power steering, 11.8-inch steering wheel, in-dash courtesy tray and an oversized cup holder. This forklift also has a dash-mounted instrument display, low and wide entry steps, and a 4-way adjustable full-suspension vinyl seat, so operators feel comfortable and competent when performing their daily tasks.

Forward, up, back. Operators will appreciate the clear, open sight lines of Toyota's large IC cushion. The mast hose is hidden, the top skid bars are oriented for maximum visibility, and the mast crossmember does not block the view of the fork tips. The LPG tank holder also maintains a low profile. Even the sloping dashboard and slimmer steering wheel and column lend a hand. Visibility plays a major role in performance and productivity, and the large IC cushion delivers on it.

Two special editions for the Large IC Cushion models are designed to cope with demanding applications. The Boxcar Special incorporates a more compact cast iron counterweight to navigate tight car spaces while maintaining high lift capacity. The special paper roll is equipped as standard with a heavier and more compact counterweight, as well as optimal hydraulic flow and pressure settings, allowing the forklift to manoeuvre heavy paper rolls.

Compare Equipment

Toyota Material Handling Products

Compare similar Toyota products to the Large IC Cushion Forklift.

This Product

Main product
Large IC Cushion Forklift

Reviews
There are no reviews on this product at this time

Options / Accessories

Popular Forklift Accessories with Large IC Cushion

Get the most out of your large IC cushion forklift by considering additional options and accessories. A Toyota forklift can be customized to meet your operational needs. An authorized Toyota dealer can help you develop the best forklift that can help you with your company's biggest material handling challenges.

SEnS Intelligent Environment Sensor®

Operator assistance system designed to increase awareness of pedestrians and surrounding objects.

360-degree operation camera

The 360 Operating Camera gives you the ability to see multiple areas around the forklift to assist in tight environments.

Multifunction Controls of the Close-Up Retractable Mobile Cart

EZ touch controls

The forklift's functions can be operated with a single finger or thumb to minimize unnecessary movement during operation and help keep operators focused on the task.
