Tora-Max Straddle Stacker

Ideal for repetitive processes, the Tora-Max Straddle Stacker is the perfect lift to meet all your stacking needs. With a lifting capacity ranging from 3,500 – 4,000 lbs. and a maximum lift height of 207 inches, this stacker provides the versatility you need to handle various loads and stacking heights. Additionally, the Straddle Stacker is equipped with adjustable baselegs, also known as straddle legs, allowing you to maneuver various pallet sizes easily and efficiently.

Specs

Tora-Max Straddle Stacker Specifications

Learn more about the Tora-Max Straddle Stacker models that are available for purchase.

4,000

Max Load Capacity

(lbs.)

38-50

Adjustable Baselegs

(in.)

207

Max Lift Height

(in.)

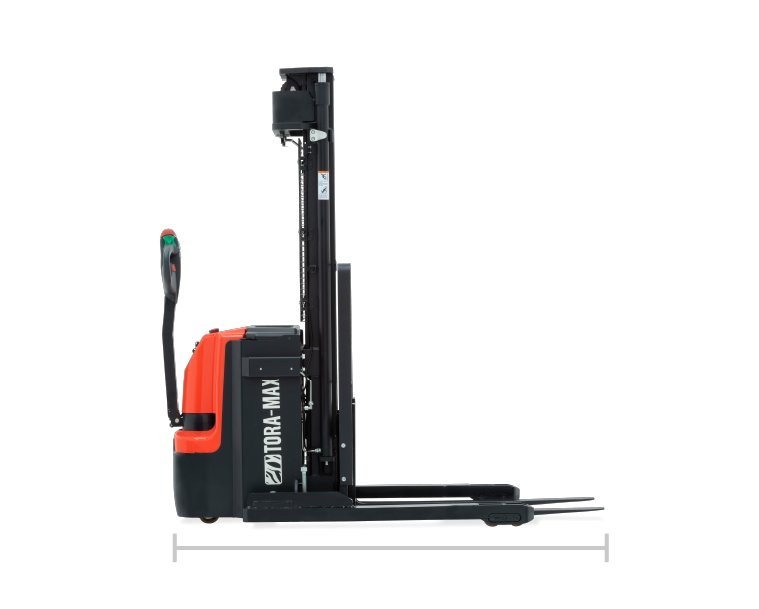

Overall Length

82-82.4 in.

Image of stacker forklift with a line to show how long the front of the forks are to the front of the unit

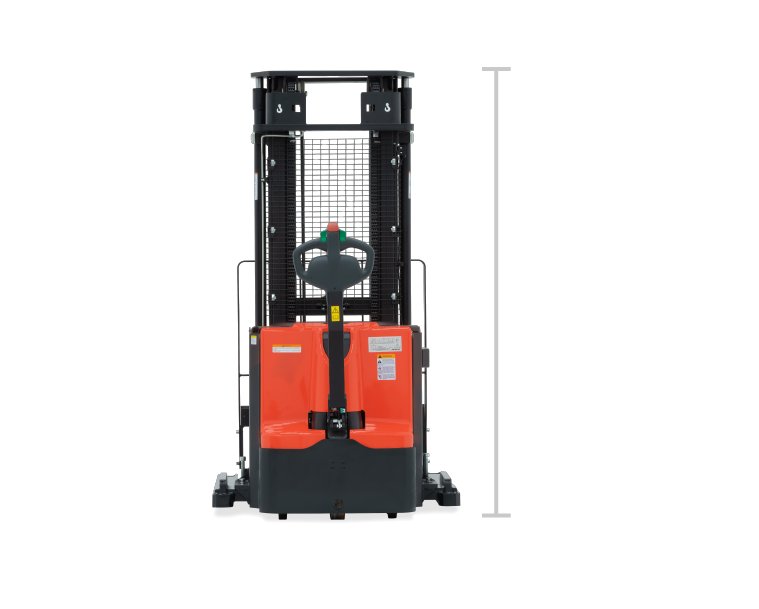

Overall Height

77.1-95.6 in.

Image of stacker forklift with a line to show how the height of the unit

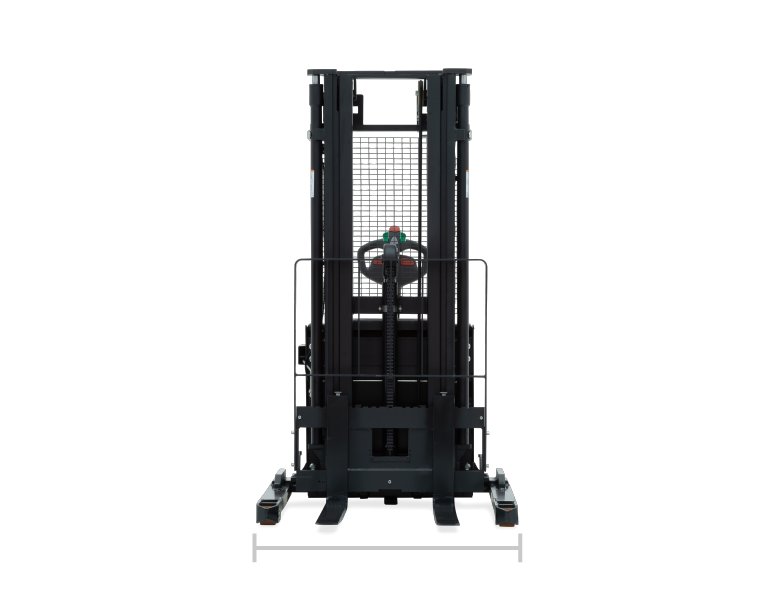

Overall Width

58 in.

Image of stacker forklift with a line to show how wide the front of the forks are

Models for the Tora-Max Straddle Stacker

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
2TSB35 3,500 3.4 25.59 6 96
2TSB40 4,000 3.4 25.59 6 96.3

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

Smooth Stacker

When you have a job to get done, you can rely on the Tora-Max Straddle Stacker. Featuring an AC drive motor and regenerative braking, this stacker operates smoothly through a variety of applications. Experience seamless lift and lower functions at your fingertips and an ergonomic tiller handle for smooth operation and maneuverability. Whether you’re working in light-duty warehouses, manufacturing facilities, back-of-store retail, or anywhere in between, the Straddle Stacker is the reliable lift you can count on.

Tora-Max Straddle Stacker Features

Toyota’s Tora-Max Straddle Stacker features directional thumb wheels and ergonomically placed lift and lower buttons for effortless operation at the touch of a button. Mesh protection is also included which protects the operator during operation, minimizing the chance of reflection and scratches.

The Tora-Max Straddle Stacker includes a maintenance-free sealed 24V lead-acid battery that is designed to power you through your operations whether you’re staging or stacking pallets in your facility. To get you back to work quickly, the Tora-Max Straddle Stacker has a built-in charger that allows for easy, accessible onboard charging.
