Driving forklifts up and down slopes, inclines, and ramps is a day-to-day activity required in many facilities. The task of moving loads on these obstacles should always be approached with caution and only performed by operators who have trained to do so. To help you better understand safety concerns with ramps, it’s useful to measure the grade of the incline.

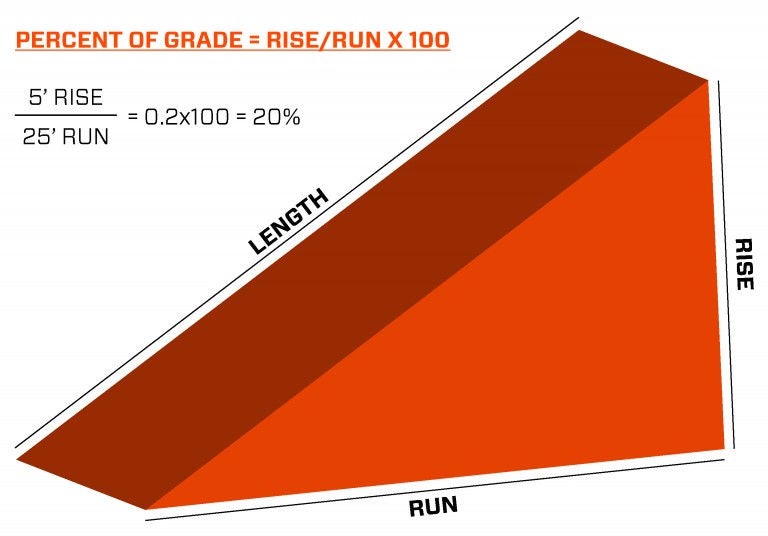

A ramp, slope, or incline is defined as an angle that exceeds 10 percent. Calculating the incline of the ramp will require knowledge of how high the ramp rises and how far it runs, as defined by the model below.
The grade of the ramp or slope is calculated by dividing the rise by the run. In the above example, the rise of 5 ft. divided by the run of 25 ft. results in a 20% grade.
Specific precautions are required when driving forklifts on ramps with grades over 10%. Loaded forklifts must be driven with the load pointed up the ramp (good standard practice is to ALWAYS drive with the load pointed up the ramp or slope). Raise levels should be limited to the minimum height necessary for ground clearance. Forklifts must be able to safely stop on the ramp or slope, according to model specifications provided by your manufacturer.
Familiarize yourself with OSHA forklift ramp and grade recommendations. Understanding these guidelines is critical for operators who are required to navigate such obstacles. Among the key recommendations from OSHA are:
If you have questions about ramps, slopes, and inclines, contact your local Toyota Forklift Dealer for more information.
