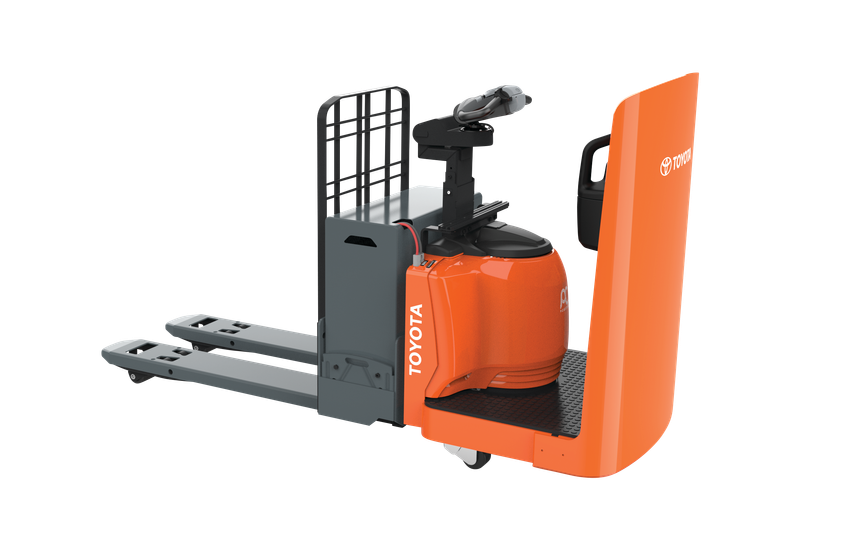

Side-Entry End Rider

Toyota’s Side-Entry End Rider is ergonomically friendly, equipped with standard power steering, best-in-class turning radius, and easy pallet entry and exit, to get the job done. The Side-Entry End Rider assists operators with speed reduction in turns, making it easier to transport loads when cornering, ideal for a combination of applications. Trust Toyota’s Side-Entry End Rider to be the ideal truck for dock work, cross-warehouse hauling, and low-level order picking.

Specs

Side-Entry End Rider Specifications

Learn more about the current Side-Entry End Rider models that are available for purchase.

6,000/8,000

Load Capacity

(lbs.)

6.5

Max Travel Speed

(MPH)

24

Voltage

(V)

Overall Truck Length

84.6-155.4 in.

side-entry end rider with length measurement labeled

Power Unit Height

31.4 in.

side-entry end rider with height measurement labeled

Overall Width

22-27.5 in.

side-entry end rider with width measurement labeled
Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Gradeability Full Load (%) Length (in.) Battery Voltage (V)
ER1-EF80 8,000 6.5 8 88.6-196.4 24
ER1-EF60 6,000 6.5 8 84.6-155.4 24

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

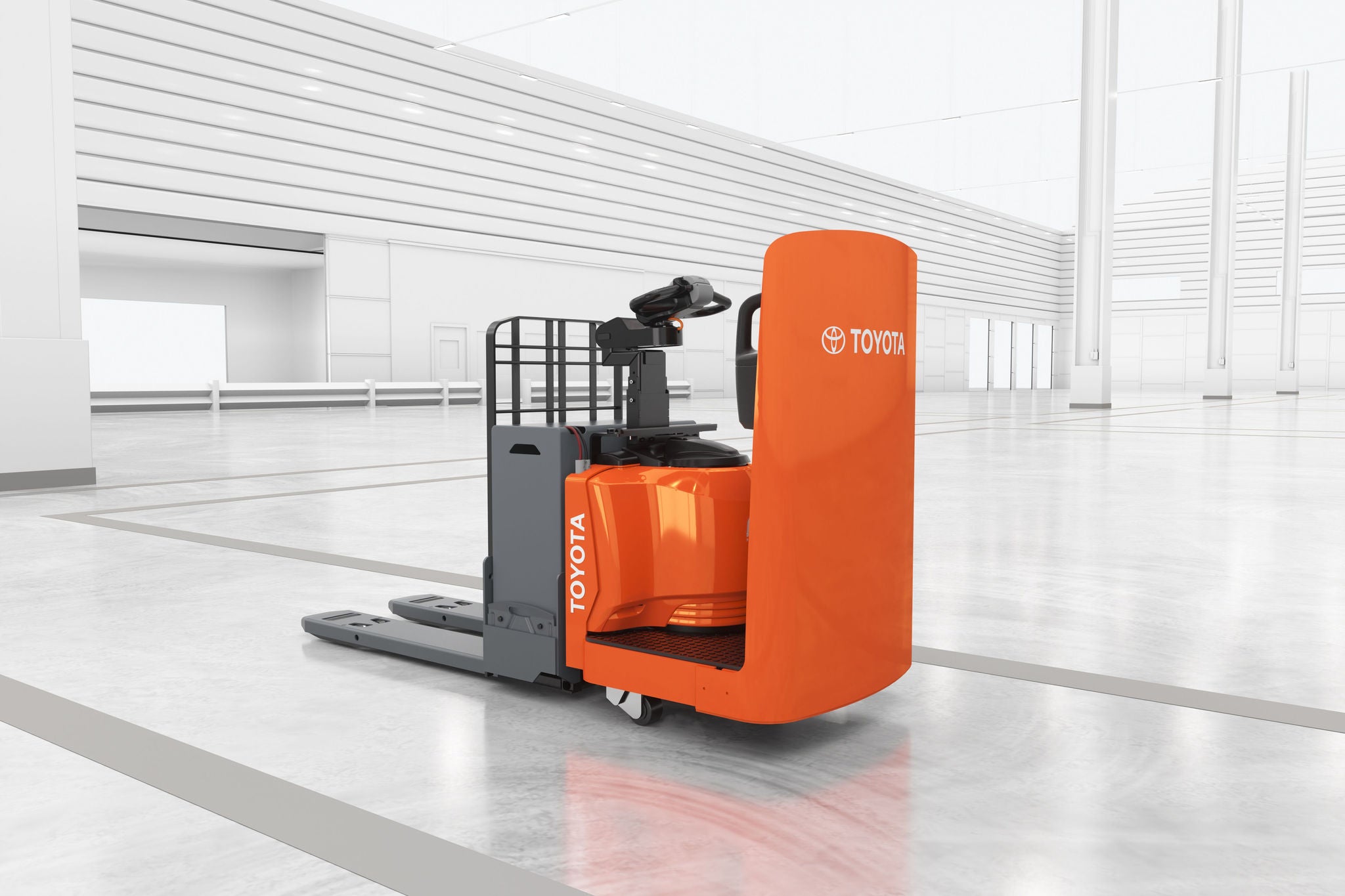

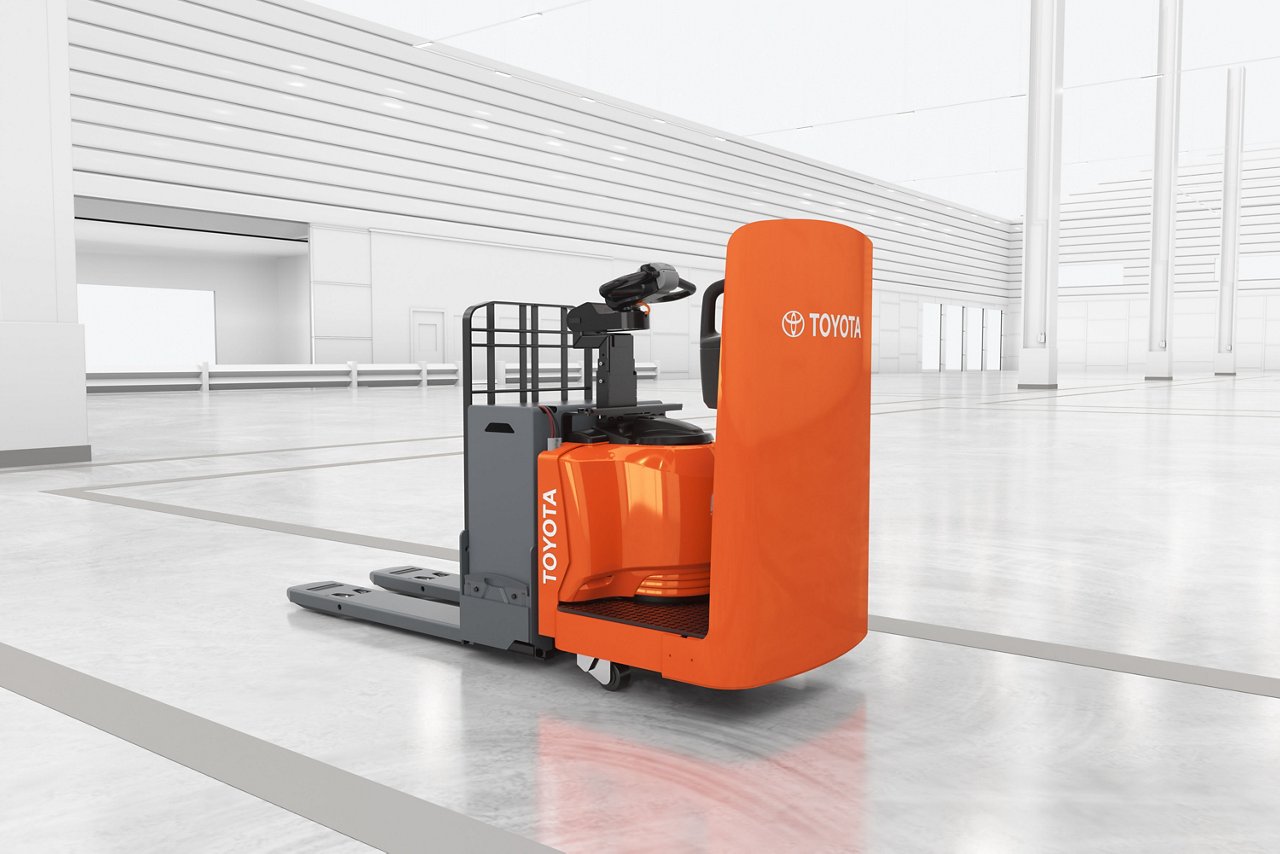

side-entry end rider sitting in the middle of a warehouse

Performance

Built to Perform

Having to keep up with the demands of your business means you need to maximize your uptime. Toyota’s Side-Entry End Rider does just that. Electric disc brakes and regenerative braking increase your uptime with longer-lasting parts and efficient operations to reduce energy costs.

Powered by Lithium-ion

Powering You Toward a Sustainable Future

At Toyota, we understand how important it is to keep your operation running at peak performance. When utilizing electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation forward, year after year. Enter Toyota’s Lithium-ion batteries. Utilizing a patented design and electrolyte technology to increase your productivity, you’ll never have to worry about losing voltage or performance. You can rely on Toyota’s knowledgeable and dedicated team to support your energy needs.

Side-Entry End Rider Features

Having to keep up with the demands of your business means you need to maximize your uptime. Toyota’s Side-Entry End Rider does just that. Built with an AC drive motor to provide efficient, low-maintenance operation and powerful performance. Electric disc brakes and regenerative plugging increase your uptime with longer-lasting parts and efficient operations to reduce energy costs.

Toyota’s Side-Entry End Rider is equipped with power steering, and operator backrest, and a soft cushioned floor mat to keep your employees comfortable. Storage trays, optional power hook-ups, and accessory bars let you customize this end rider to suit your application and operators.

Compare Models

Toyota Forklifts

Compare forklifts similar to the Side-Entry End Rider.

This Product

Main product
Side-Entry End Rider

Options / Accessories

Popular Side-Entry End Rider Accessories

Make the most of your Side-Entry End Rider by considering additional options and accessories. A Toyota Forklift can be designed to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest challenges.

Multifunction Control Handle

The multifunction control handle allows the operator to conveniently and quickly keep one hand on the wheel while the other can control travel, lifting, lowering, and horn functions.

close up image of a multifunction control handle that allows you to perform multiple functions at one time with one hand

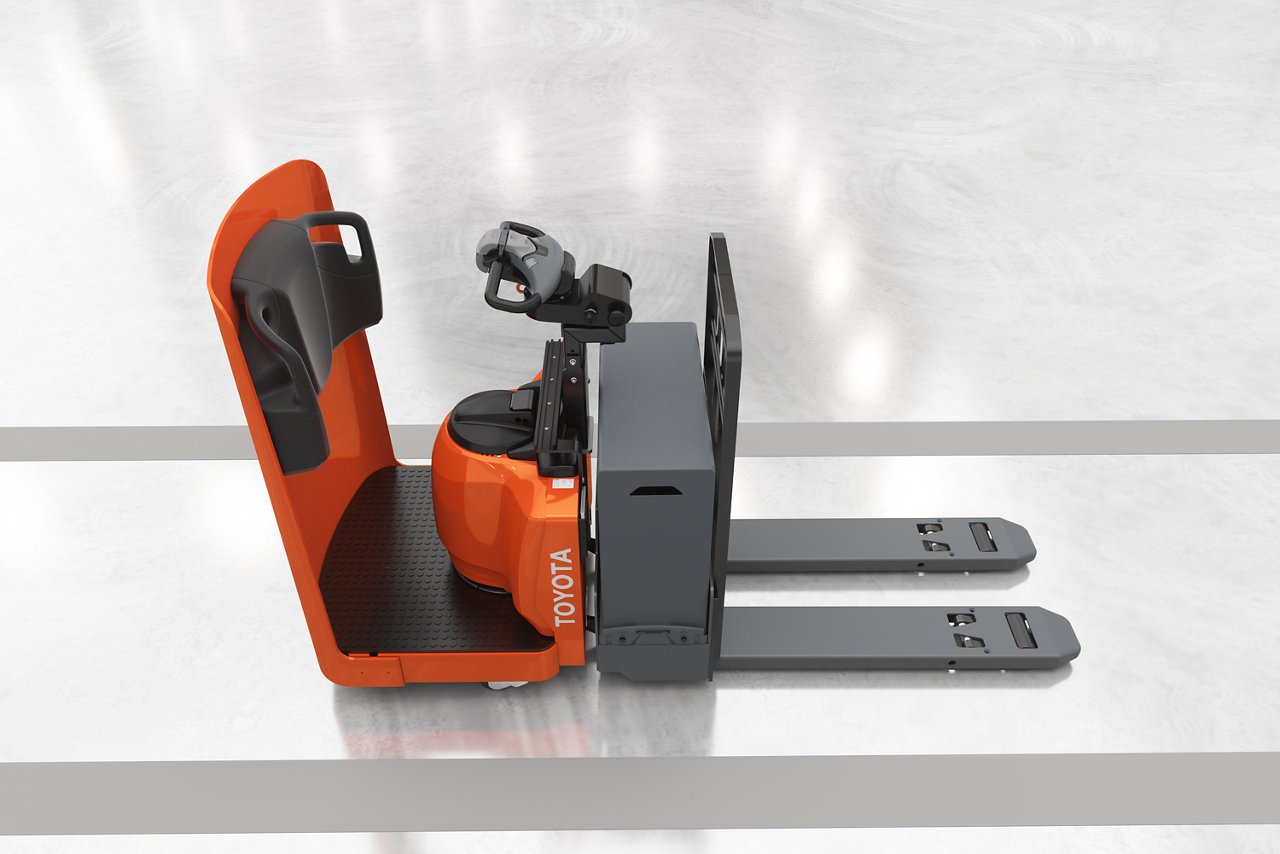

Single-Tier Accessory Bar

This provides a mounting point for a variety of factory-installed options.

An accessory bar on the forklift that provides a mounting point for a variety of factory-installed options

Battery Mounted Storage Tray

The storage tray provides operators with a convenient place to store everyday items, and it is secured to the top of the battery with heavy duty magnets.
