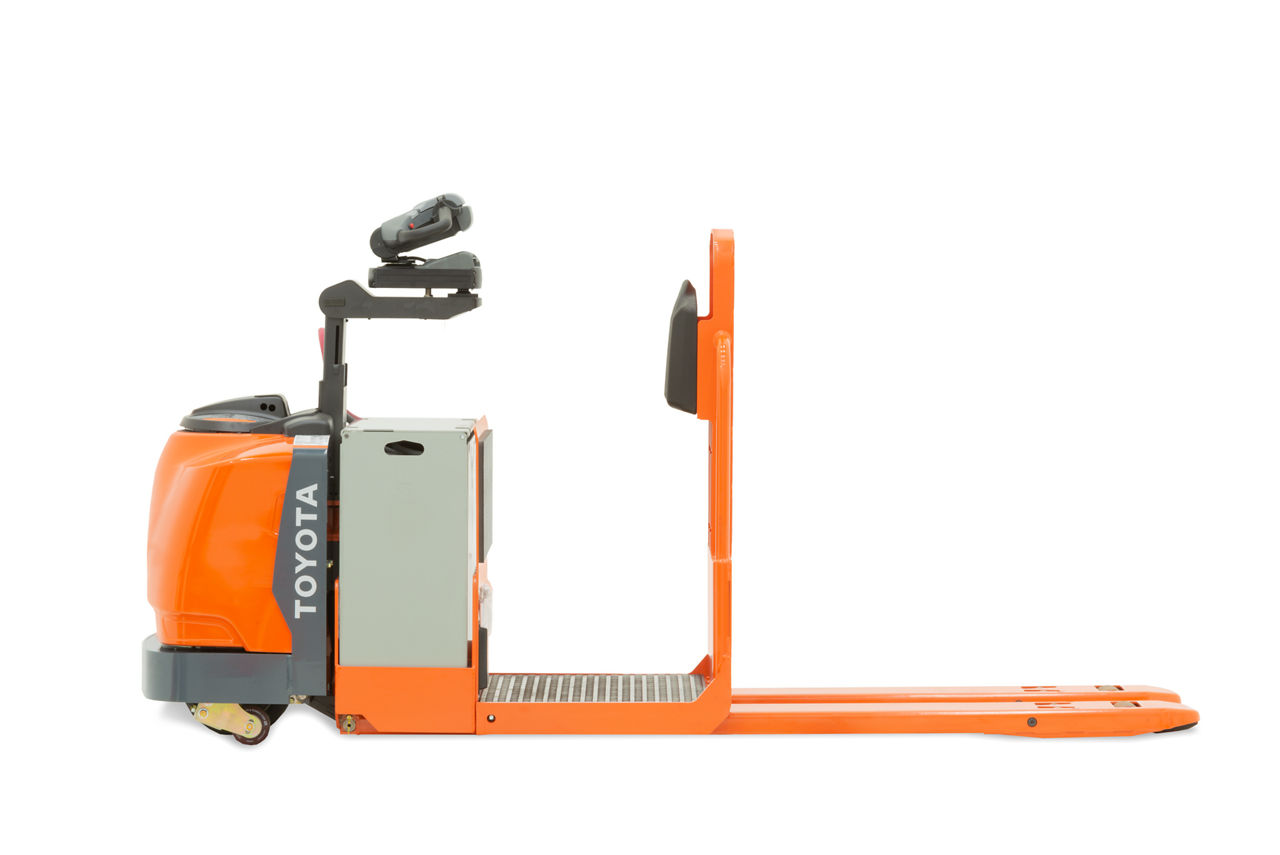

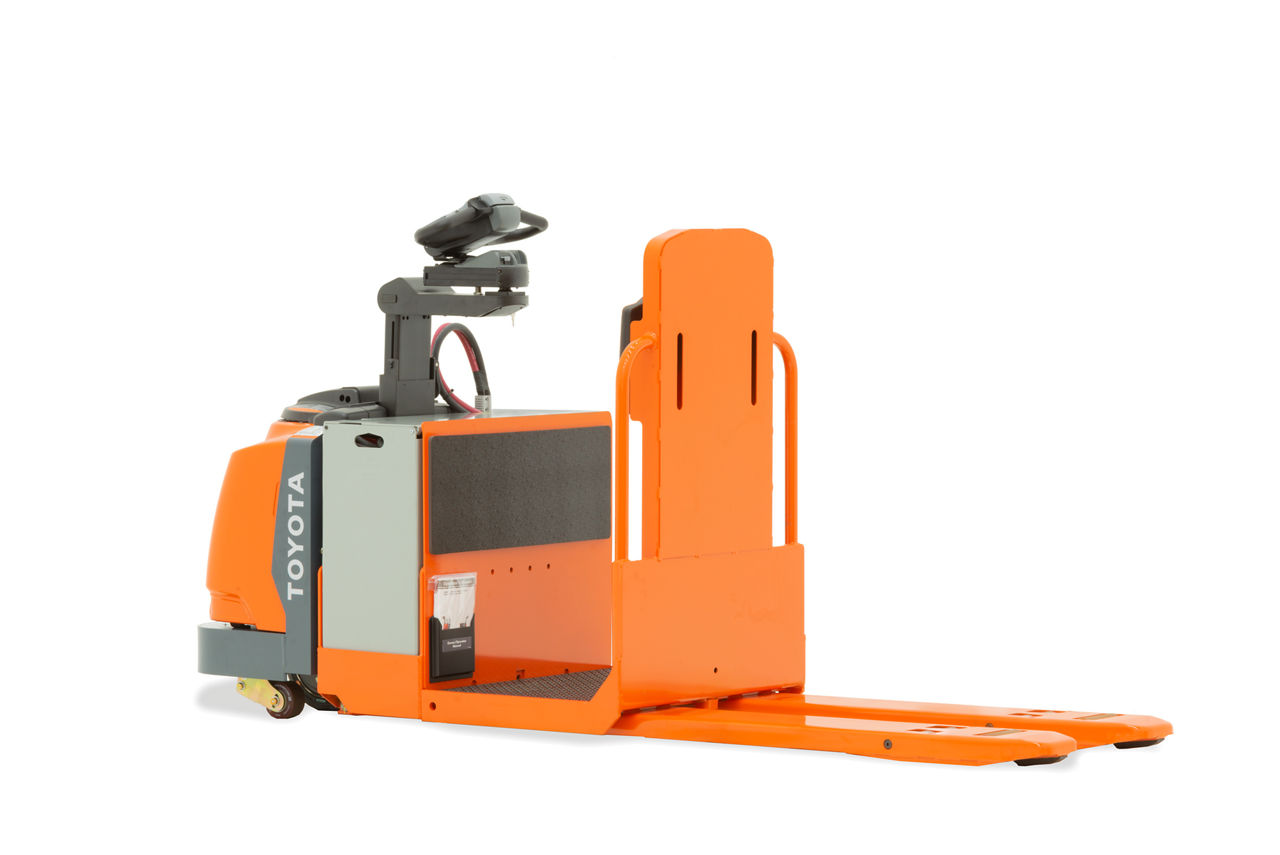

Center-Controlled Rider Pallet Jack

The Toyota Center-Controlled Rider Pallet Jack is easy to maneuver and quick to respond to commands. The motorized pallet jack, ideal for longer runs, provides a comfortable operator compartment. Doubling as a ground-level order picker, the Center-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center.

Special Features
  • 6,000 – 8,000 lb. Capacity on Level Surfaces
  • Regenerative Breaking
  • AC Drive Motor

Specs

Center-Controlled Rider Pallet Jack Specifications

Learn more about the current lineup of Toyota Center-Controlled Rider Pallet Jack models that are available for purchase.

6,000 - 8,000

Capacity on Level Surfaces

(lbs.)

6.5

Travel Speed Full Load

(MPH)

24

Voltage

(V)

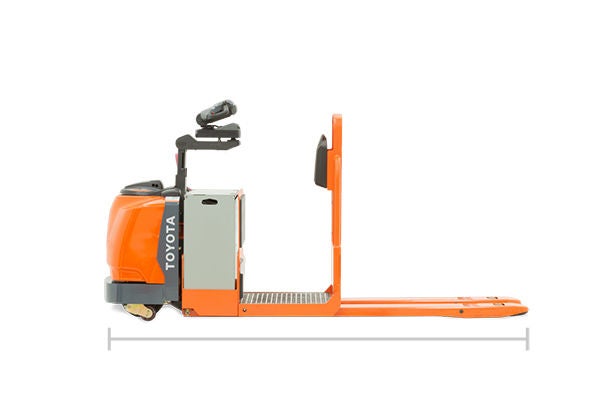

Overall Length

90.3 - 155.7 in.

2022-Rider-Length-Controlled-Center-

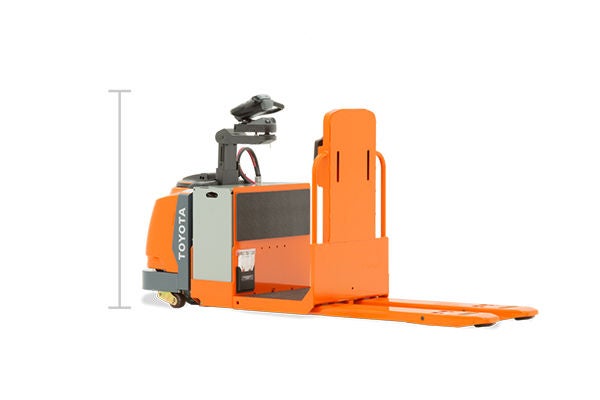

Height (Extended Handle)

56 in.

 Rider Height Control Center 2022

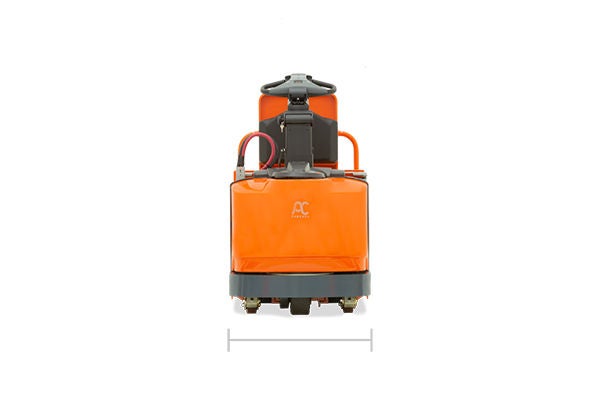

Overall Width

32.5 in.

 Center Control Rider Width 2022

Models for Center-Controlled Rider Pallet Jack

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Gradeability Full Load (%) Basic Right Angle Stack (in.) Minimum Aisle Width (in.)
8HBC30 6,000 on Level Surfaces 6.5 10 98.8 105
8HBC40 7,000 on Level Surfaces 5 10 142 148

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

Long Distance Rider

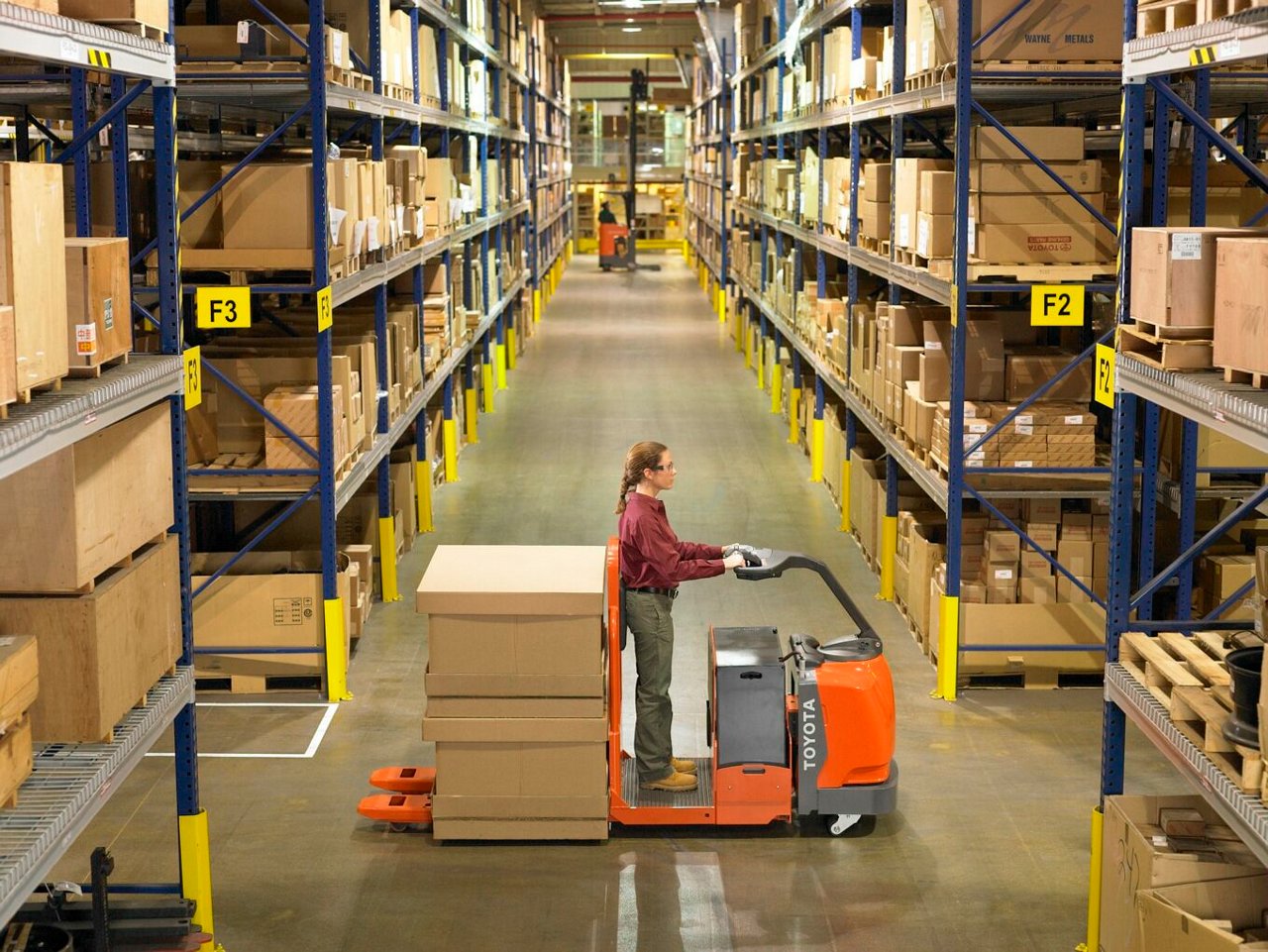

Toyota’s Center-Controlled Rider Pallet Jack makes cross-warehouse hauling fast and efficient. With an AC Drive Motor and features like regenerative braking, the Toyota Center-Controlled Rider Pallet Jack gives operators complete command of their ground game and a healthy boost in productivity shift after shift. With comfortable operator compartments for long days, up to 8,000 lbs. of carrying capability on level surfaces, and up to 144” fork length options for order picking, this piece of equipment is ready to work for you.

Center-Controlled Rider Pallet Jack Features

Toyota’s Center-Controlled Rider Pallet Jack is designed with operator ergonomics top of mind to make work comfortable, productive, and efficient, especially while working long shifts. These features include:



  • Multifunction Control Handle

  • Dual Thumb Wheels

  • Intuitively positioned lift/lower and horn buttons

  • Low-Effort control handle

  • Padded backrest and knee pad

Toyota’s Center-Controlled Rider Pallet Jack has a glance-and-go display that summarizes key information quickly. Programmable Performance Parameters can be customized through the digital display to adjust for a variety of job applications. This pallet jack comes with self-diagnostics to simplify troubleshooting and reduce downtime for repairs.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Center-Controlled Rider Pallet Jack.

This Product

Main product
Center-Controlled Rider Pallet Jack

Reviews
There are no reviews on this product at this time

Options / Accessories

Popular Center-Controlled Rider Pallet Jack Accessories

Make the most of your Center-Controlled Rider Pallet Jack by considering additional options and accessories. Toyota products can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best equipment that can help you with your company’s biggest material handling challenges.

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.


Various Fork Lengths

This option allows a custom optional fork length to be ordered when needed for a customer application where the standard available fork lengths are not what the customer needs.
Public JPG Reach Truck Side Stance RF1 BH1X35 Close Up Baselegs Forks 2

Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).
