End-Controlled Rider Pallet Jack

The Toyota End-Controlled Rider Pallet Jack is responsive and easy to maneuver. The End-Controlled Rider, ideal for longer runs, helps you move products efficiently throughout your warehouse. Doubling as a ground-level order picker, the End-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center.

Special Features
  • 6,000-8,000 lb. Capacity on Level Surfaces
  • 144 in. Fork Options
  • AC Drive Motor


End-Controlled Rider Pallet Jack Specifications

Learn more about the current Toyota End-Controlled Rider Pallet Jack models that are available for purchase.

6,000 - 8,000

Capacity on Level Surfaces



Travel Speed Full Load

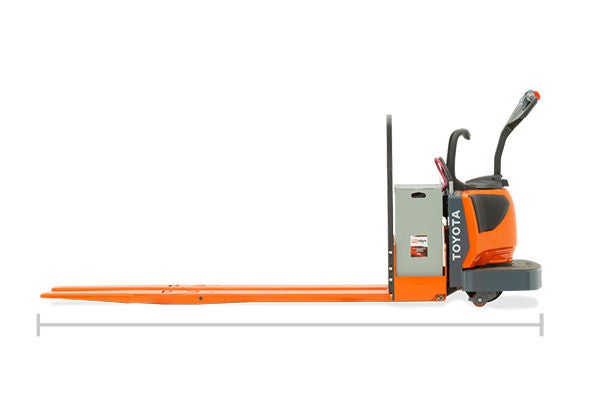

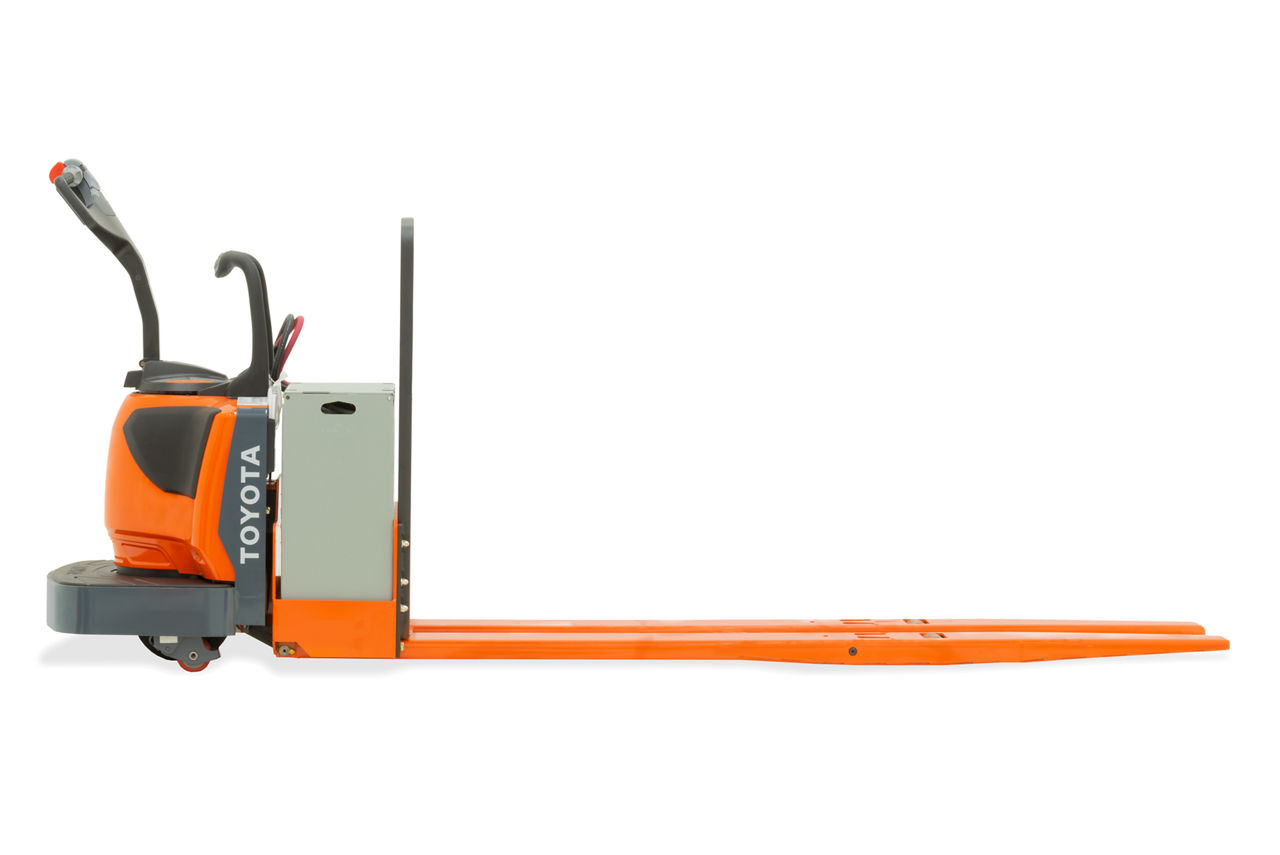

Overall Length

76.4 - 186.8 in.

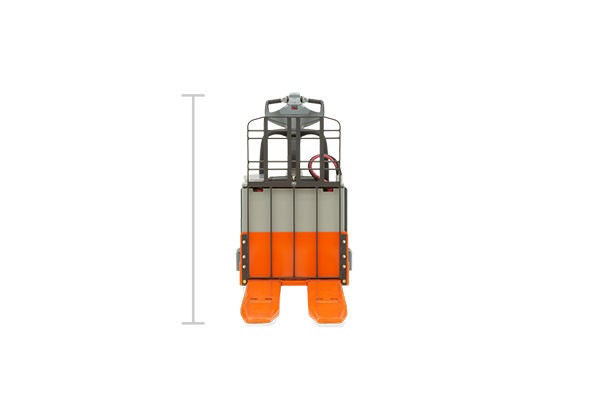

Height (Extended Handle)

56.7 in.

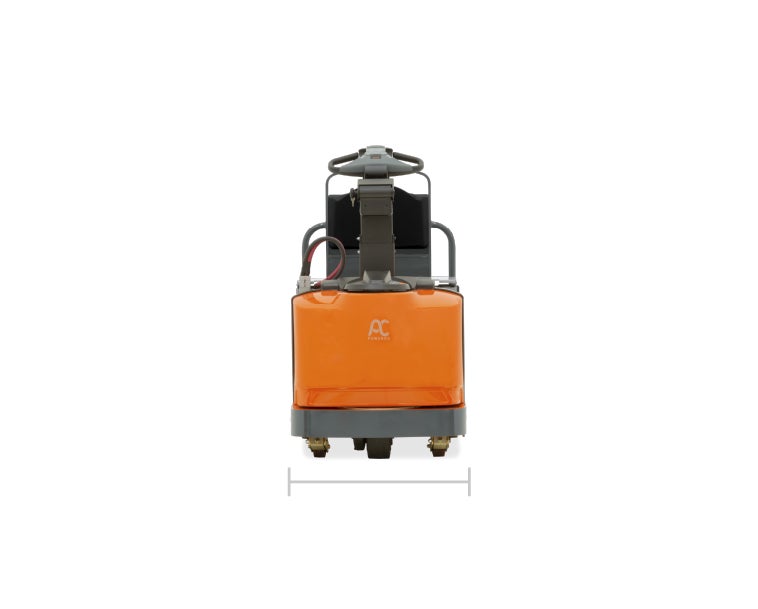

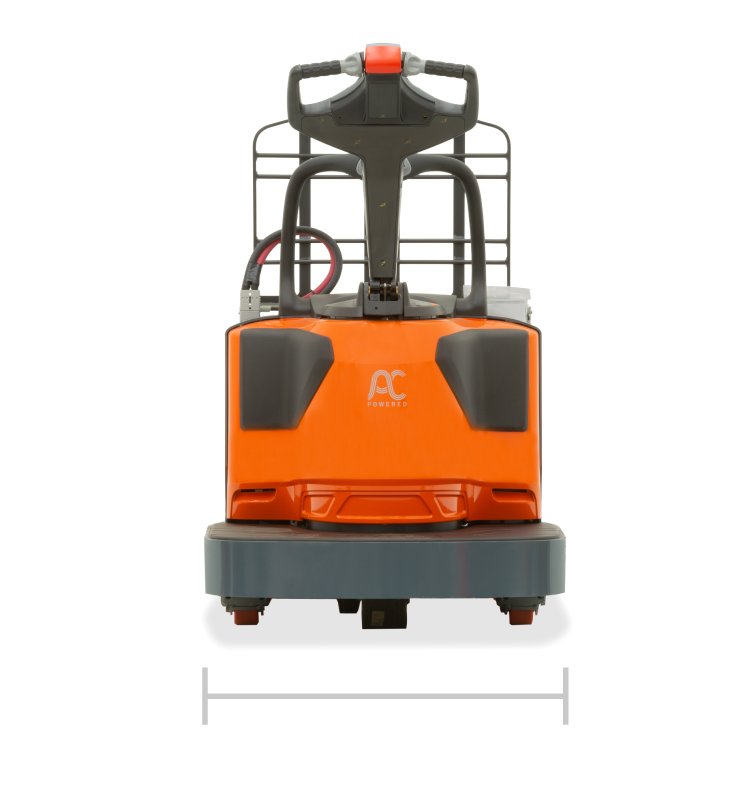

Overall Width

36 in.

Models for End-Controlled Rider Pallet Jack

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Gradeability Full Load (%) Basic Right Angle Stack (in.) Minimum Aisle Width (in.)

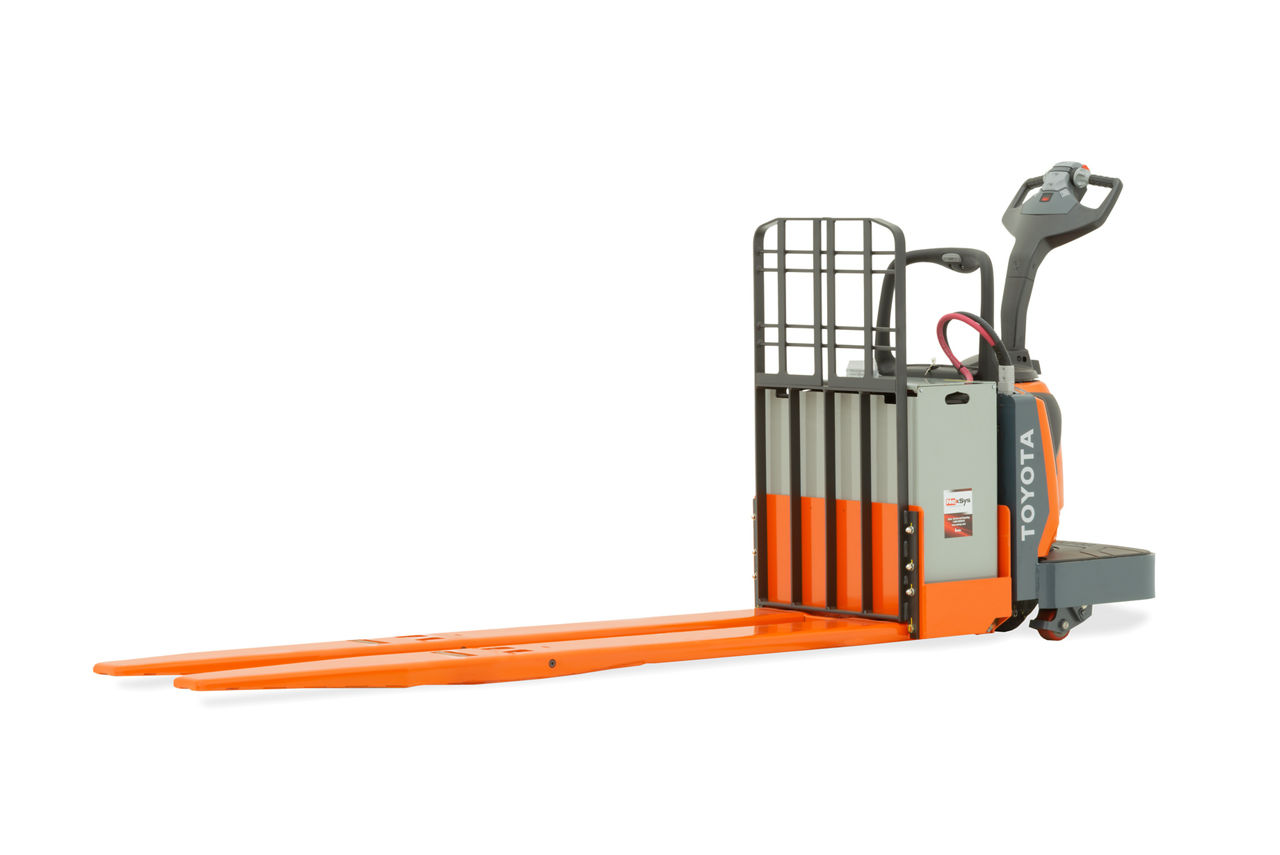

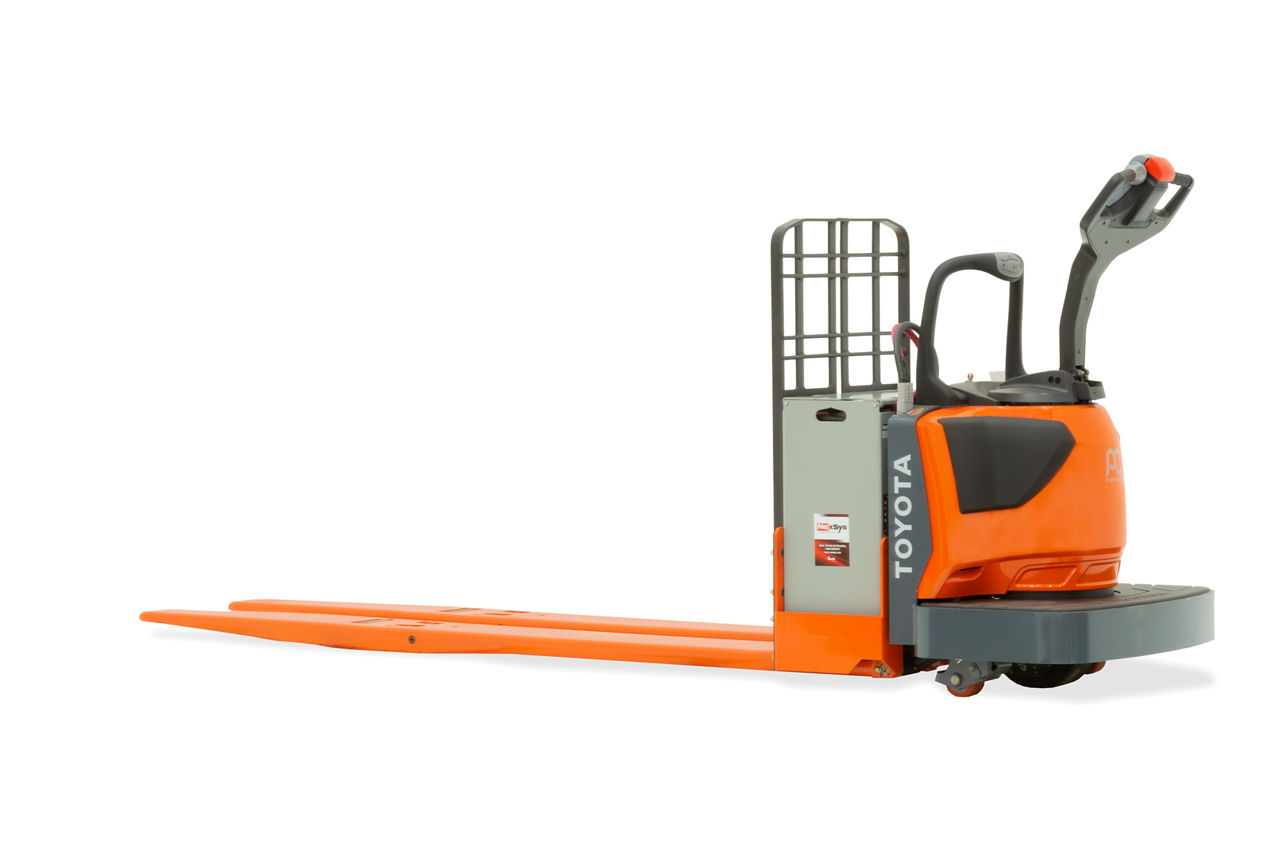

8HBE30 6,000 on Level Surfaces 6.5 10 85.4 92
8HBE40 8,000 on Level Surfaces 6.2 10 129.3 137

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

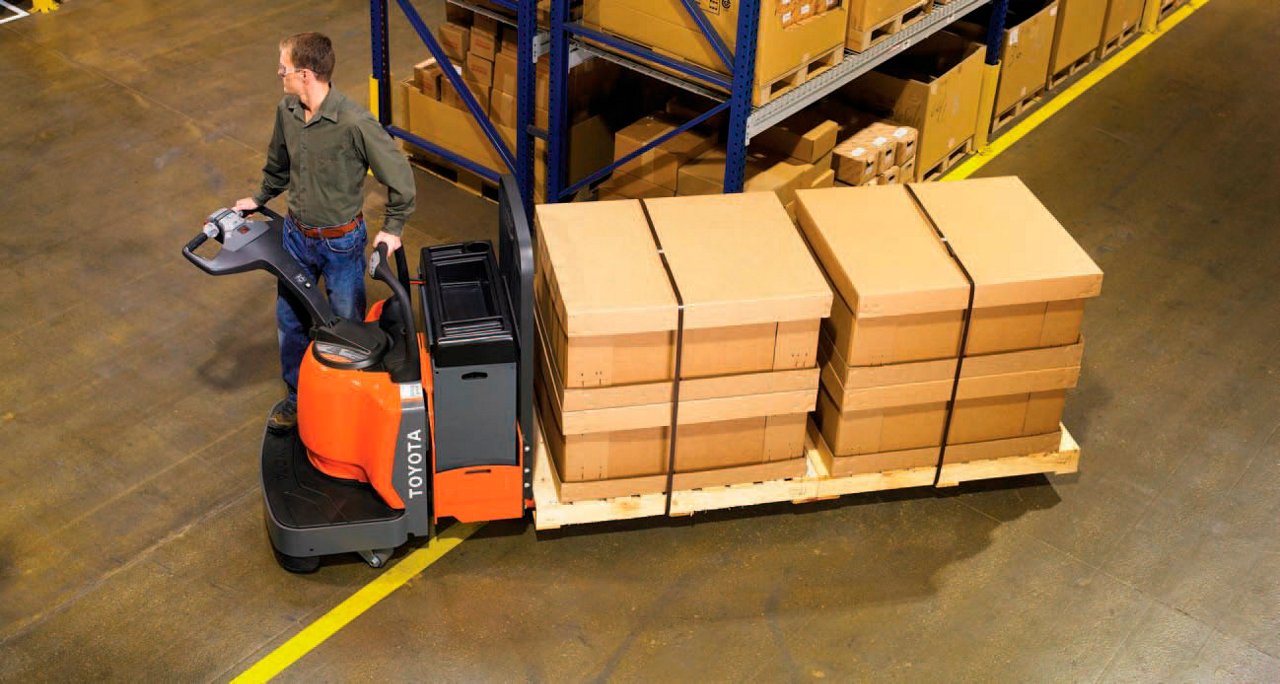

Goes the Distance

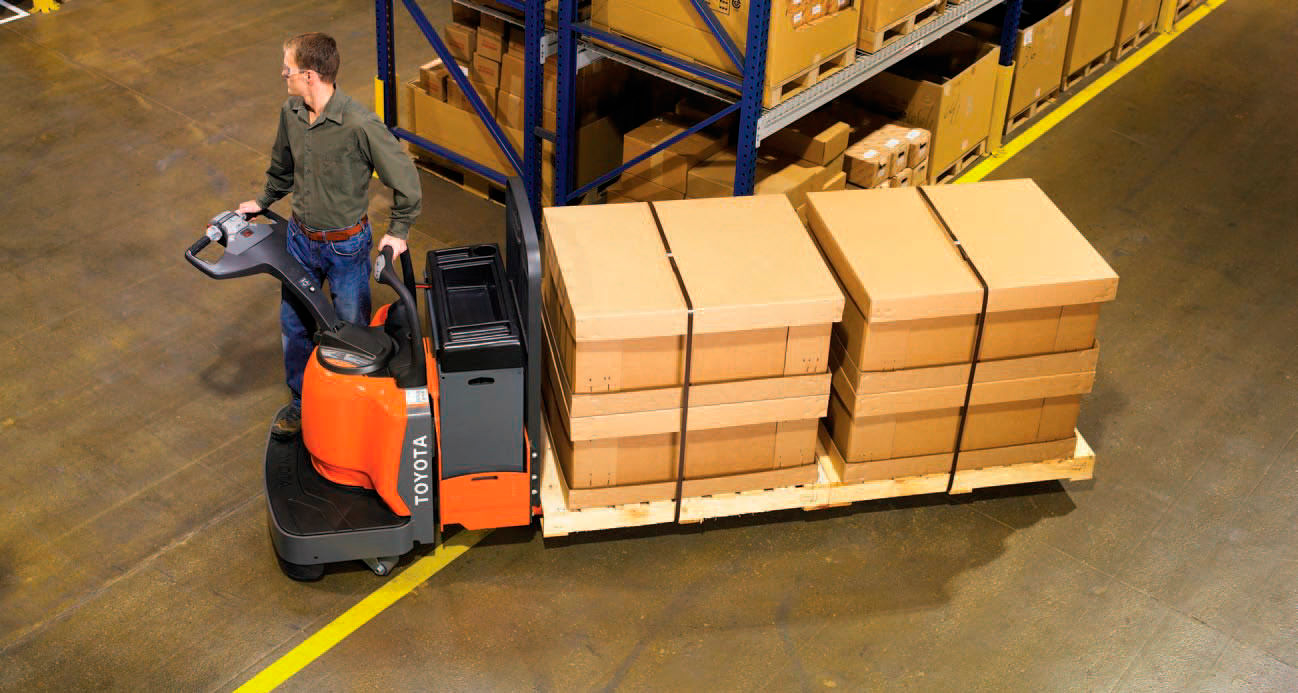

From one end of the warehouse to the other, Toyota’s End-Controlled Rider Pallet Jack delivers. You can maneuver loads easily and make long runs efficiently. The End-Controlled Rider also handles multiple stops comfortably. The operator platform at the end of the pallet jack provides more accessible entry and exit and allows this piece of equipment to excel as a low-level order picker, too.

End-Controlled Rider Pallet Jack Features

Toyota’s End-Controlled Rider Pallet Jack box rail fork construction provides torsional rigidity and maximum strength. Dual lift cylinders provide efficient hydraulic for smooth, effortless lifting to reduce component wear. These features combined with welded construction and steel components keep your operation moving in tough applications.

Toyota’s End-Controlled Rider Pallet Jack offers various solutions for extreme climates, including galvanized options, cold conditioning packages, and ergonomic features to accommodate heavy gloves. The cold conditioning package includes cold storage-specific oil, greaseable steer bearing, linkage bushings, and stainless steel linkage pins for use in harsh environments.

The multifunction control handle with ergonomically positioned handgrips, dual thumbwheels, and lift, lower, and horn buttons for simplified operation of all controls with either hand is a benefit of Toyota’s End-Controlled Rider Pallet Jack. The soft-cushioned rider platform and cushioned handrail offer convenient control during high-speed travel. When it’s time to exit the equipment, the low step height eases frequent entry and exit during floor-level order picking for operator comfort.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the End-Controlled Rider Pallet Jack.

This Product

Main product

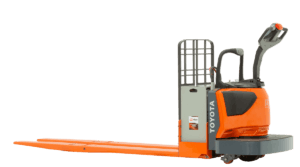

End-Controlled Rider Pallet Jack

There are no reviews on this product at this time

Options / Accessories

Popular End-Controlled Rider Pallet Jack Accessories

Make the most of your End-Controlled Rider Pallet Jack by considering additional options and accessories. Toyota products can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best equipment that can help you with your company’s biggest material handling challenges.

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.

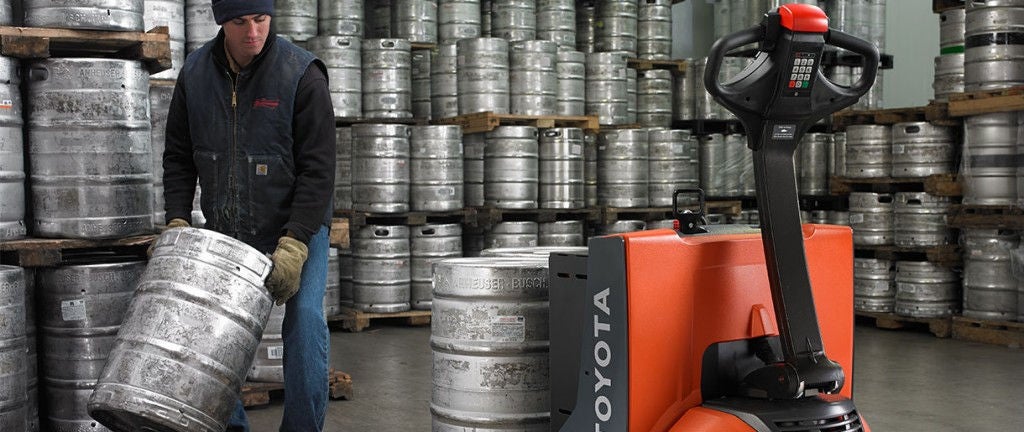

Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).

Packaging set for cold storage

Load Backrest Extension

The load backrest extension is mounted to the carriage and tilts with the carriage.

High Capacity Reach Truck Forks Close Base Legs
