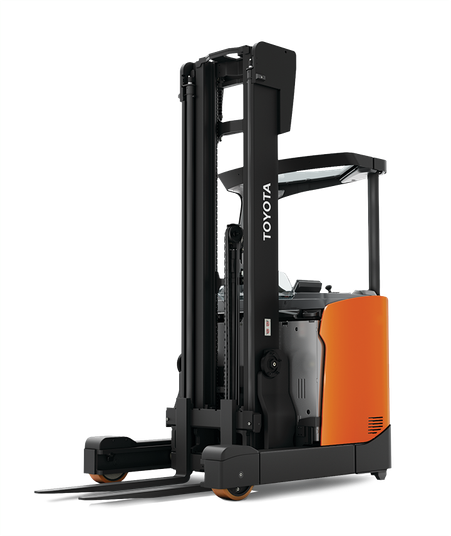

Moving Mast Reach Truck

With a max lift height of 512 inches, Toyota’s Moving Mast Reach Truck offers clear and precise control for fast and smooth handling shift after shift. With a unique optional tilting cab system, your operators not only have a clear view of their load, which can reduce the risk of neck and shoulder straining at high-level applications, but it allows for faster and more accurate fork positioning. With the trend of warehouses continuing to build upward due to space constraints, the Moving Mast Reach Truck is designed to deliver the perfect fit for your operation’s needs.

Special Features
  • Up to 511.8 in. Maximum Lift Height
  • Tilting Cab Option
  • Interactive Touchscreen Display


Moving Mast Reach Truck Specifications

Learn more about the current Toyota Moving Mast Reach Truck models that are available for purchase.


Lifting Capacity



Lift Height



Electrical System

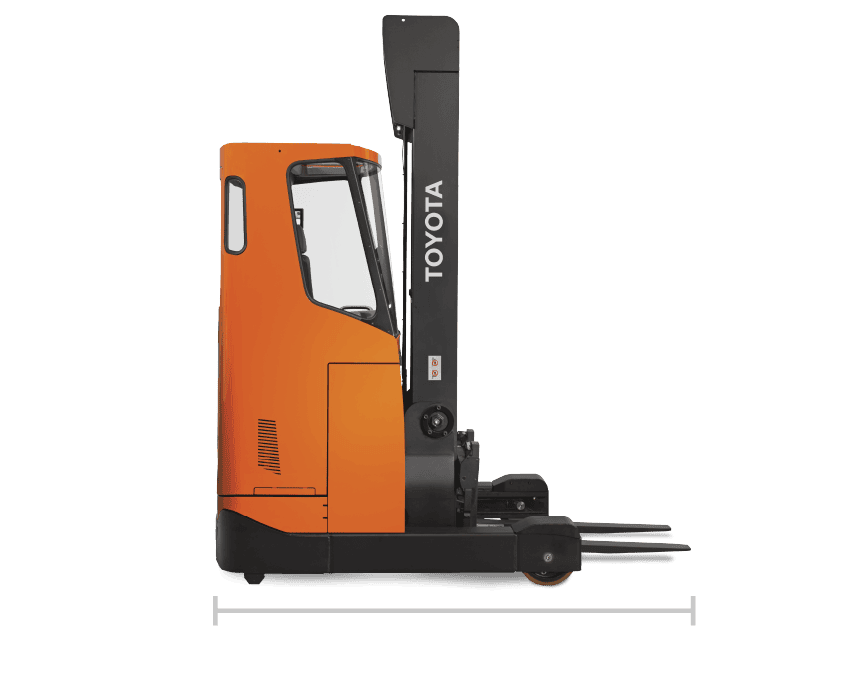

Length to Forkface

49.7 - 62 in.

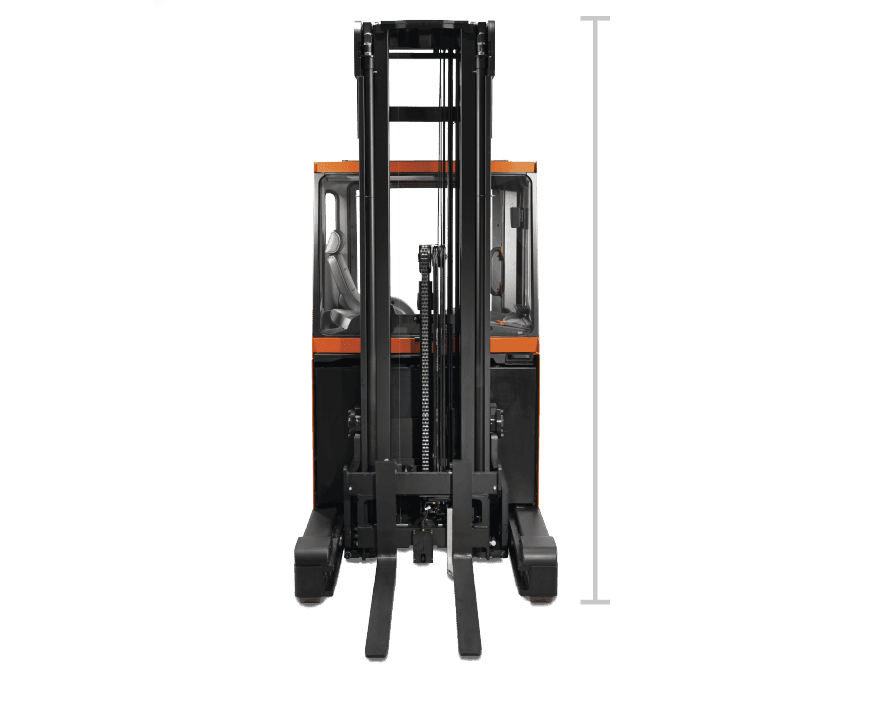

Mast Lowered Height

166.2 - 195.4 in.

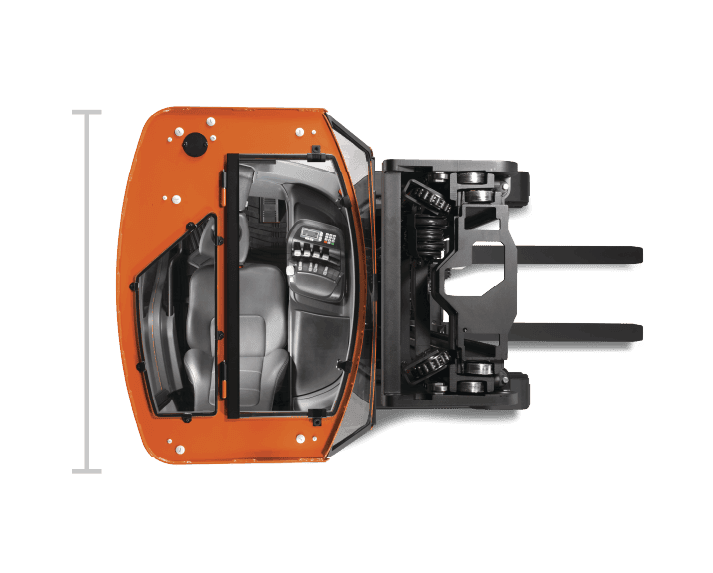

Overall Truck Width

50 - 65.7 in.

Models for Moving Mast Reach Truck

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Max Lift Height (in.)
RRE140H 3,000 6.4 74.8 10 433.1
RRE160H 3,500 6.2 74.8 10 433.1
RRE180H 3,900 6.8 90.6 10 511.8
RRE200H 4,400 6.8 84.6 10 511.8
RRE250H 5,500 6.8 72.8 7 511.8

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

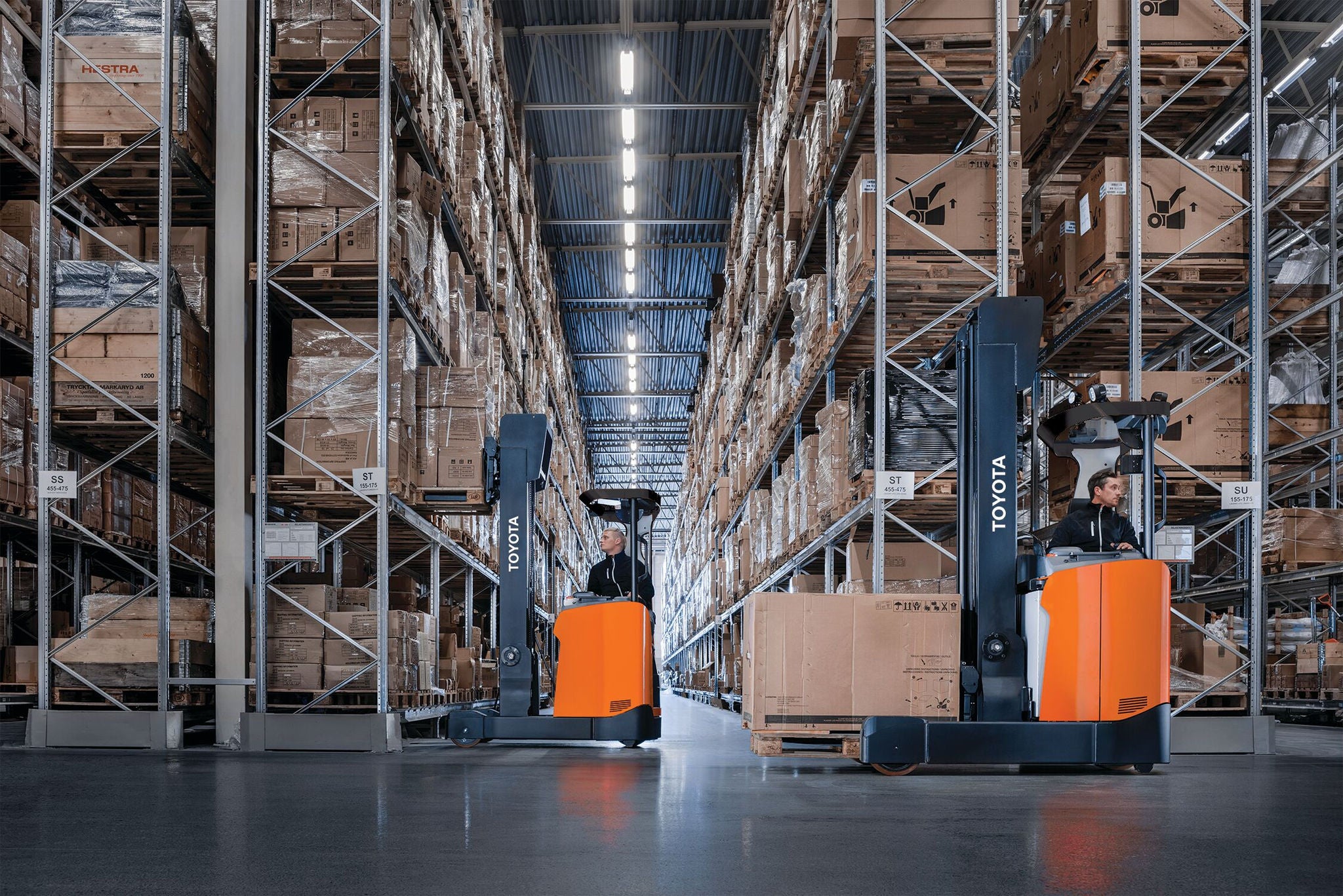

Moving Mast Reach Truck_Application_11


Moving On Up

Engineered for performance at height, the optional tilting cab, combined with the optional transparent roof and unique mast design, offers exceptional load visibility. The programmable tilting cab system suits each operator’s preferences, increasing comfort and boosting productivity. Operators will love the fully adjustable cabin, featuring an adjustable seat, control handle, armrest, steering console, and more. The cabin floor quickly adjusts to improve operator comfort and support. A new optional air-suspension seat ensures operator comfort for all day long.

Moving Mast Reach Truck Features

Designed with the operator in mind, the transparent roof, and unique mast design offer the operator superb upward visibility with minimal load view obstruction. The unique optional tilting operator compartment reduces the risk of strain for the operator in repetitive high-level applications. It improves the visibility of the load – allowing the operator to see the fork tips when elevated without moving their head. The optional fork laser enhances this even further by helping to pick pallets faster while minimizing damage.

Each Toyota Moving Mast Reach Truck comes standard with an intuitive touchscreen display that includes optional functions like lift height and warnings for overload. Features include:


  • Driver Control

  • Automatic speed control, fork leveling, and centering.

  • Optional Lift Mode

  • Driver will get continuous updates on lift height, load weight indicator, and fork alignment


Customizable performance and operating characteristics are available to meet your operation’s needs.

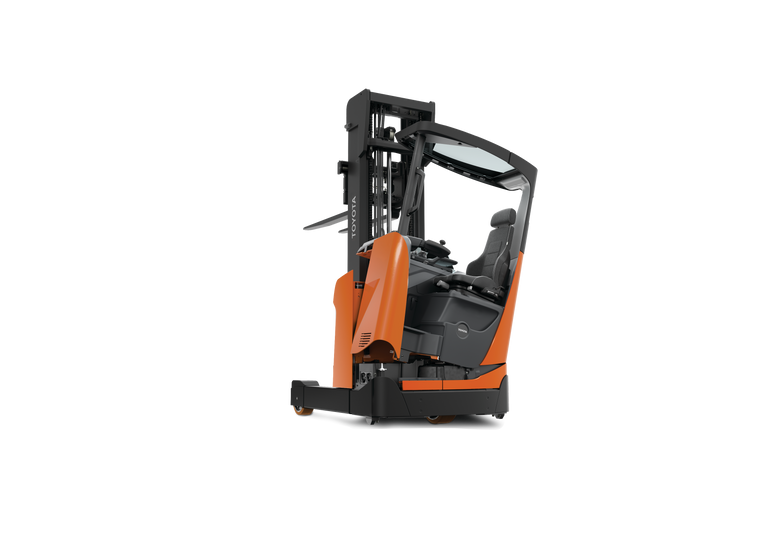

The Moving Mast Reach Truck’s unique tilting cab is helpful for operators to be more precise and an ergonomic solution for challenging situations. Advantages of the tilting cab include:


  • Forward Tilt: Up to 2 Degrees

  • Backward Tilt: Up to 4 Degrees

  • Programmable to Suit Operator’s Preference


  • Reduce Risk of Operator Strain

  • Offers Clear View at Height

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Moving Mast Reach Truck.

This Product

Main product

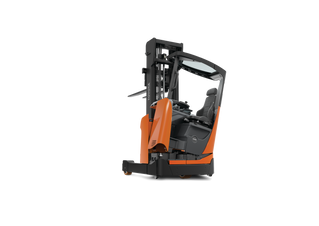

Moving Mast Reach Truck

Options / Accessories

Popular Moving Mast Reach Truck Accessories

Make the most of your Moving Mast Reach Truck by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Carriage Mounted Camera

The Carriage-Mounted Camera provides operators with an additional visual aid for positioning forks at high heights.


Multifunction Control Console

Provides a palmrest grip that moves in four directions to control hydraulic functions like a joystick.

Movable Mast Reach Controls Truck_Close Up_Multifunction

Auto Height Select

Auto Height Select provides operators up to 25 programmable lift heights, using the reach and retract control handles buttons.
