High-Capacity IC Pneumatic

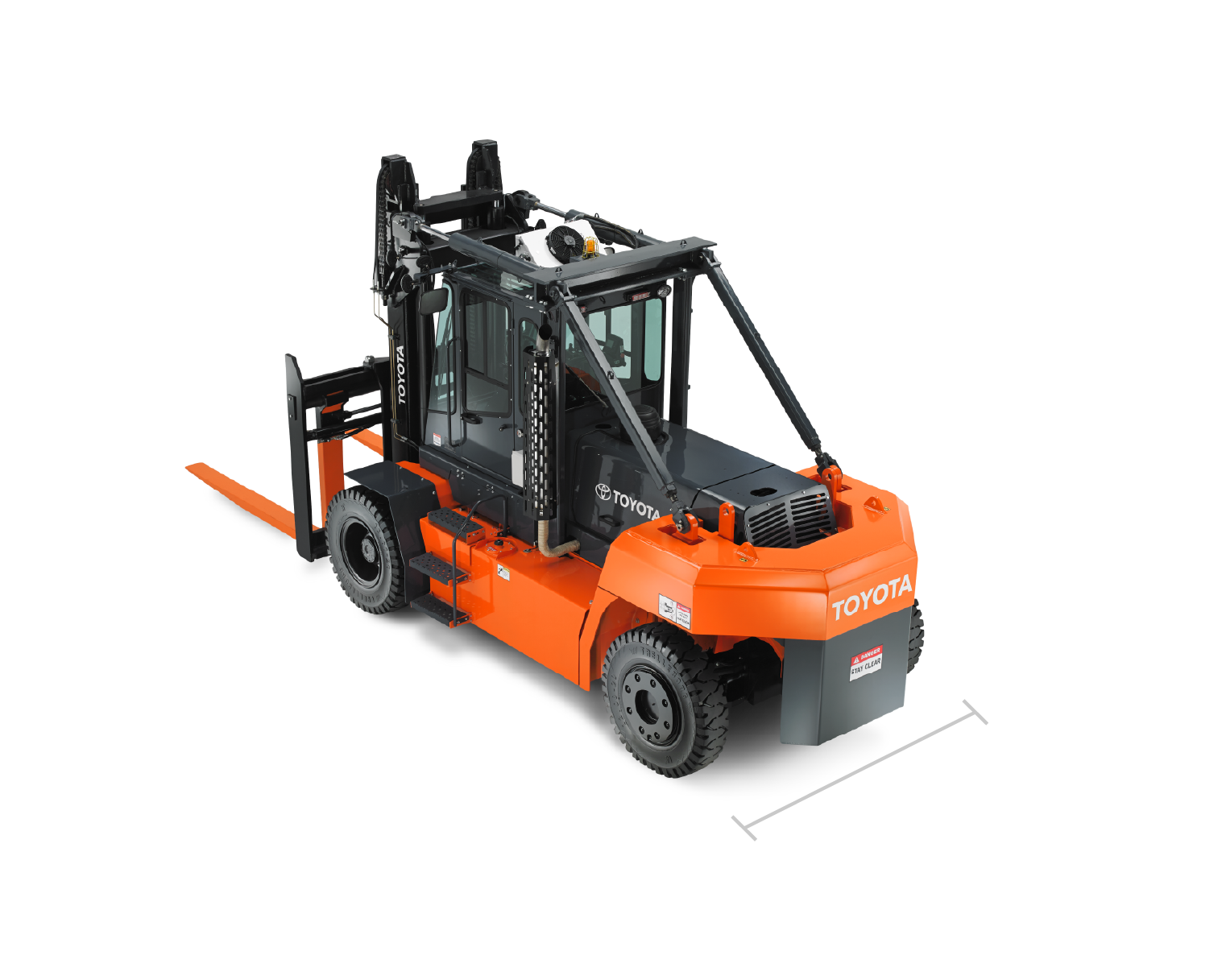

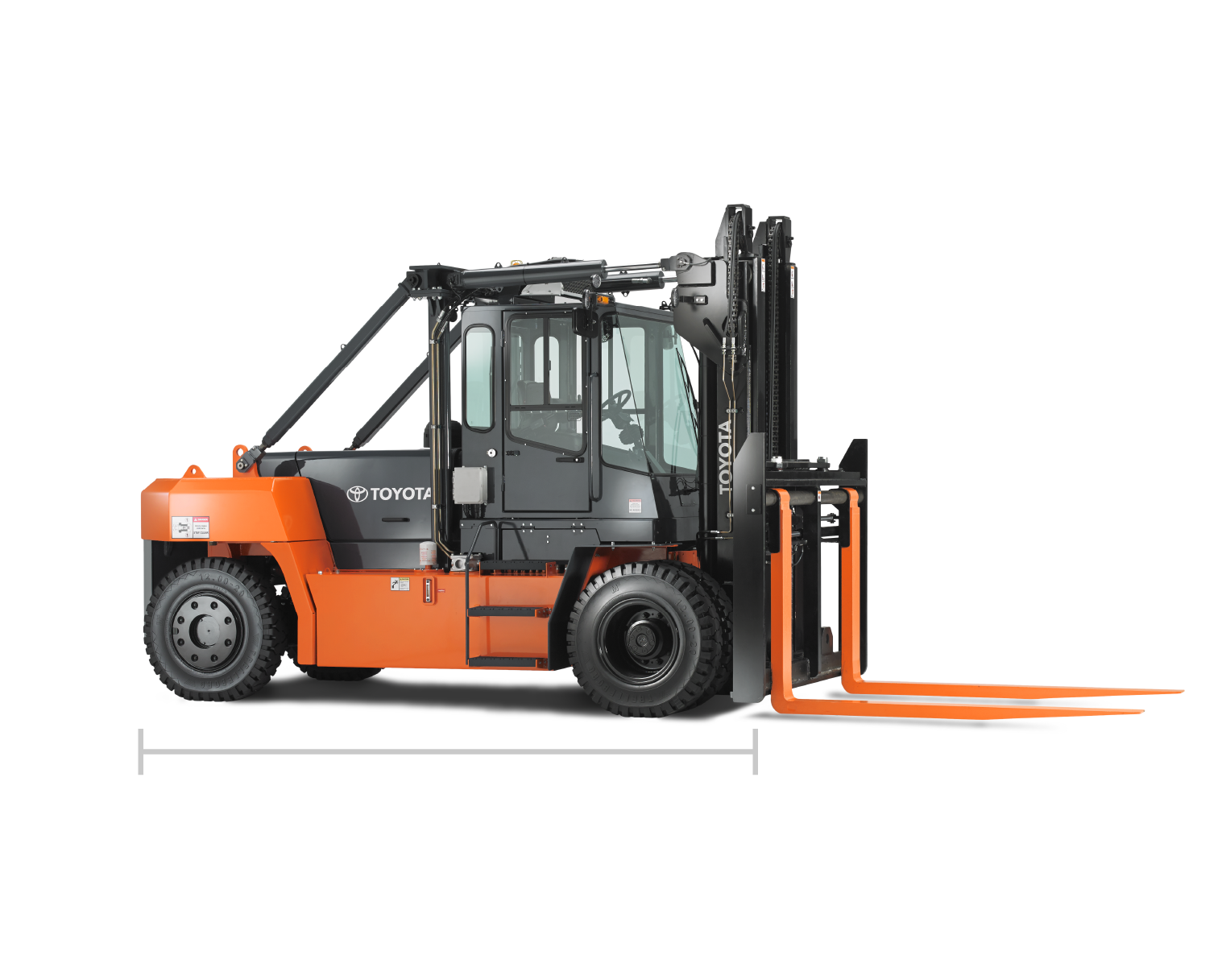

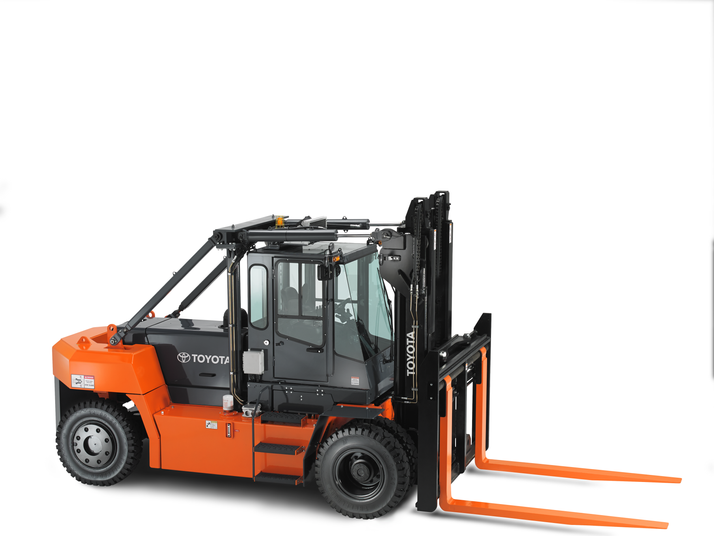

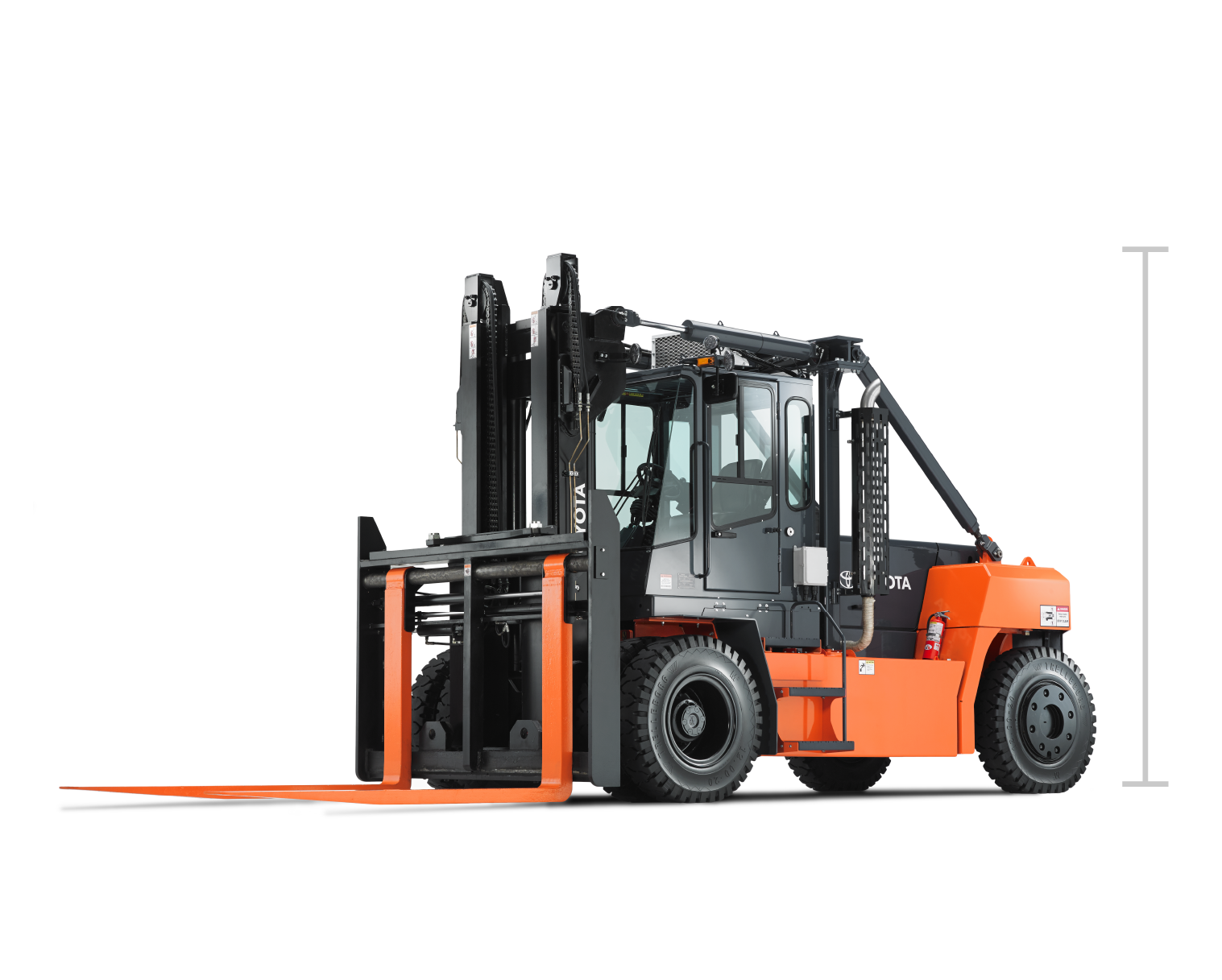

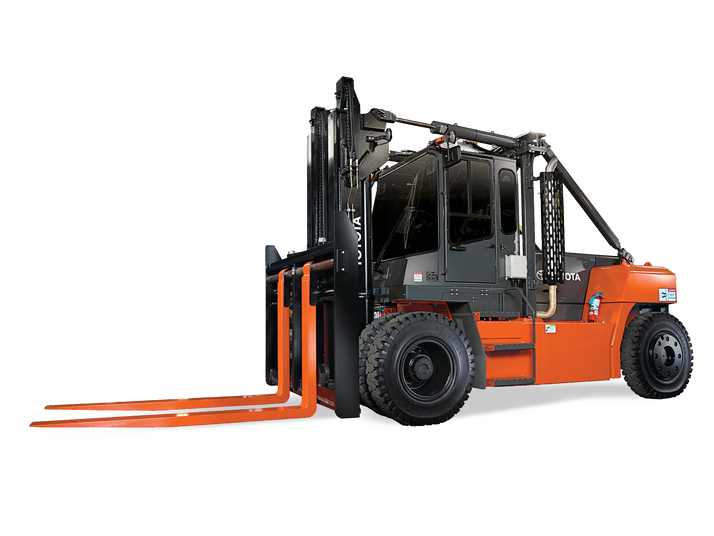

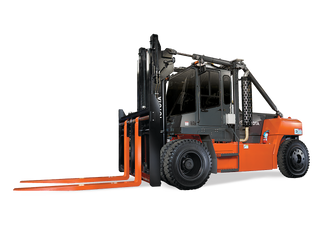

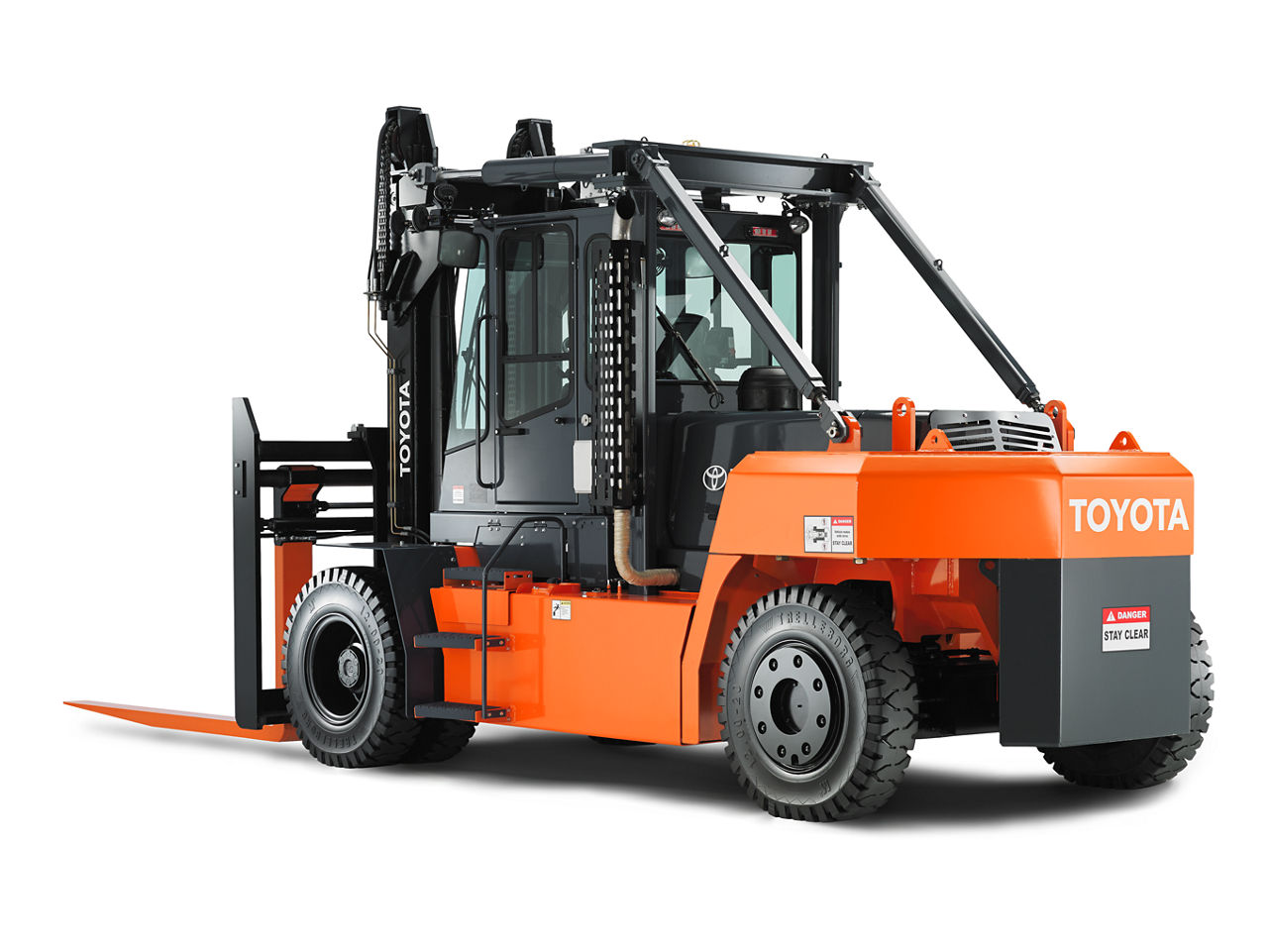

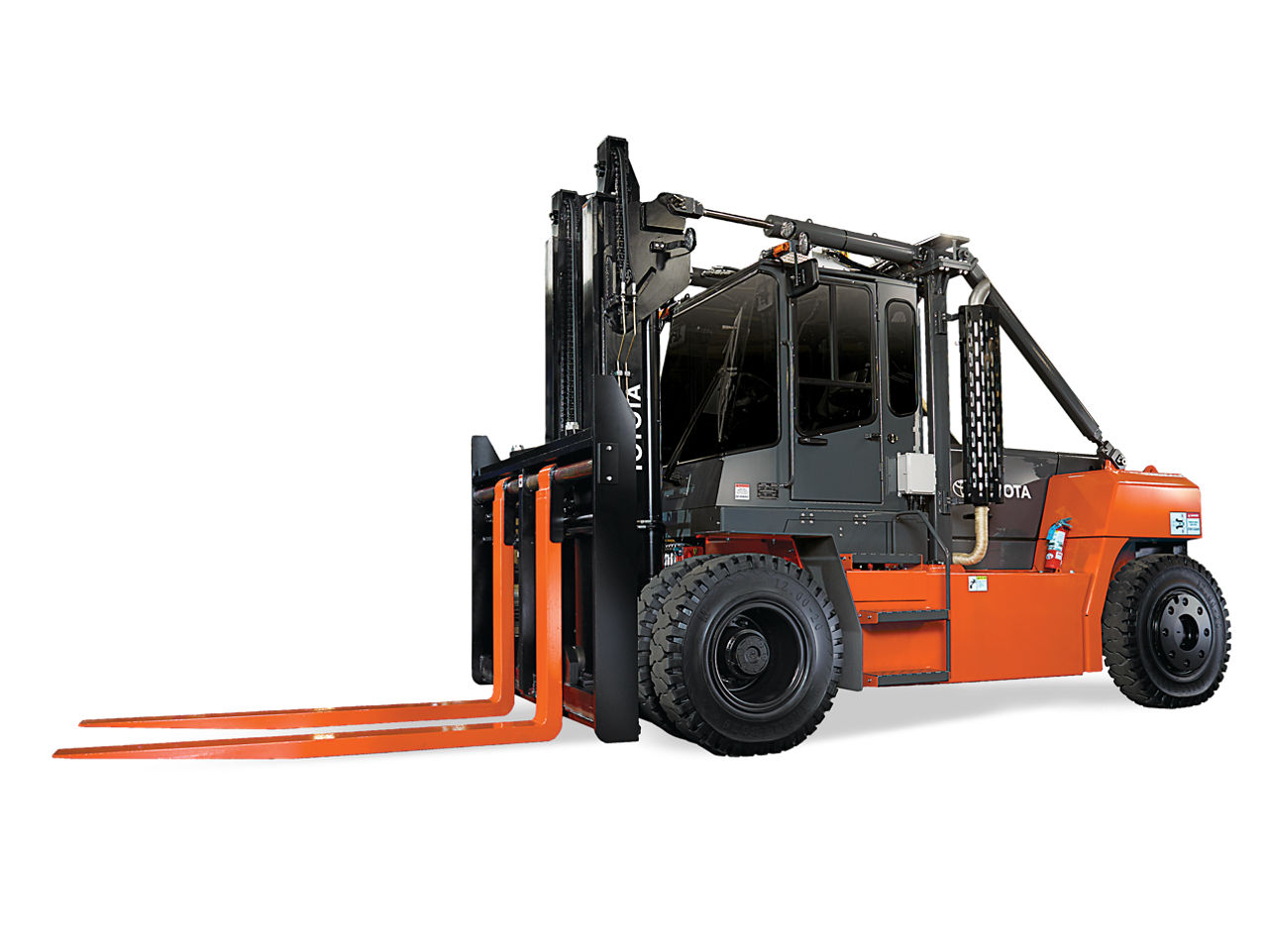

Toyota's High-Capacity IC Pneumatic Forklift is the largest forklift in Toyota's product line. With a lifting capacity to handle heavy loads up to 125,000 lbs., this large, rugged diesel forklift can handle almost any heavy load. Commonly found loading and unloading large shipping containers or on the construction site, the High-Capacity IC Pneumatic Forklift provides lifting solutions for extremely heavy industrial applications.
Models for Heavy Duty Pneumatic Diesel Forklift
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| THD10000-48 | 100,000 | 20.0 (no load) | 34.7 | 11.7 | 364 |
| THD11000-48 | 110,000 | 20.0 (no load) | 34.7 | 10.9 | 364 |
| THD12000-48 | 120,000 | 20.0 (no load) | 34.7 | 10.1 | 441 |
| THD12500-48 | 125,000 | 20.0 (no load) | 34.7 | 9.9 | 441.13 |
| THD3000-24 | 30,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 203.2 |
| THD3300-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 24 | 227 |
| THD3300S-24 | 33,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 23 | 203.2 |
| THD3600-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 22 | 237 |
| THD3600-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 20 | 242 |
| THD3600-48 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 242 |
| THD3600S-24 | 36,000 | 23 (no load) | 64.1 (standard) 128.2 (high-speed option) | 21 | 206 |
| THD3600S-36 | 36,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 206.5 |
| THD4000-48 | 40,000 | 23 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 252 |
| THD4500-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 19 | 305 |
| THD4500S-48 | 45,000 | 24.9 (no load) | 53.2 (standard) 106.4 (high-speed option) | 18 | 276.3 |
| THD5000-48 | 50,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
| THD5200-48 | 52,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 305 |
| THD5500-48 | 55,000 | 24.9 (no load) | 32.7 (standard) 65.4 (high-speed option) | 16 | 305 |
| THD6000-48 | 60,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 18 | 315 |
| THD6500-48 | 65,000 | 21.1 (no load) | 32.7 (standard) 65.4 (high-speed option) | 17 | 315 |
| THD7000-48 | 70,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
| THD7200-48 | 72,000 | 21.1 (no load) | 25 (standard) 50 (high-speed option) | 14 | 315 |
| THD8000-48 | 80,000 | 19.2 (no load) | 43.9 | 17 | 355.5 |
| THD8000S-48 | 80,000 | 19.2 | 43.9 | 16.2 | 319.3 |
| THD9250-48 | 92,500 | 20.0 (no load) | 43.9 | 12.7 | 355.5 |
| THD9250S-48 | 92,500 | 20.0 (no load) | 43.9 | 12.1 | 327.8 |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
Heavy-Duty Diesel Forklift for Extra Large Jobs

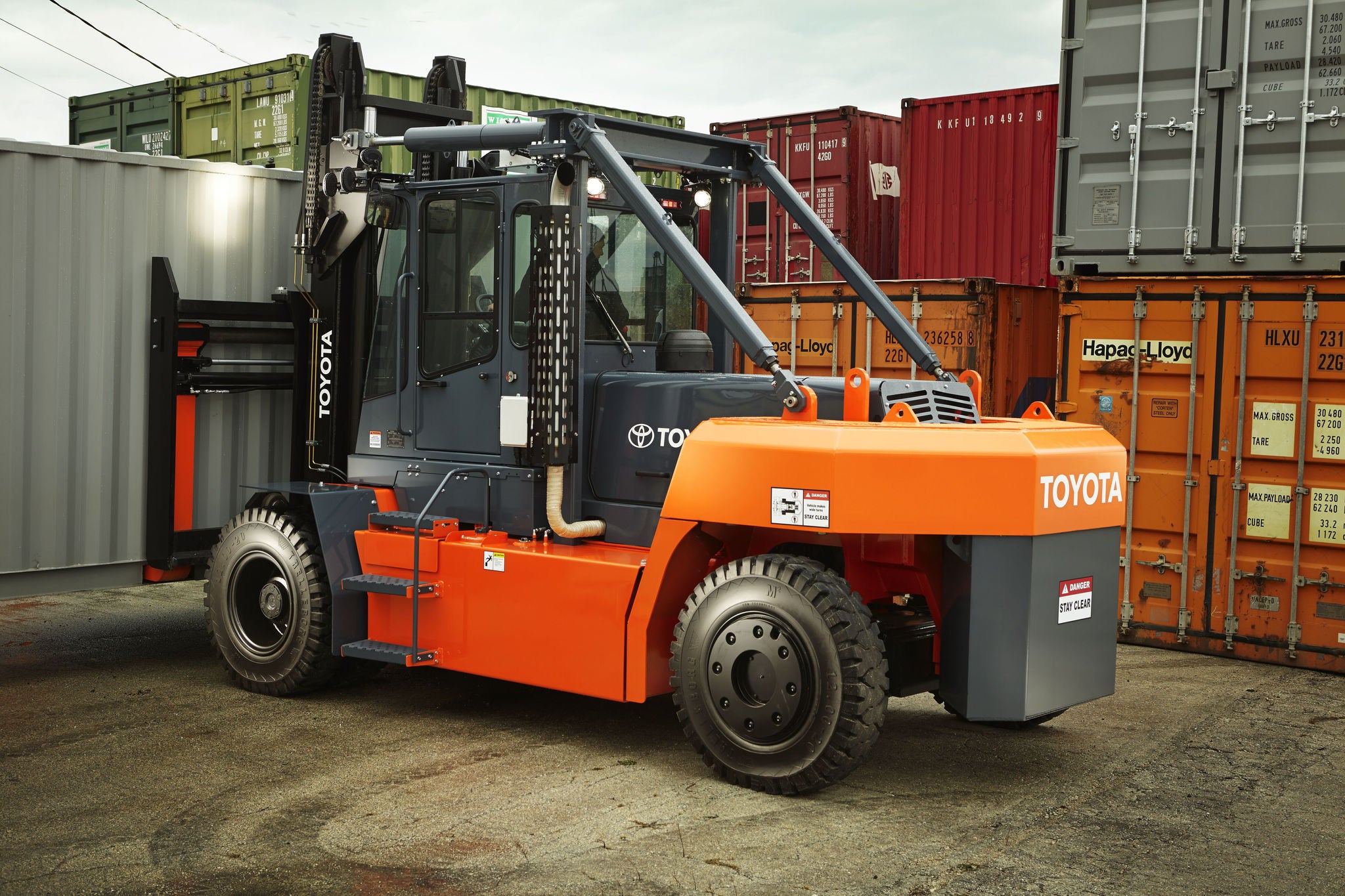

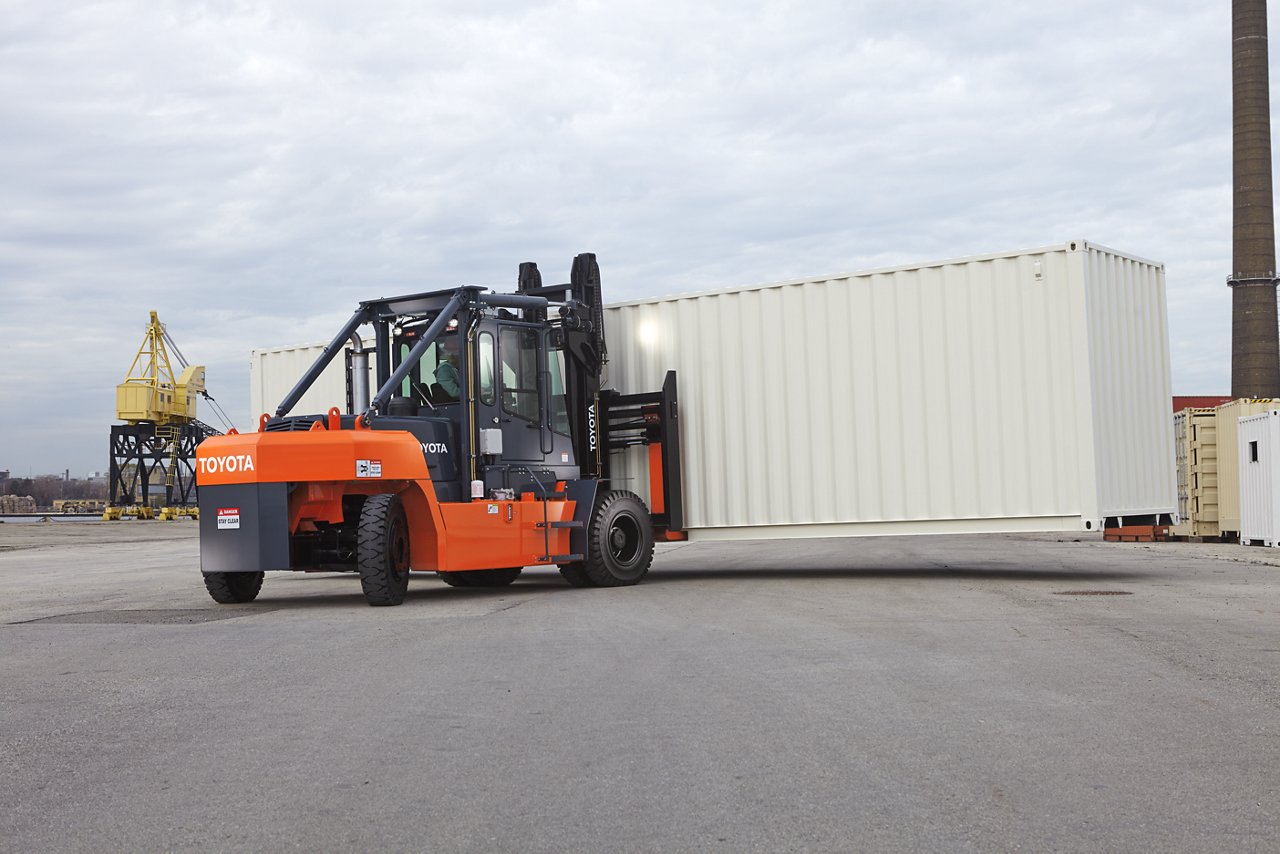

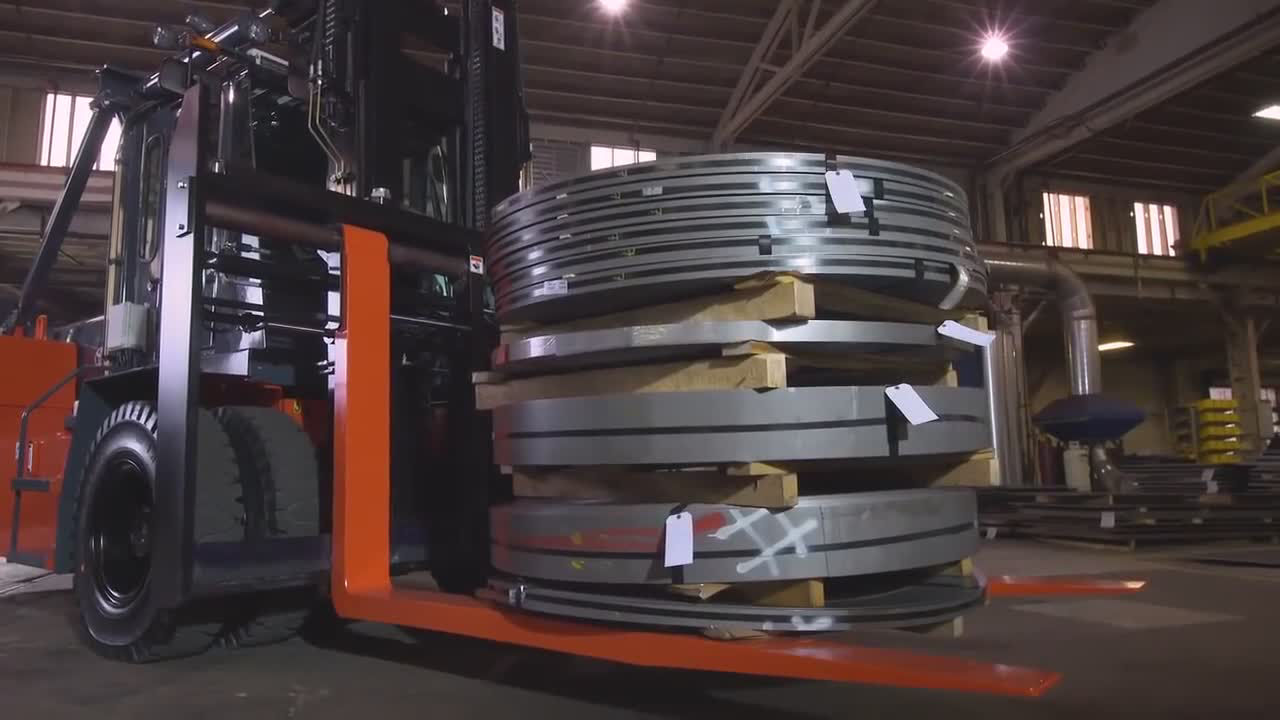

The High-Capacity IC Pneumatic Forklift is Toyota’s heavy load solution. Capable of lifting over 62 Tons (125,000 lbs.), the High-Capacity IC Pneumatic Forklift is often moving material on construction sites and loading full trailers onto large ships. This lift includes a vehicle management system with onboard diagnostics that shares useful information and timely alerts on a 7-inch color touch screen multifunction display. Standard fingertip controls provide smooth material handling and variable speed control of all functions. A low-profile counterweight makes the THD easy to maneuver and confidently puts you in control.
High-Capacity IC Pneumatic Features
An enclosed operator compartment with clear sight lines reduces exposure to the elements while providing superior visibility. A premium air rid seat, heater, and operator fan comes standard, keeping operators comfortably productive over the course of a shift. Add a two-stage, wide-view mast – with lift cylinders mounted directly behind the mast rails – and you have an even wider field of vision. Additionally, tilt steering columns, operator assist grips, and left-hand shift levers are included.
Recommended Industries
Options / Accessories
High-Capacity IC Pneumatic Accessories
Make the most of your High-Capacity IC Pneumatic by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.
