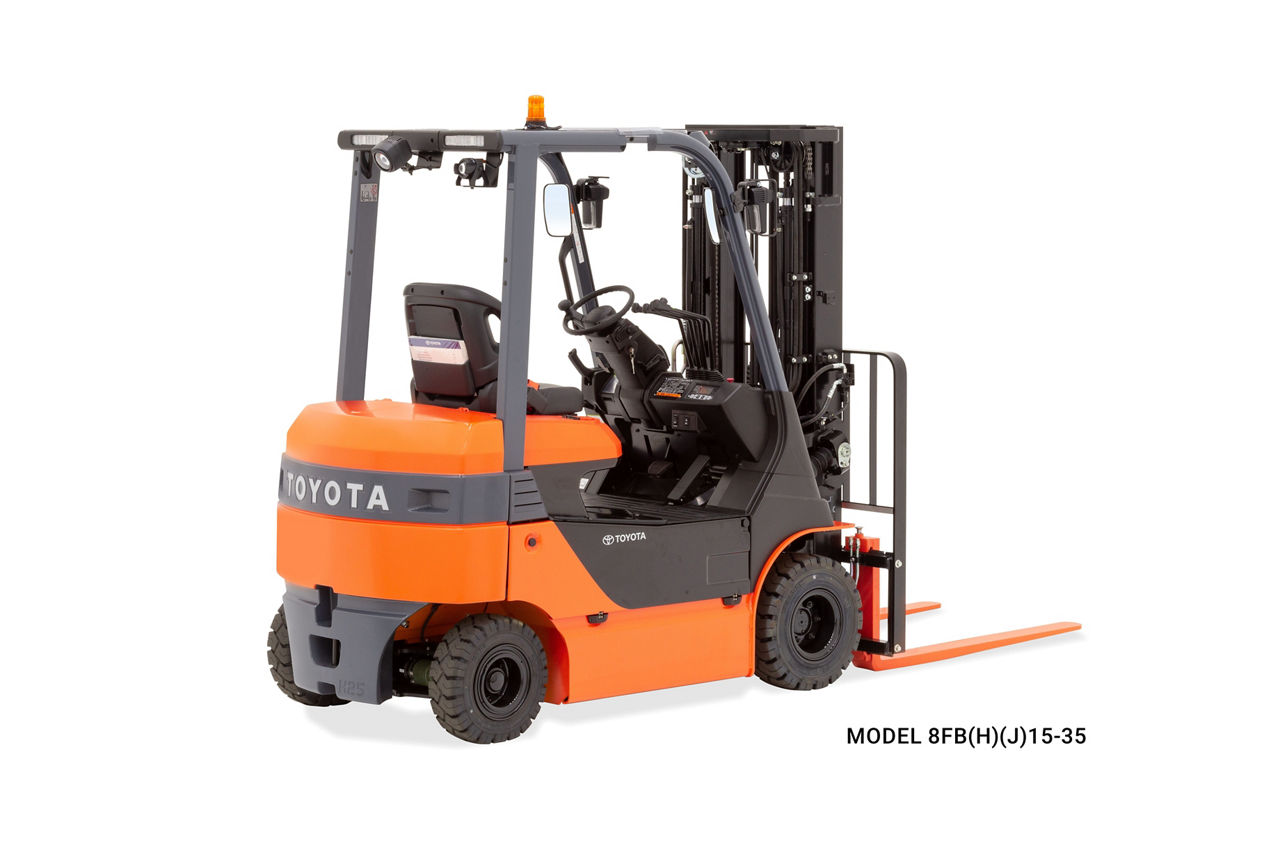

(J)15-35-model)
(J)15-35-model?$DM-responsive-preset-compressed$)

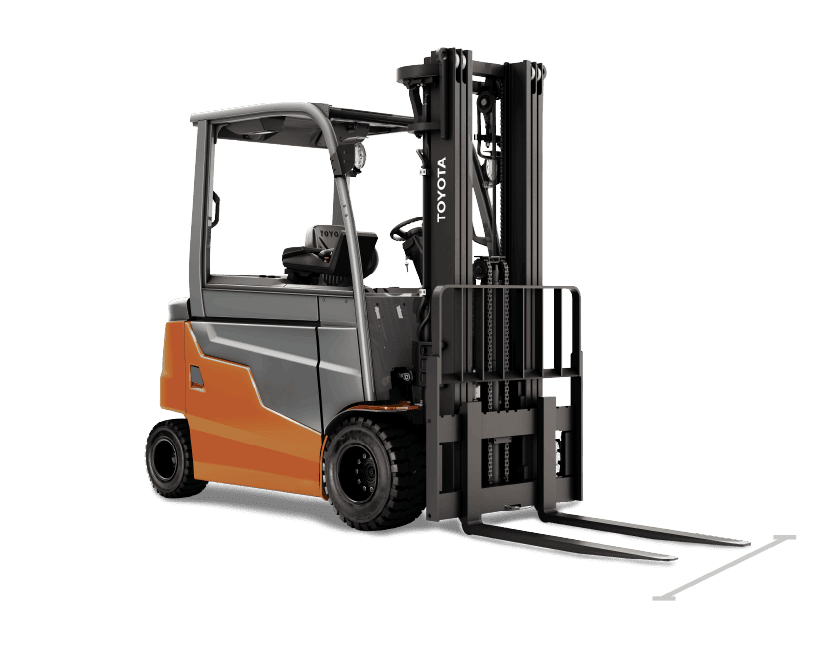

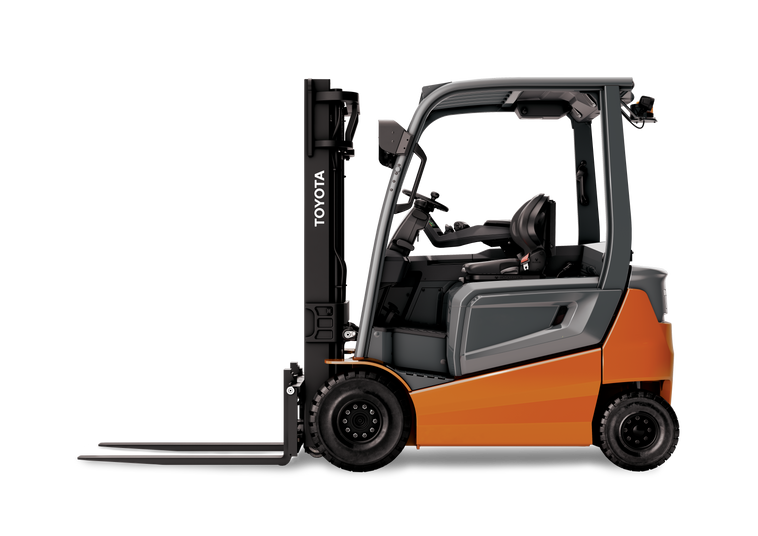

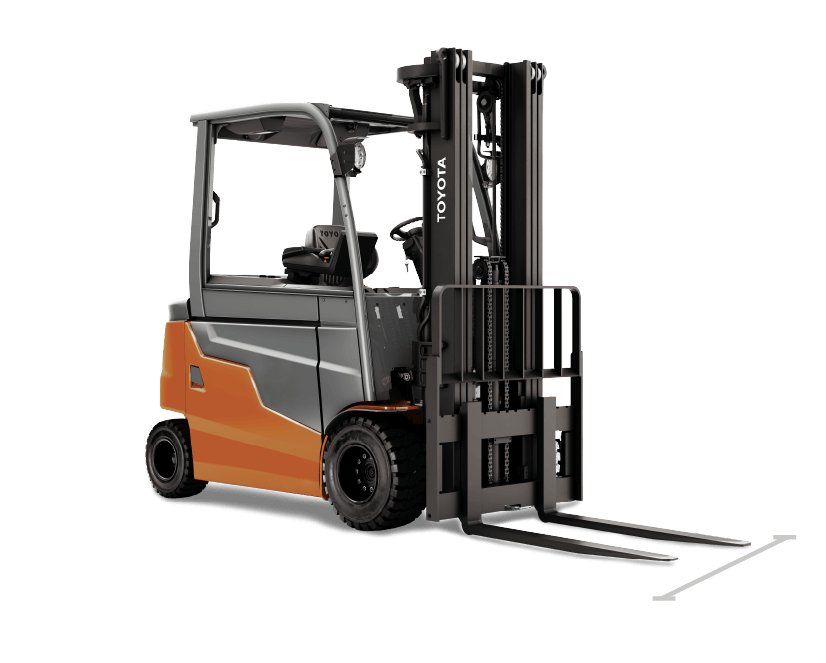

80V Electric Forklift
Want to maintain an all-electric fleet, but need a rugged, outdoor workhorse? Look no further than Toyota’s 80V Electric Pneumatic Forklift. These electric powerhouses combine the power, durability, and reliability of internal combustion trucks with the ergonomics and speed of electric forklifts. With a capacity ranging from 4,000 - 17,500 lbs., these machines are ready to tackle any challenge, whether you’re operating indoors or outdoors.
Models for 80V Electric Pneumatic Forklift
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| 05-9FBMK20T | 4,000 | 11.8 | 90.6 | 23 - 31 | 104.1 |
| 05-9FBM25T | 5,000 | 11.8 | 90.6 | 19 - 29 | 110 |
| 05-9FBMK25T | 5,000 | 11.8 | 90.6 | 20 - 29 | 104.1 |
| 05-9FBH25T | 5,500 | 11.8 | 78.7 | 18 - 29 | 110.6 |

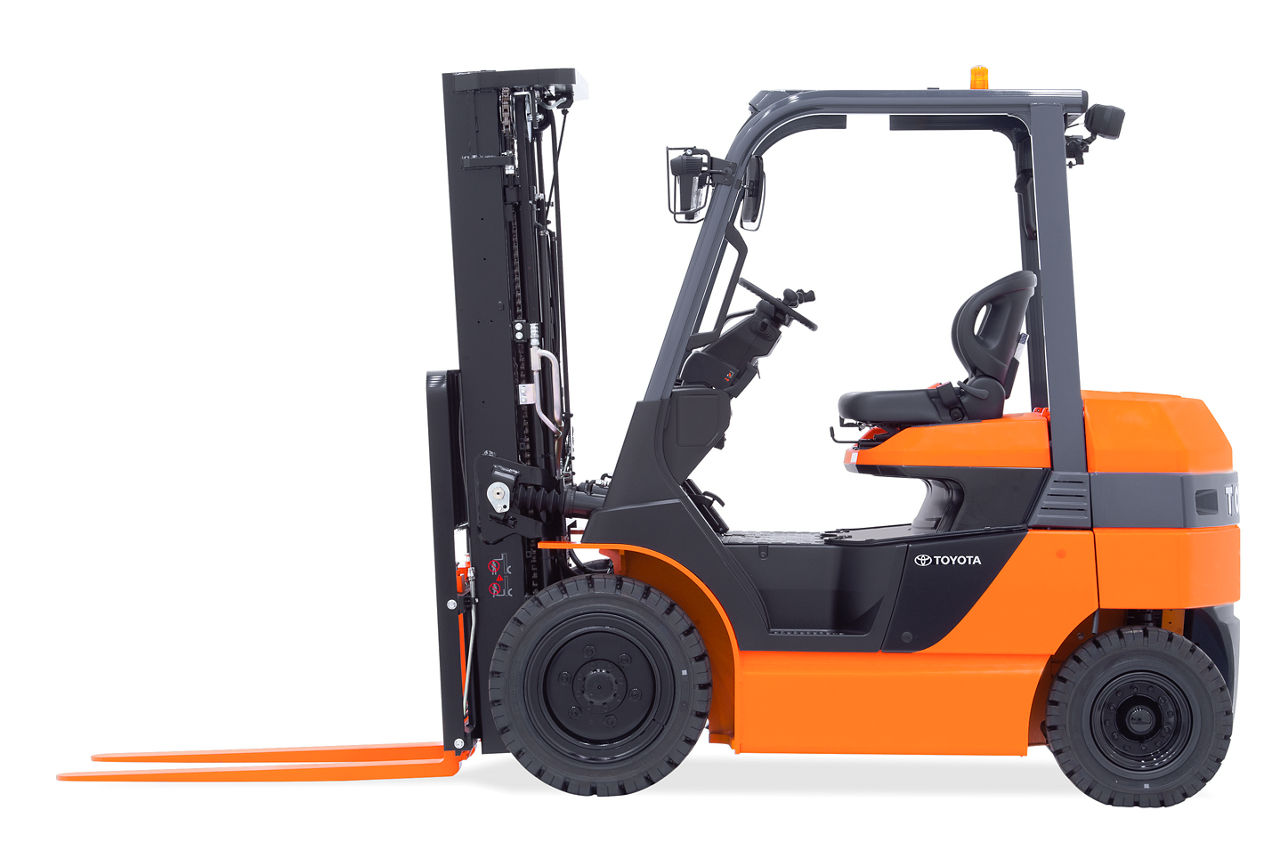

| 8FB30 | 6,000 | 8.7 | 63 | 11-19 | 106.1 |
| 05-9FBM30T | 6,000 | 11.8 | 78.7 | 17 - 29 | 110.8 |
| 05-9FBMK30T | 6,000 | 11.8 | 78.7 | 17 - 29 | 105.4 |
| 05-9FBH30T | 6,500 | 11.8 | 78.7 | 16 - 29 | 111.5 |
| 8FBJ35 | 7,000 | 8.1 | 53 | 9-17 | 109.1 |
| 05-9FBM35T | 7,000 | 11.8 | 72.8 | 15 - 29 | 111.8 |
| 05-8FBM40T | 8,000 | 11 | 68.9 | 11.3 - 25 | 120.5 |
| 05-8FBM45T | 9,000 | 11 | 68.9 | 9.5 - 24 | 121.1 |
| 05-8FBM50T | 11,000 | 11 | 65 | 8.8 - 23 | 126.5 |
| 9FBM60T | 13,000 | 11 | 75 | 7 - 19 | 146 |
| 9FBM70T | 15,500 | 11 | 71 | 6 - 18 | 146.5 |
| 9FBH80T | 17,500 | 10 | 63 | 5.2 - 16 | |
| 9FBM80T | 17,500 | 11 | 63 | 5.6 - 16 | 152 |
* Based on a 24" load center ** Add load length and clearance
Product specifications may not reflect the most current product details. The most up-to-date product specifications are maintained by authorized Toyota dealers. All specifications must be verified by an authorized Toyota dealer prior to purchase.
Yield
Powerful, productive and environmentally friendly
At Toyota, we understand that you need a forklift that provides the power and durability to get the job done. Our 80V electric pneumatic forklift is a beast and is designed to address all your material handling needs. Rugged enough to perform similarly to its internal combustion counterparts while running on a battery, Toyota's 80V electric pneumatic forklift keeps the air clean and low maintenance, but supports traditional IC applications.
This versatile lift delivers maximum travel speeds with a powerful and efficient AC drive motor, which provides longer run times with the help of regenerative braking, giving you the power to do faster. When you need raw power to meet outdoor challenges and efficient, environmentally friendly operation, look no further than Toyota's 80V electric pneumatic forklift.
Power Studies
Propelling you forward
Let Toyota Energy Consultants be your guide to understanding your operation's energy consumption. Conducting an energy survey is a crucial step in determining which energy source is best for your operation. Toyota's power study takes the guesswork out of deciding which energy solution is best for our electric or internal combustion units.
Data is typically collected over 2-4 weeks on heavier used trucks, offering information on run time, idling, available load, and amp hours. The data collected will provide you with visibility into the hours equipment is being used, as well as the volume of shifts. Toyota's energy consultants not only discuss battery usage, but also ways to eliminate waste and recommendations for customized solutions. When you're ready to take control of your energy usage, partner with Toyota.
80V Electric Pneumatic Features
Designed with the operator in mind, the 80V Pneumatic Electric Pneumatics' operator compartment comes equipped with features to help you get your job done quickly and efficiently. Overall noise and vibration levels are also much lower, resulting in reduced stress and fatigue. The fully floating cab and full suspension seat significantly reduce shock and vibration for productive and comfortable operation.*
The Toyota 80V electric pneumatic forklift comes with several features to help operators in their work environment. Mini-lever controls and armrest provide more ergonomic operation to decrease fatigue and increase productivity. The cab-style operator's compartment features a low-rise, tilt-and-telescoping steering column dashboard with electric power steering for excellent visibility, legroom and comfort. Other ergonomic features include:*
Vinyl seat with ORS (Operator Restraint System) full suspension
Retractable seat belt
Heavy-duty non-slip mat
Tilt steering column with memory

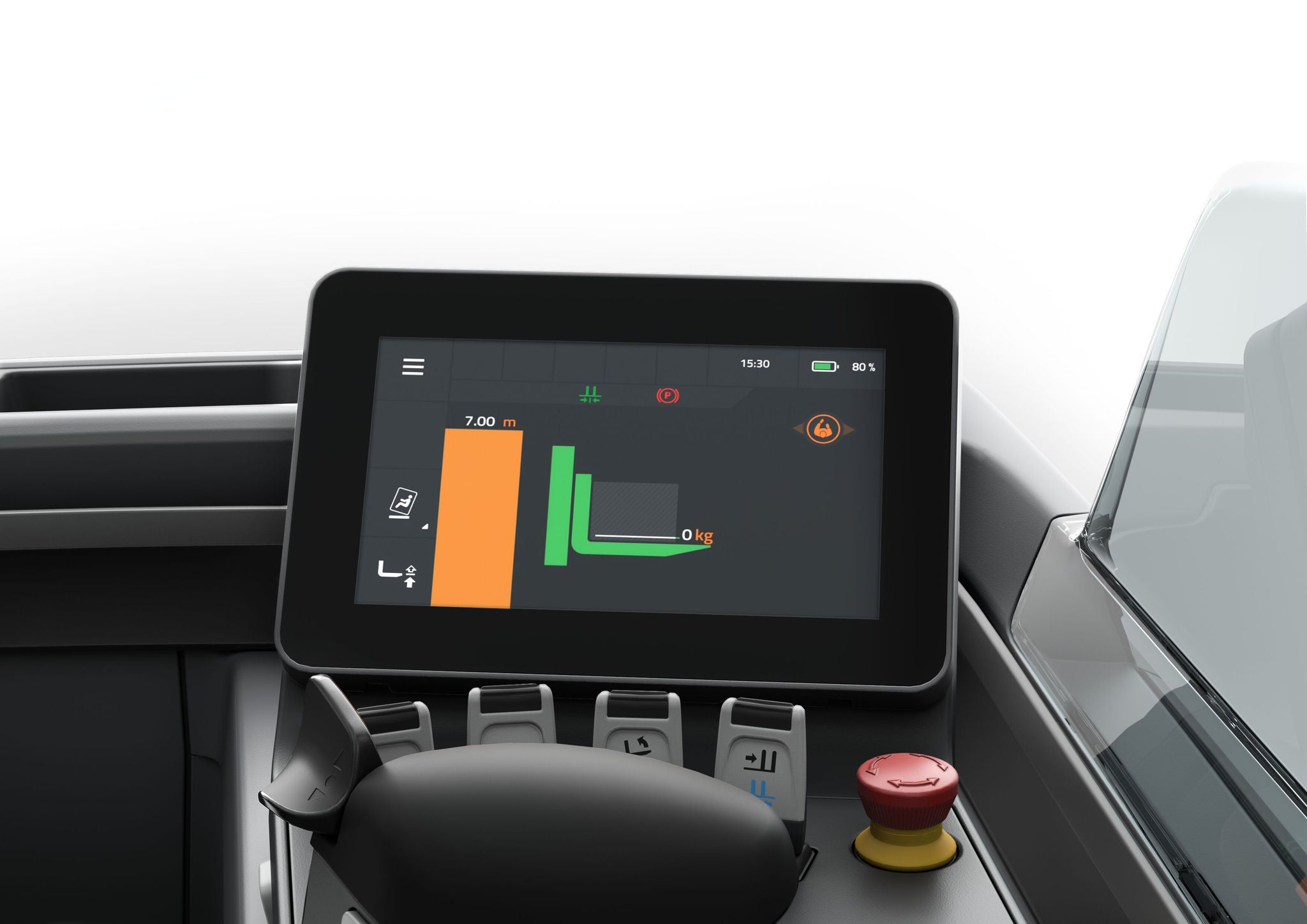

With a built-in multi-function digital display, the 80V electric pneumatic forklift provides truck information at your fingertips. The low-clearance dashboard and wide-visibility mast provide operators with a clean line of sight during loading and unloading. A tilt-to-memory steering column and adjustable seat give operators a comfortable, personalized space when working during a shift.**
*only available on 8FBM/9FBM(K)/9FBH models
** only available on 8FB/8FBH/8FBJ models
Recommended Industries
Options / Accessories
Popular 80V Electric Pneumatic Accessories
Get the most out of your 80V electric pneumatic forklift by considering additional options and accessories. A Toyota forklift can be designed to meet your operational needs. An authorized Toyota dealer can help you develop the best forklift that can help you with your company's biggest challenges.
