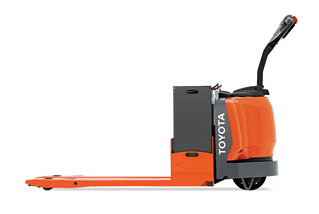

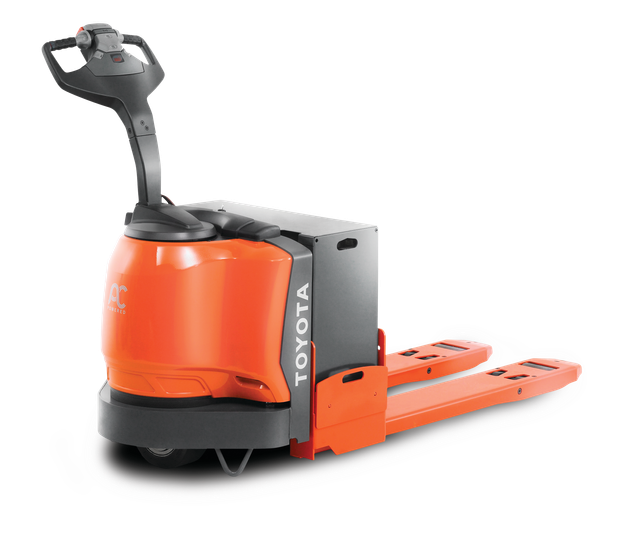

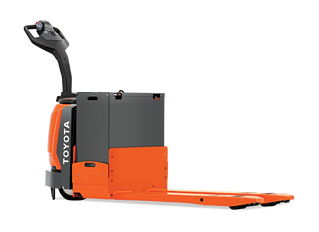

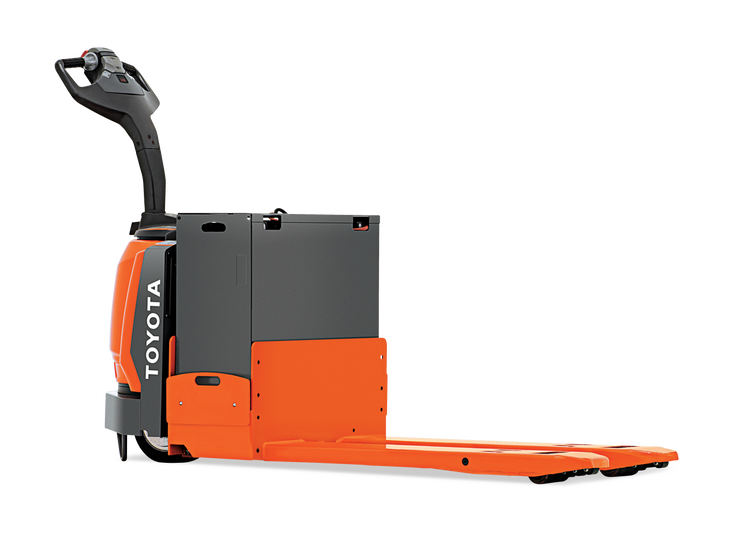

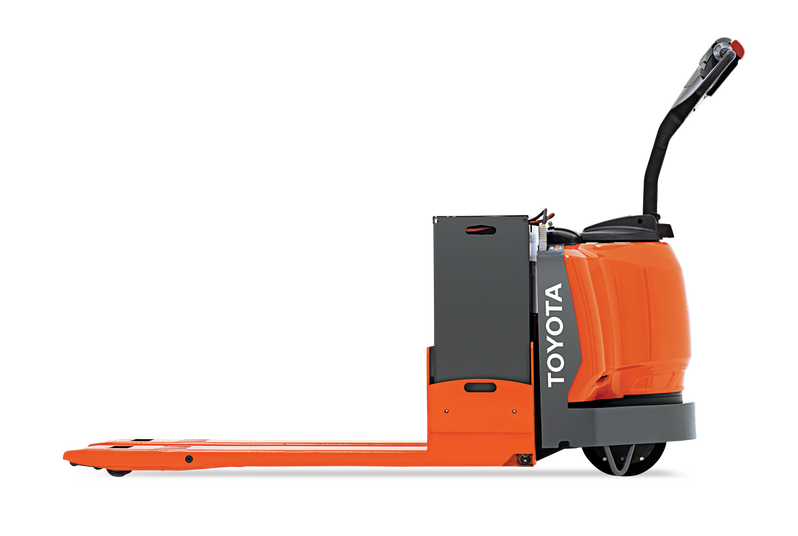

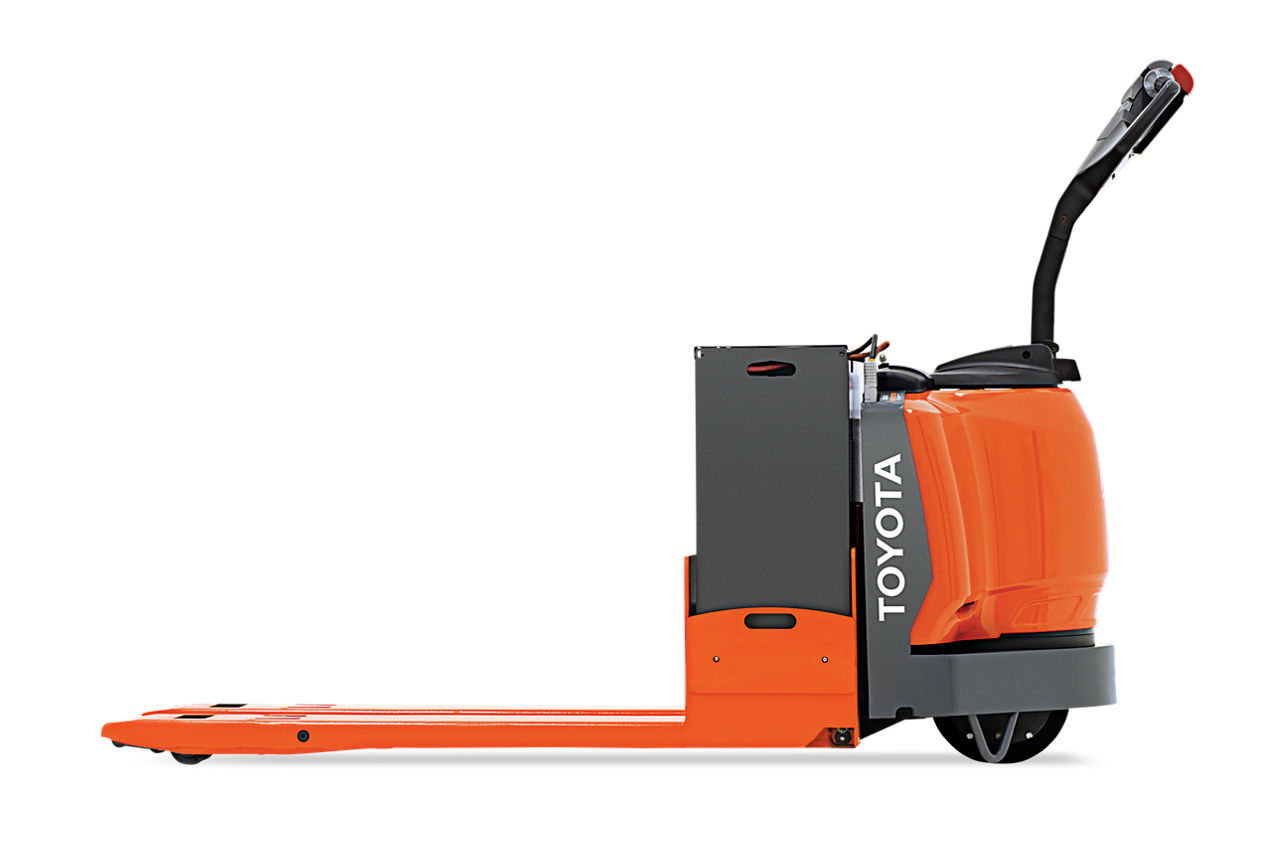

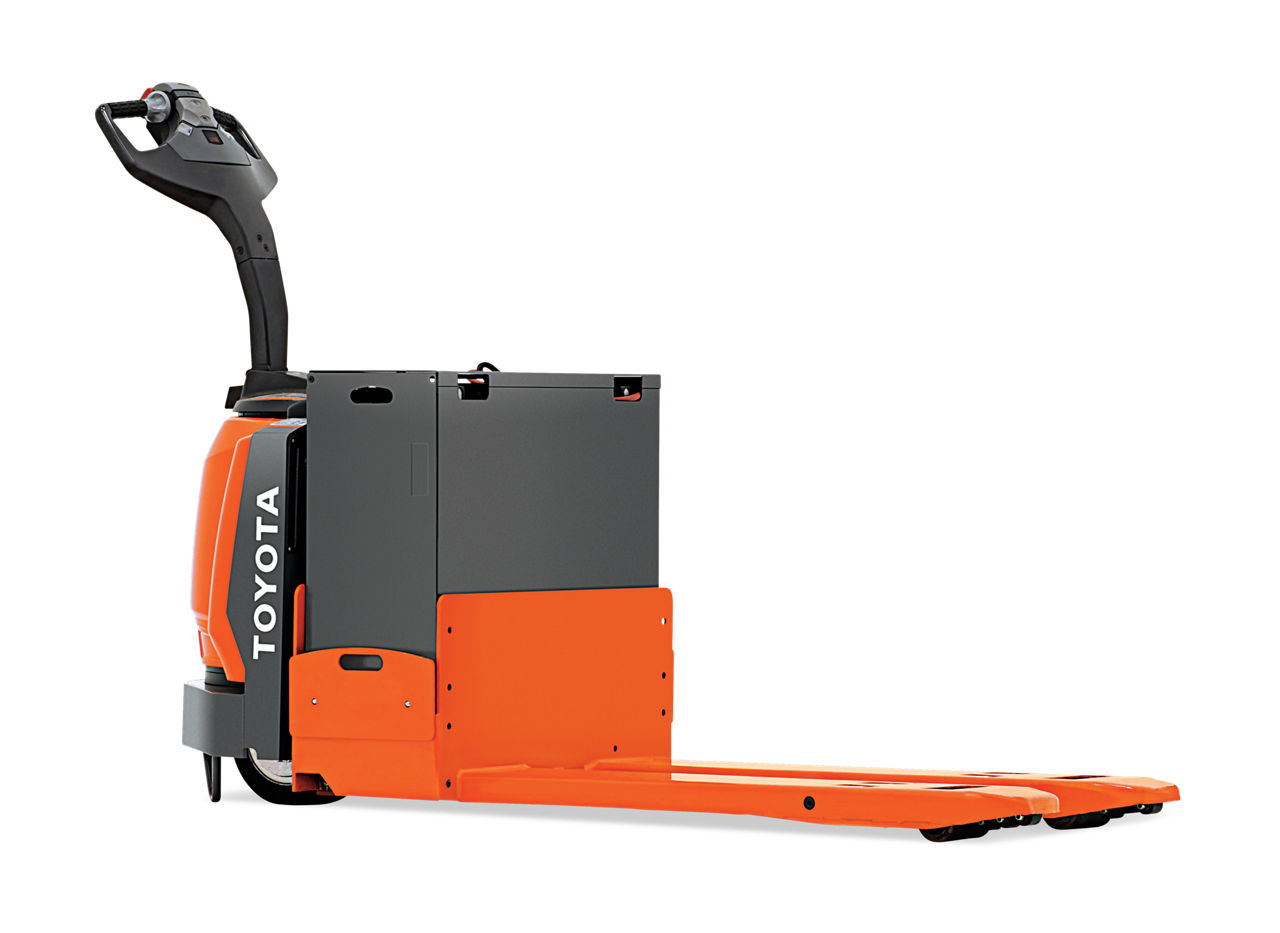

Large Electric Walkie Pallet Jack

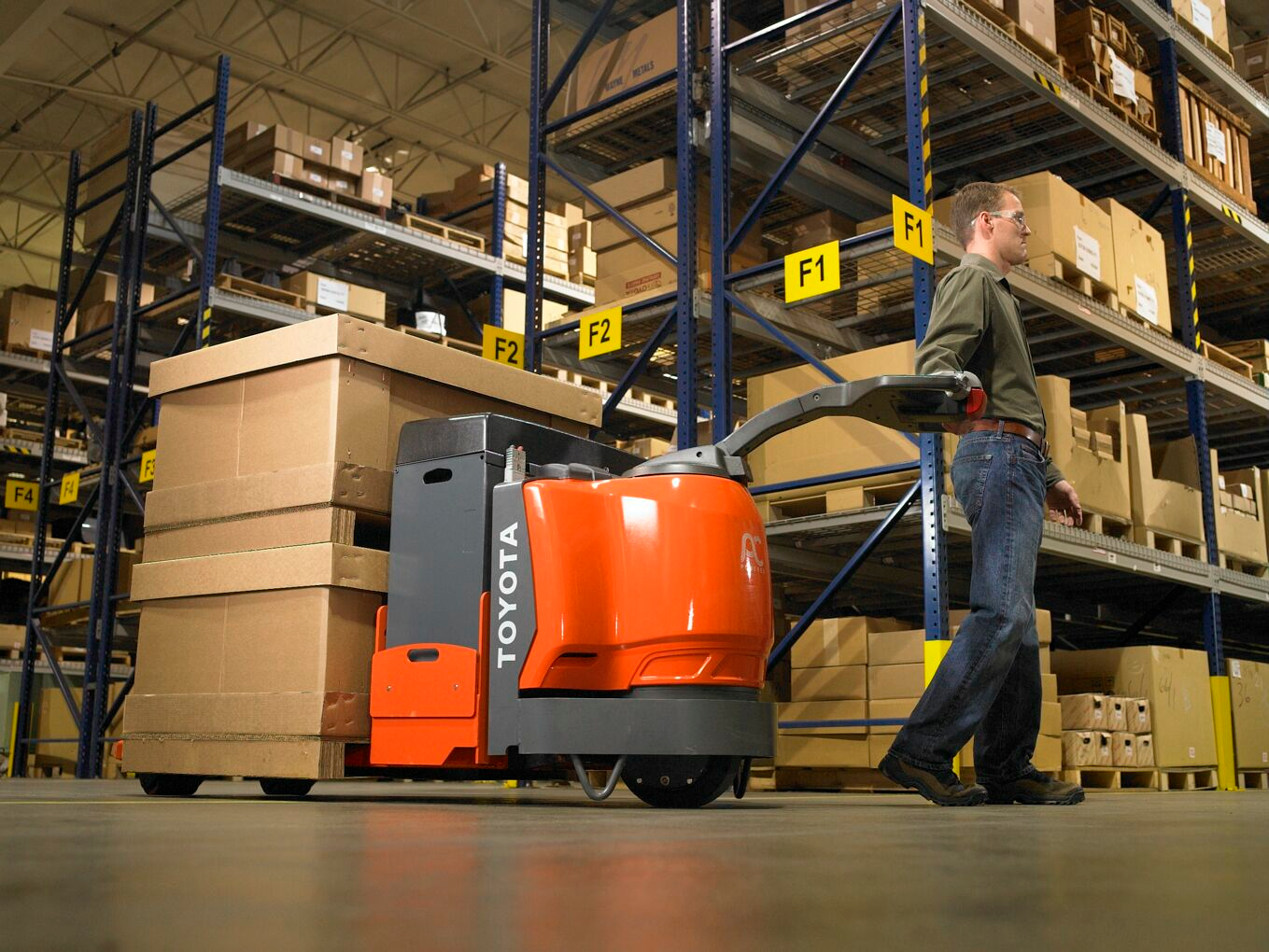

Toyota’s Large Electric Walkie Pallet Jack makes maneuvering heavy loads throughout the warehouse efficient, convenient, and productive. Whether you are using a staging area for loading and unloading or you need a solution for here-and-there material handling jobs, the Large Electric Walkie Pallet Jack is an asset for nearly any application.

Special Features
  • 6,000 – 8,000 lb. Load Capacity
  • Regenerative Braking
  • AC Drive Motor


Large Electric Walkie Pallet Jack Specifications

Learn more about the current Toyota Large Electric Walkie Pallet Jack models that are available for purchase.

6,000 - 8,000

Load Capacity



Travel Speed Full Load



Electrical System

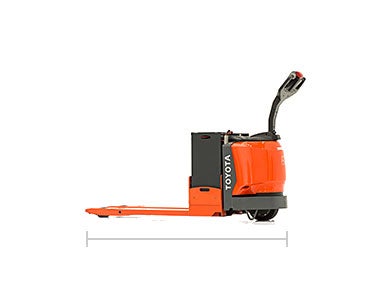

Overall Length

63.7 - 93.7 in.

 Full length image of electric walkie22

Height (Extended Handle)

56.7 in.

Height image of large electric walkie2

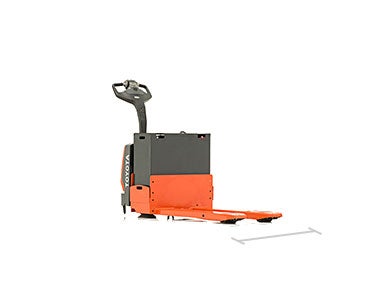

Overall Width

32.5 in.

 Full width image of electric walkie2

Models for Large Electric Walkie Pallet Jack

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Gradeability Full Load (%) Basic Right Angle Stack (in.) Minimum Aisle Width (in.)
8HBW30 6,000 3.9 10 73.4 85.7
8HBW40 8,000 3.9 10 73.4 85.7

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.


Take a Load Off

The Large Electric Walkie Pallet Jack ergonomic design maximizes operator effectiveness through long shifts. This includes the multifunction control handle with appropriately positioned handgrips, dual thumbwheels, and lift, lower, and horn buttons for simplified operation of all controls with either hand. This electric pallet jack is also powered with Toyota’s AC Drive Motor plus regenerative plugging for longer run time and increased productivity. Toyota’s Large Electric Walkie Pallet Jack comes with onboard self-diagnostics to simplify troubleshooting and eliminate the need for external hand-held analyzers.

Large Electric Walkie Pallet Jack Features

Toyota’s Large Electric Walkie Pallet Jack comes with regenerative braking, programmable performance, and Controller Area Networks (CAN-BUS) Communications. The welded construction of this pallet jack comes with reinforced heavy duty bumpers. The fused control and power circuits make this walkie pallet jack tough and ready to get to work for you.

The Electric Walkie Pallet Jack provides several service features. These features include the AC Drive Motor with no brushes or commutator along with a one-piece, lightweight service access cover. The self-adjusting electric disc brake, maintenance-free Teflon® Coated PolyLube™ Lift Linkage Bushings, and error indicator with self-diagnostics alert operators when it’s time for maintenance.

Toyota’s Large Electric Walkie Pallet Jack was designed with operators in mind. These features are meant to provide additional comfort and functionality for the associates operating this machinery.


  • Multifunction control handle with angled hand grips and wrap-around hand guard

  • Dual thumb wheels for directional control and travel speed

  • Intuitively positioned lift/lower and horn buttons

  • Low-effort control handle

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Large Electric Walkie Pallet Jack.

This Product

Main product
Large Electric Walkie Pallet Jack

Options / Accessories

Popular Large Electric Walkie Pallet Jack Accessories

Make the most of your Large Electric Walkie Pallet Jack by considering additional options and accessories. Toyota products can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best equipment that can help you with your company’s biggest material handling challenges.

Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).

Man in coat and hat riding on orange forklift in cold storage environment

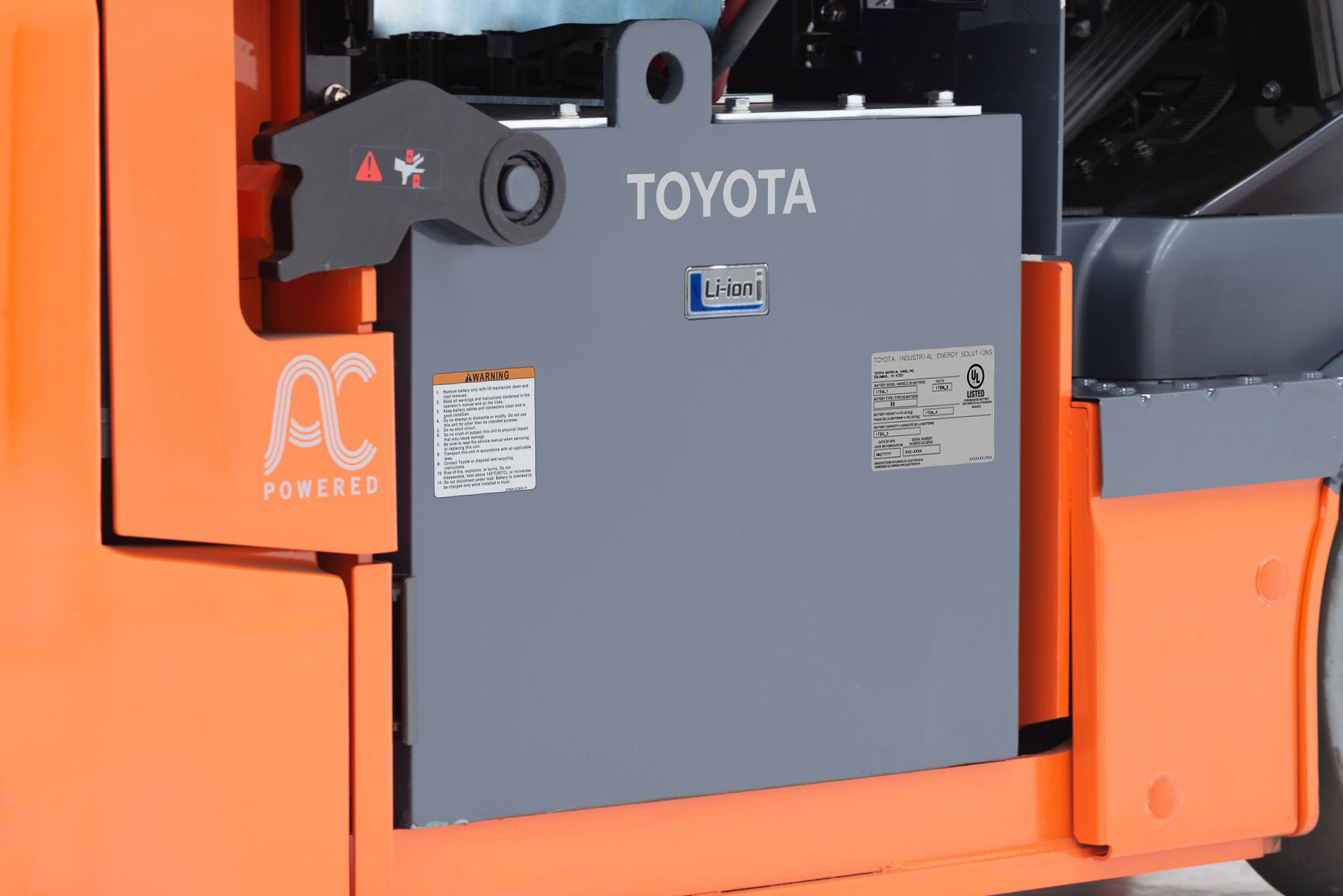

Toyota LiB

This product is a lithium-ion battery available in 24V, 36V and 48V options to fit a variety of trucks. These batteries use a lithium nickel manganese cobalt oxide chemistry for extended battery life.

3 electric wheel Close battery LIB3

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.
