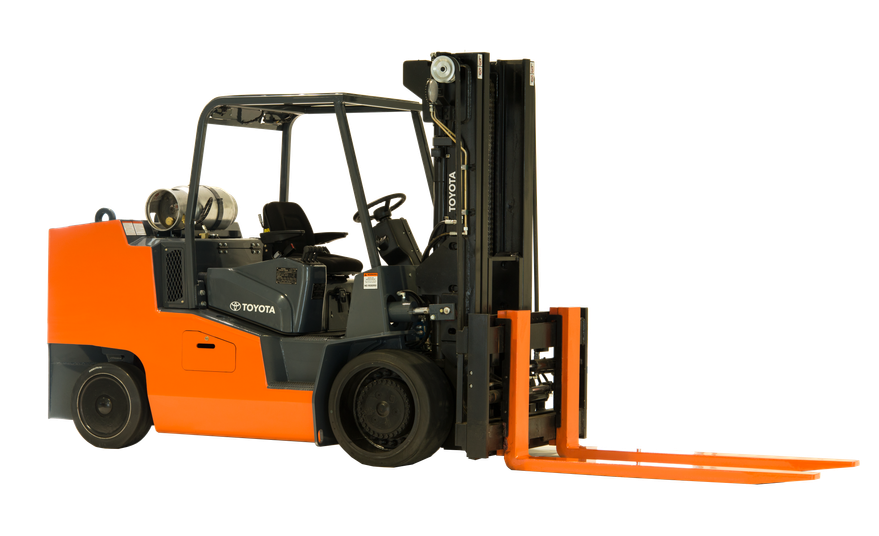

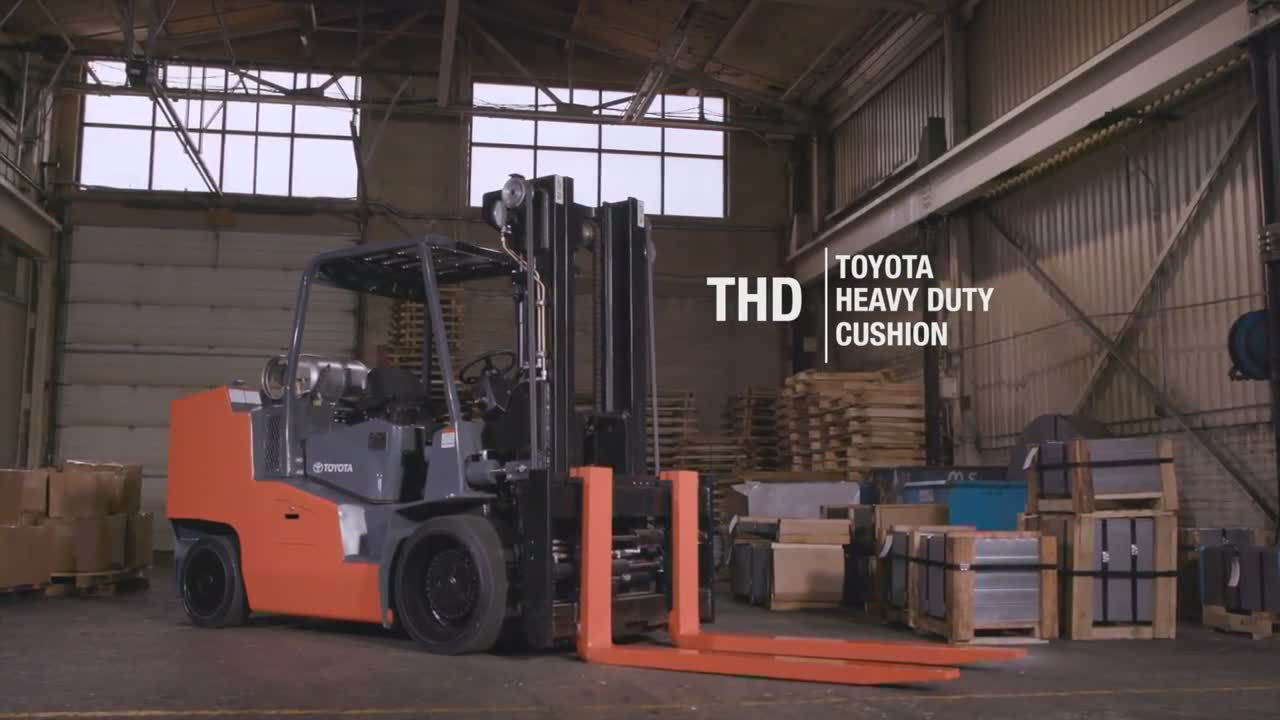

High-Capacity Cushion Forklift

The High-Capacity IC Cushion Forklift is a versatile multi-tasker in a warehouse or manufacturing facility. Need to lift large pallets full of heavy components? The High-Capacity Cushion has you covered. With its ability to lift up to 22,000 lbs. you’ll have those pallets of metal coils moving in no time. Have a paper plant with larger than normal rolls? The High-Capacity Cushion can come customized with a roll clamp to make those operations a cinch.

Special Features
  • 18,000-22,000 lb. Lifting Capacity
  • 12-Volt Electrical System
  • Dana 3-Speed Power Shift Transmission

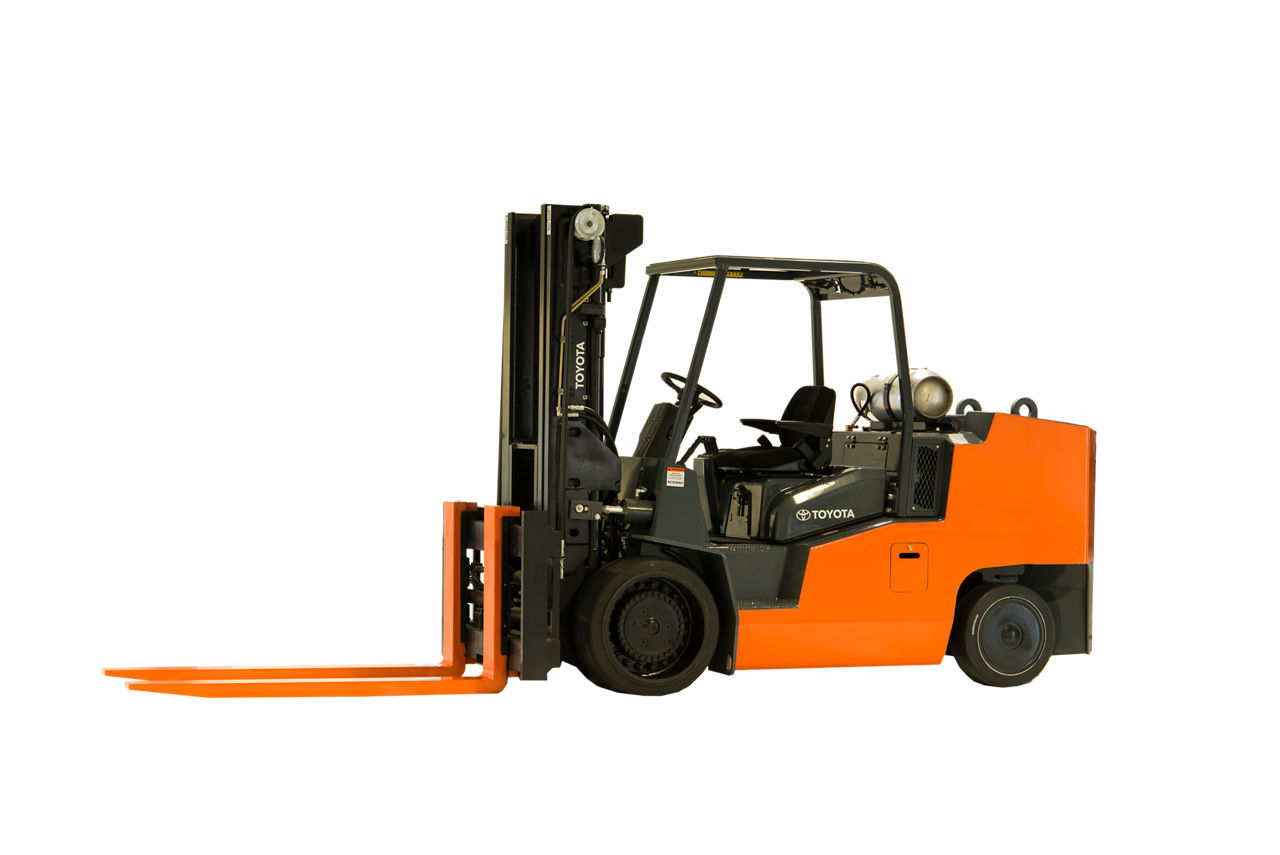

High-Capacity Cushion Forklift Specifications

Learn more about the current Toyota High-Capacity Cushion Forklift models that are available for purchase.

18,000 - 22,000

Load Capacity



Travel Speed Full Load



Model Types Available

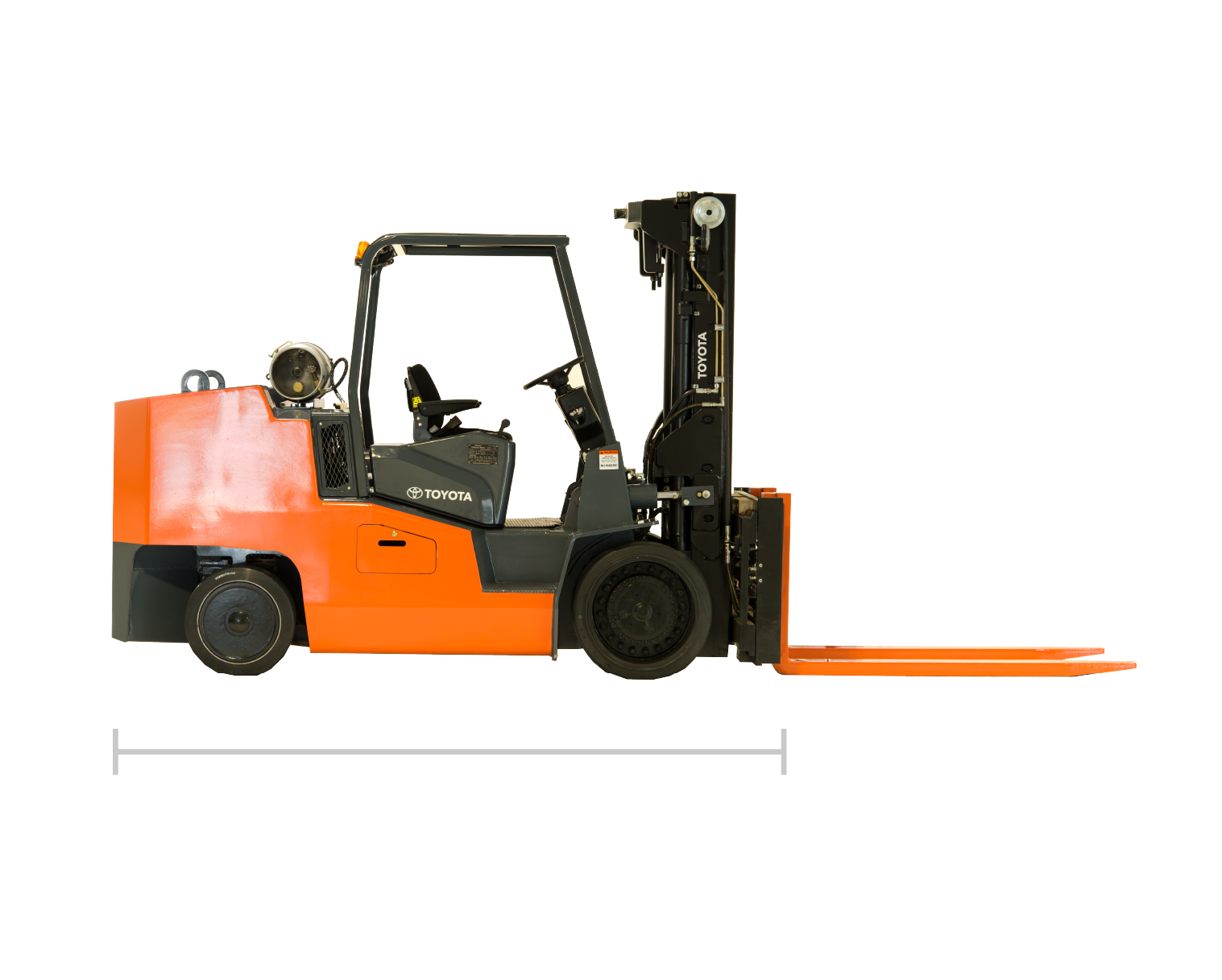

Length To Forkface

123.8 - 135.7 in.

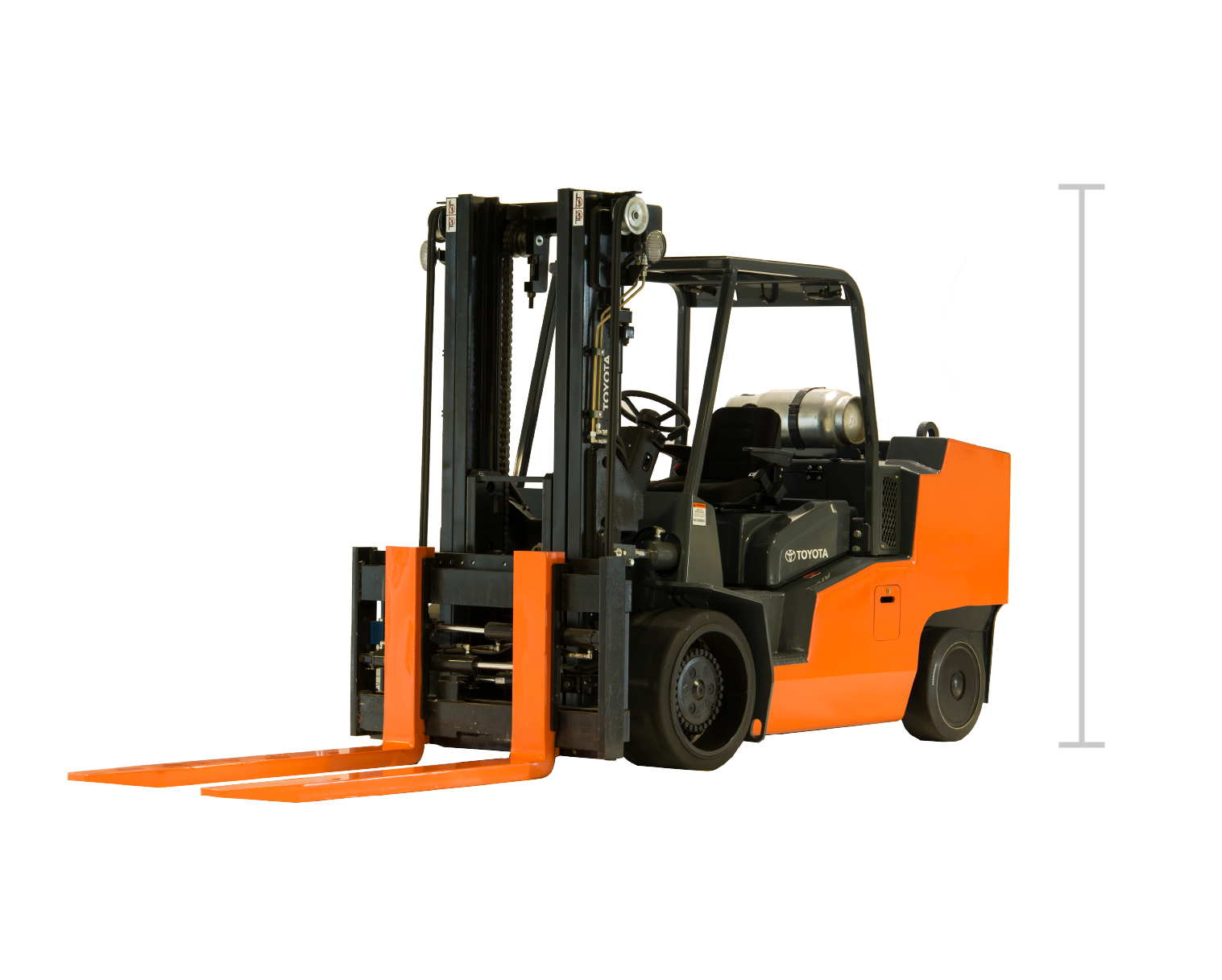

Overhead Guard Height

88.9 in.

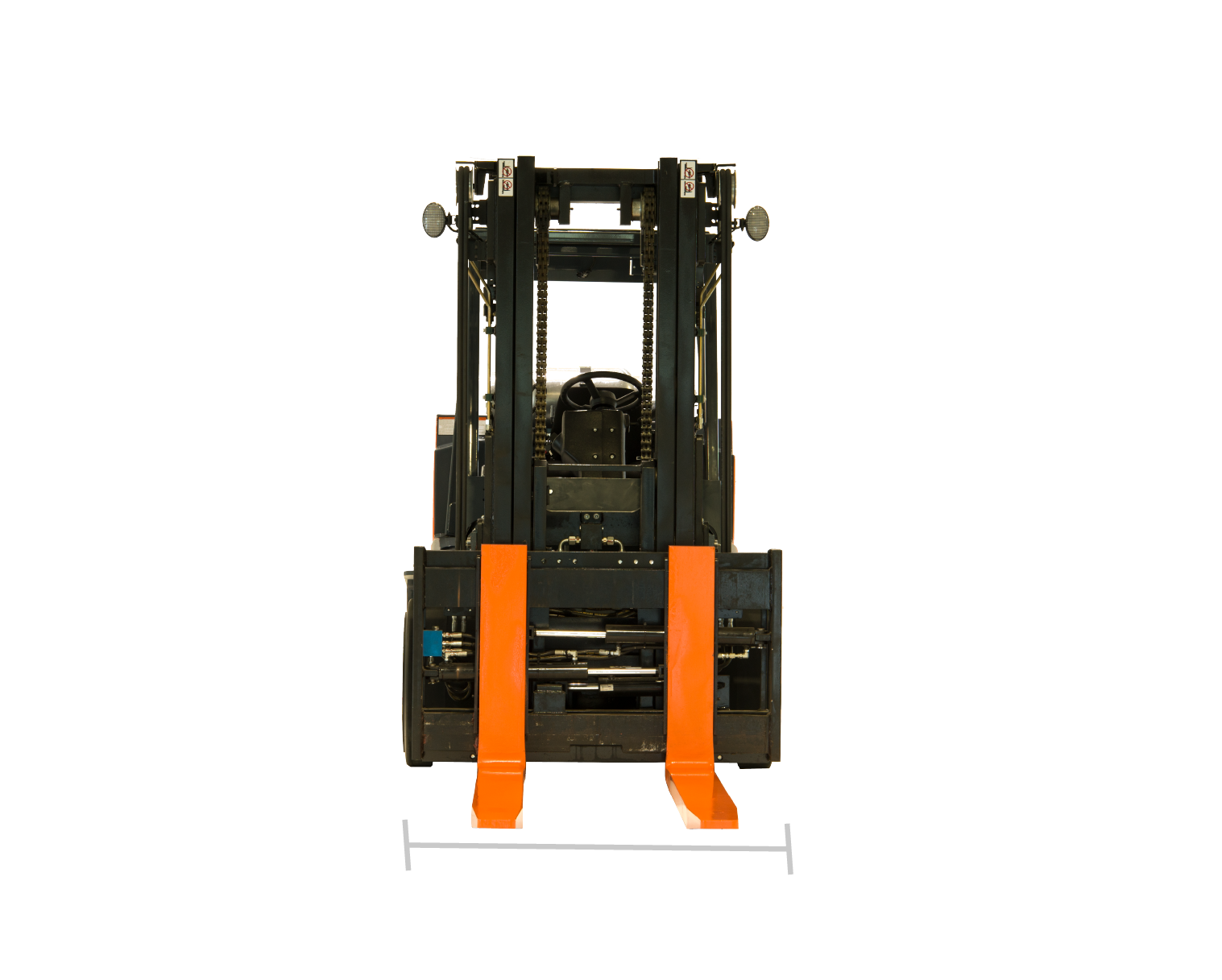

Overall Width

60.7 in.

Models for High-Capacity Cushion Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
THDC1800-24 18,000 14.3 50 30.5 140.6
THDC1800-36 18,000 14.3 46 27.4 144.3
THDC2200-24 22,000 14.3 46 25.2 144.3
THDC2200B-24 22,000 14.3 46 24.8 133.4

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

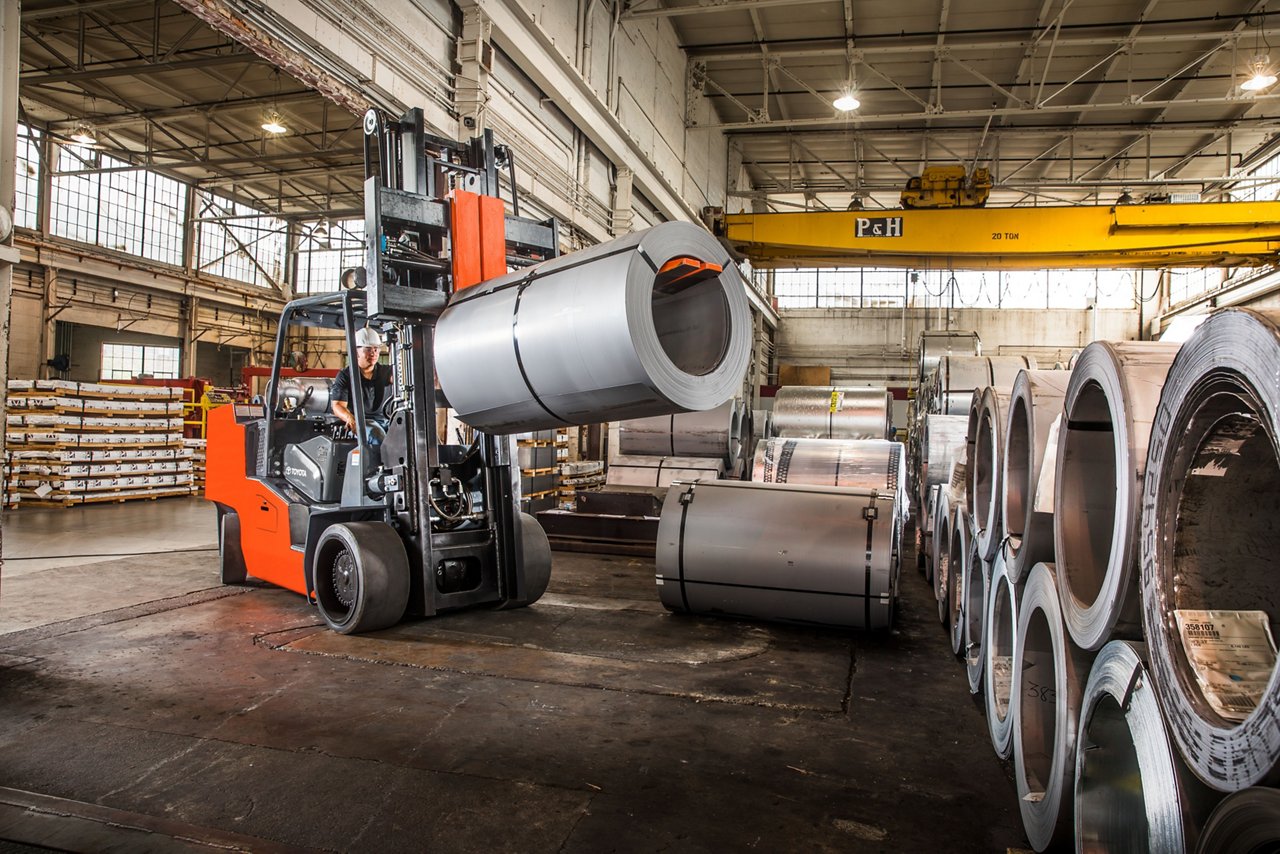

 High Capacity IC Cushion Application 4


Lift More Indoors

The High-Capacity Cushion Forklift is designed to help solve your toughest indoor capacity challenges while maintaining high visibility and maneuverability. Designed with a Dana Transmission with three forward reverse speeds, a V6 engine, and an engine diagnostics and support system, this indoor workhorse is built to last.

High-Capacity Cushion Forklift Features

Toyota’s High-Capacity Cushion Forklift comes with a 4.3L V6 LP Engine along with a Dana 12000 Transmission. This product comes with a drum-type braking system, heavy duty planetary drive axle, 48” hook-type forks, and independent brake and inching pedals. The High-Capacity Cushion Forklift also comes with mast-mounted LED headlights for increased brightness and visibility.

Safety features on the High-Capacity Cushion Forklift include an operator presence sensing system (OPSS), which is built under the seat of the forklift and detects the operator’s presence while in operation. This forklift also includes an operator restrain system and a neutral safety switch. A load sensing hydraulic system and high visibility two-stage wide-view mast are also included to deliver the power and unobstructed views to get the job done.

The strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect. The digital instrument display keeps you aware of the operating status. Standard hood-mounted hydraulic controls provide operators with convenient, comfortable controls of all functions. The high-visibility design helps keep operators aware of their surroundings while in operation.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the High-Capacity Cushion Forklift.

This Product

Main product

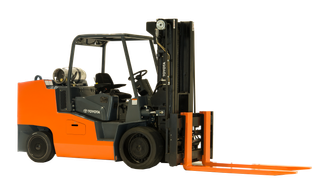

High-Capacity Cushion Forklift

Options / Accessories

Popular High-Capacity Cushion Forklift Accessories

Make the most of your High-Capacity Cushion Forklift by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Forward Camera

The front-view camera system provides the driver with a direct view of the floor in front of the truck, revealing dead spots and obstacles, preventing damage.

Public PNG Reach Stacker Close Up 3

Rear Camera

The rear-view camera system provides the driver with a direct view of the floor behind the truck, revealing dead spots and obstacles, preventing damage.

Rear Camera

Dual Camera

The dual camera system provides the driver with a direct view of the floor in front, and back of the truck, revealing dead spots and obstacles, preventing damage.

Dual Camera
