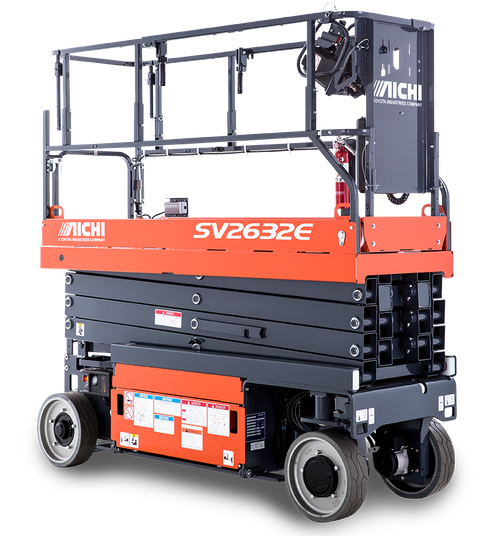

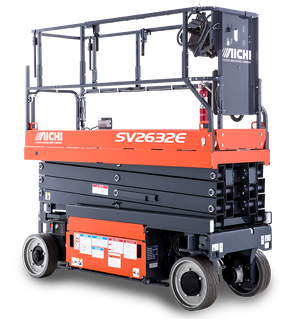

AICHI Scissor Lift
The AICHI E-Series Scissor Lifts can easily be used for multiple purposes between facilities maintenance, construction, plumbing, painting, and more. The E-Series Scissor Lifts can fit through a standard doorway and can reach working heights of 25, 26, 32, and 38 feet.
Models for Aichi Scissor Lift
| Model | Platform Height (ft.) | Platform Capacity At Lift Height | Platform Lift Time (sec.) | Platform Lower Time (sec.) | Overall Width (in.) |
|---|---|---|---|---|---|
| SV1932E | 19 | 505 lbs. at 228 in. | 26 | 30 | 32.1 |
| SV2032E | 20 | 790 lbs. at 240 in. | 28 | 40 | 31.9 |

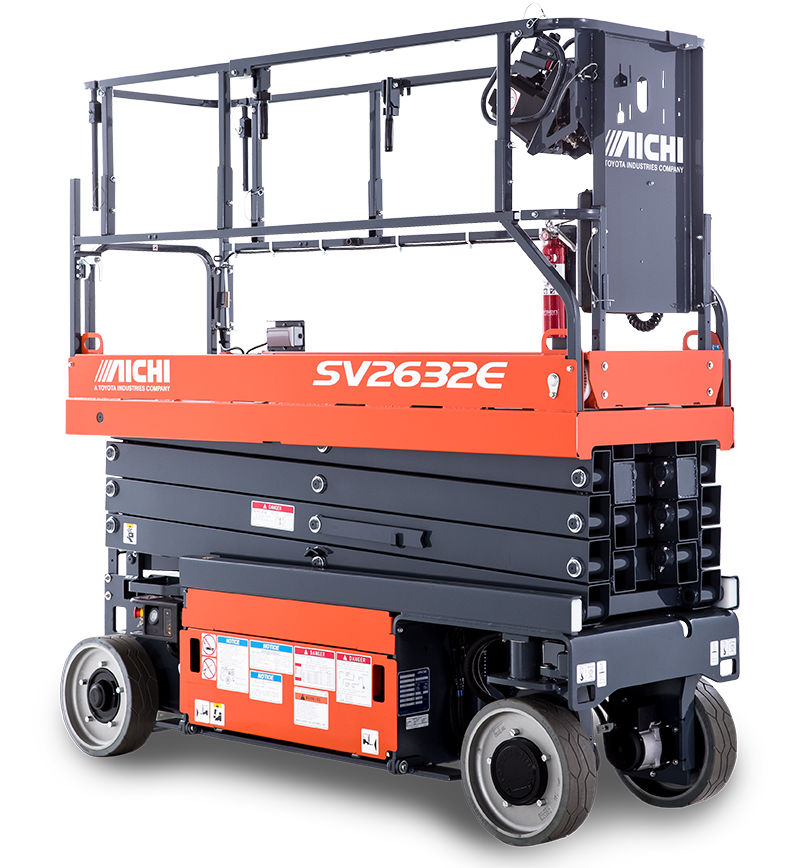

| SV2632E | 26 | 505 lbs. at 307 in. 795 lbs. at 236 in. | 33 | 37 | 31.9 |
| SV2646E | 26 | 705 lbs. at 382 in. 990 lbs. at 311 in. | 40 | 50 | 46.1 |

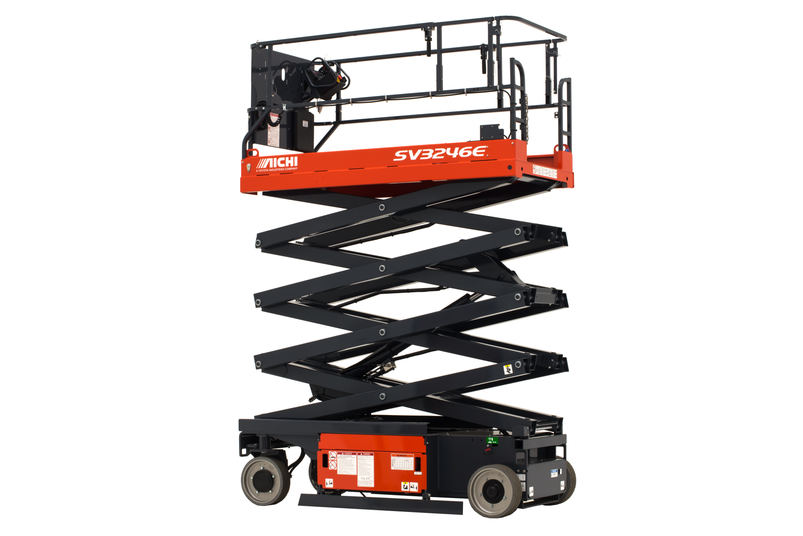

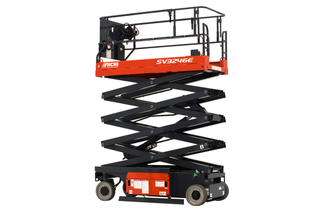

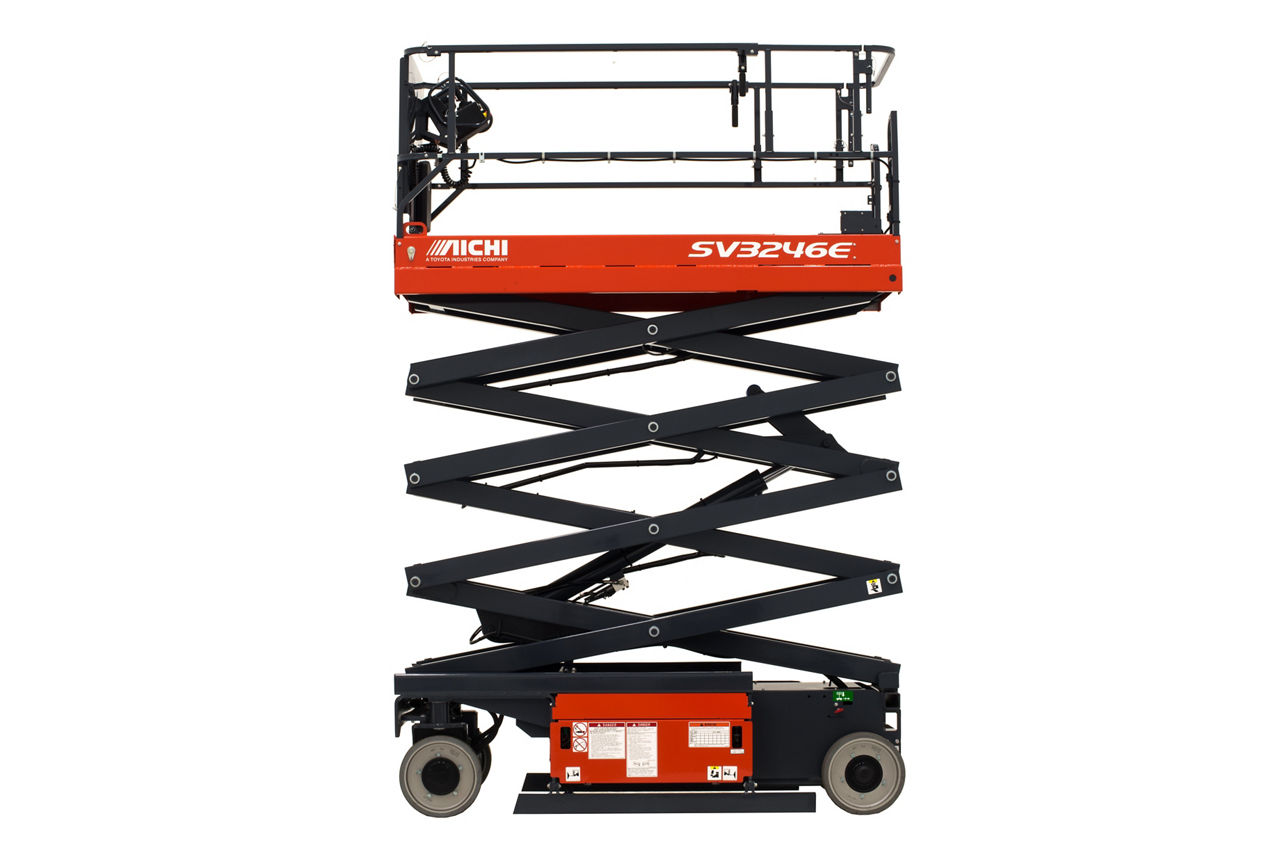

| SV3246E | 32 | 705 lbs. at 382 in. 990 lbs. at 311 in. | 55 | 60 | 46.1 |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
Cutting Edge Performance
The AICHI E-Series Scissor Lifts are engineered to be durable and easy to use. They are loaded with features to tackle your unique challenges and to help make your teams as productive as possible. Thoughtful engineering and versatility make these electric scissor lifts a dependable versatile lifting solution. And, with an efficient AC Drive Motor and robust construction, the AICHI E-Series Scissor Lift is applicable to a wide variety of indoor and outdoor applications.
AICHI Scissor Lift Features
The AICHI E-Series Scissor Lift offers carefully engineered for operator confidence. From its anti-rollback function to speed reduction with an elevated work platform, AICHI will help reduce the risk for operators. A pothole protection system can further stabilize the operator's working platform. Additionally, these machines are equipped with a travel alarm, horn, and excellent visibility in most typical working environments.

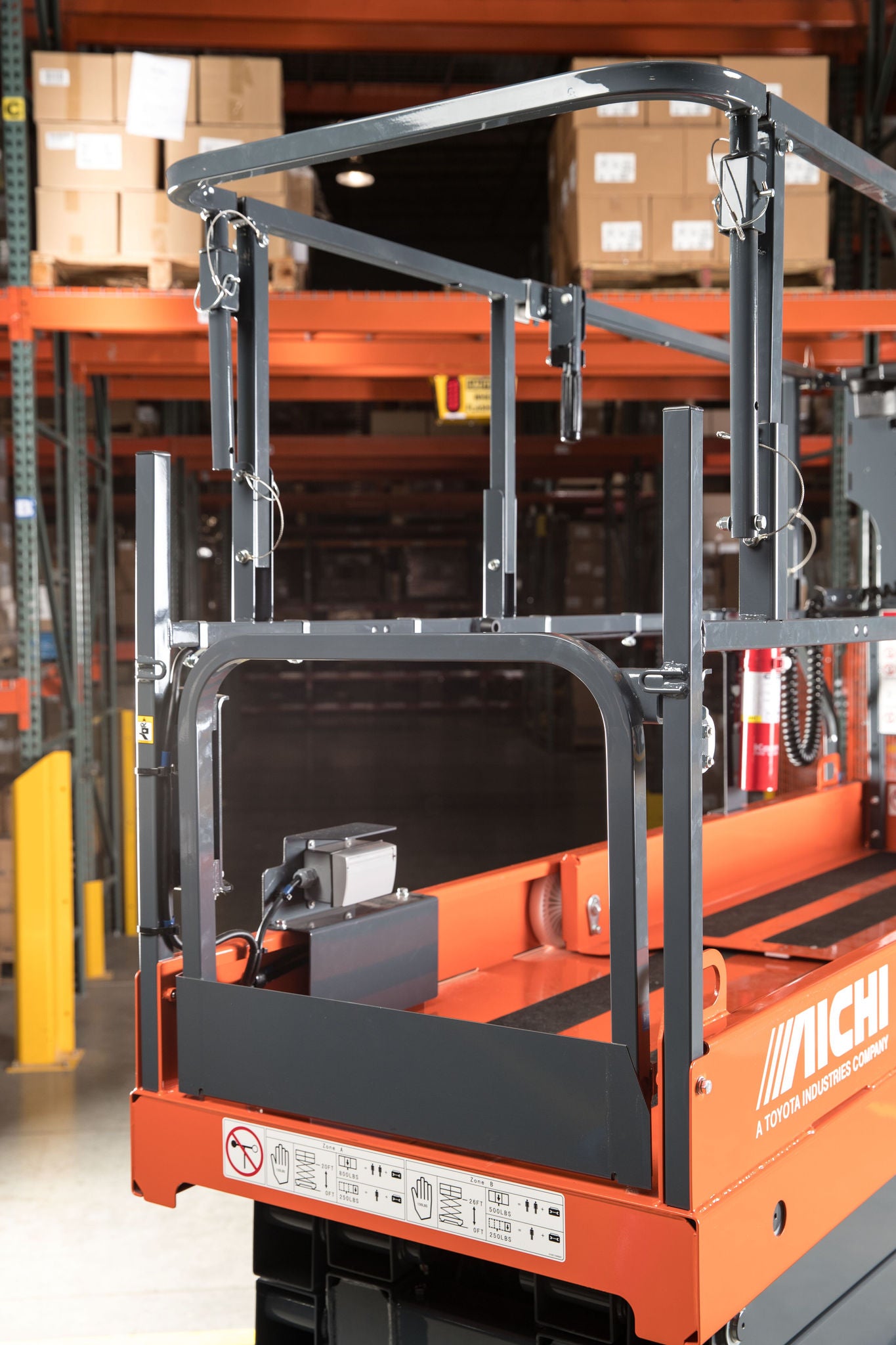

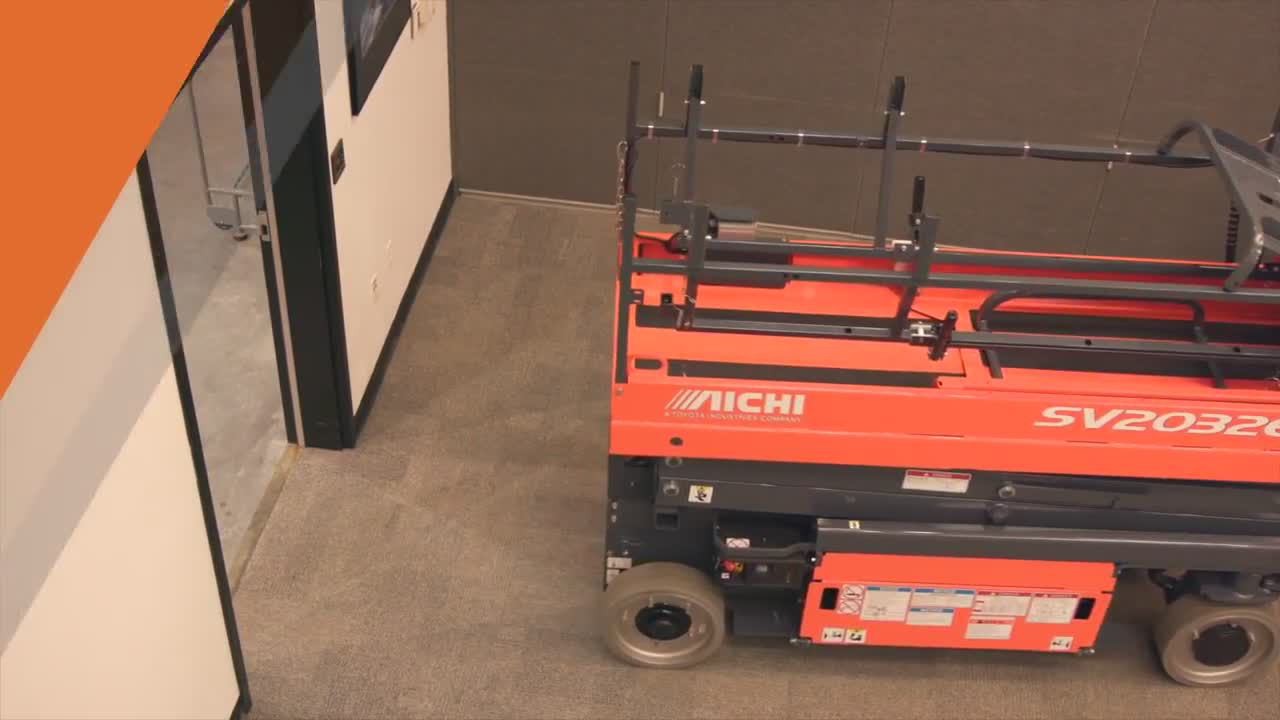

The 1932E model, the smallest and most nimble AICHI Scissor Lift, that can fit through a standard doorway of 80” x 34” with fixed guardrails, making it a powerful ally for your facility maintenance needs. Larger models feature standard fold-down guardrails and a thoughtful design of the detachable control box and cable, so you can adapt to your working space.
Recommended Industries
Options / Accessories
Popular AICHI Scissor Lift Accessories
Make the most of your AICHI Scissor Lift by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company's biggest material handling challenges.
