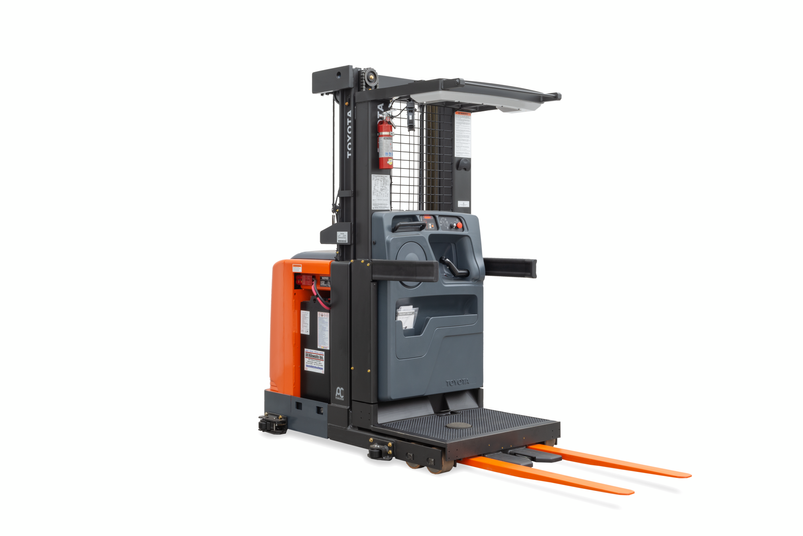

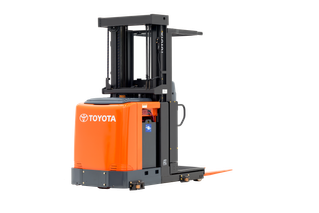

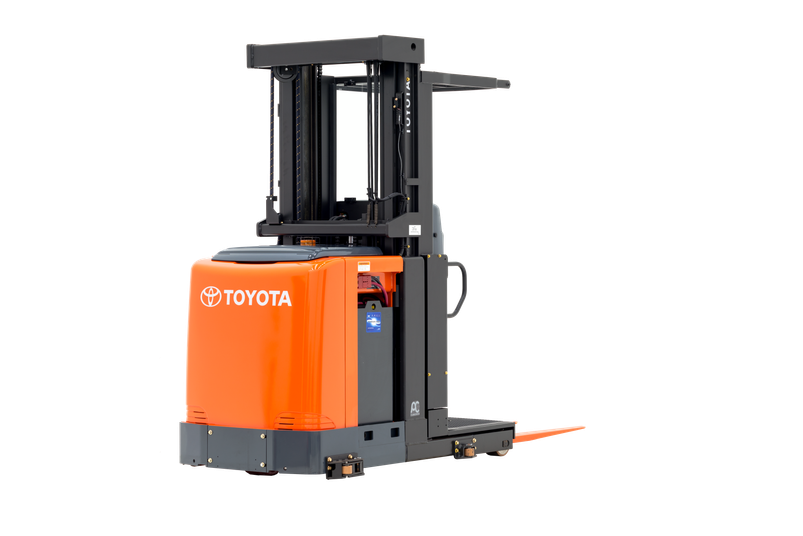

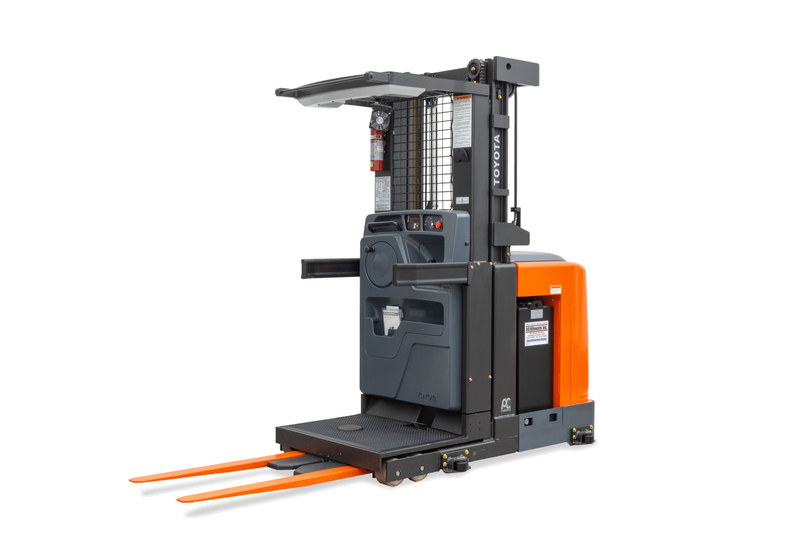

Order Picker
3,000 lb. Lifting Capacity

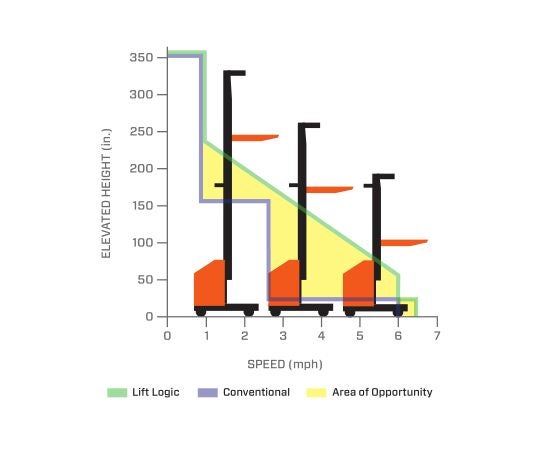

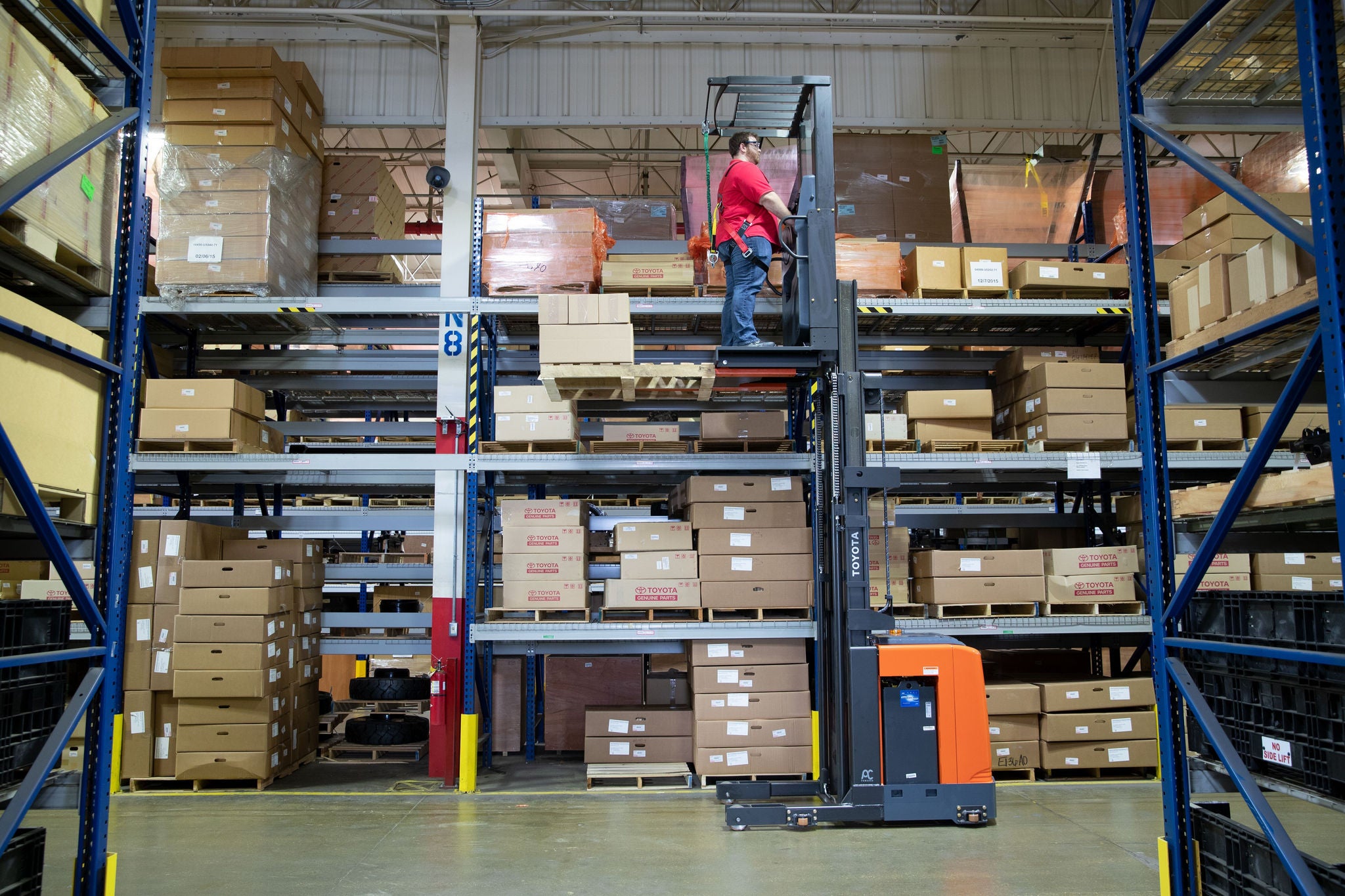

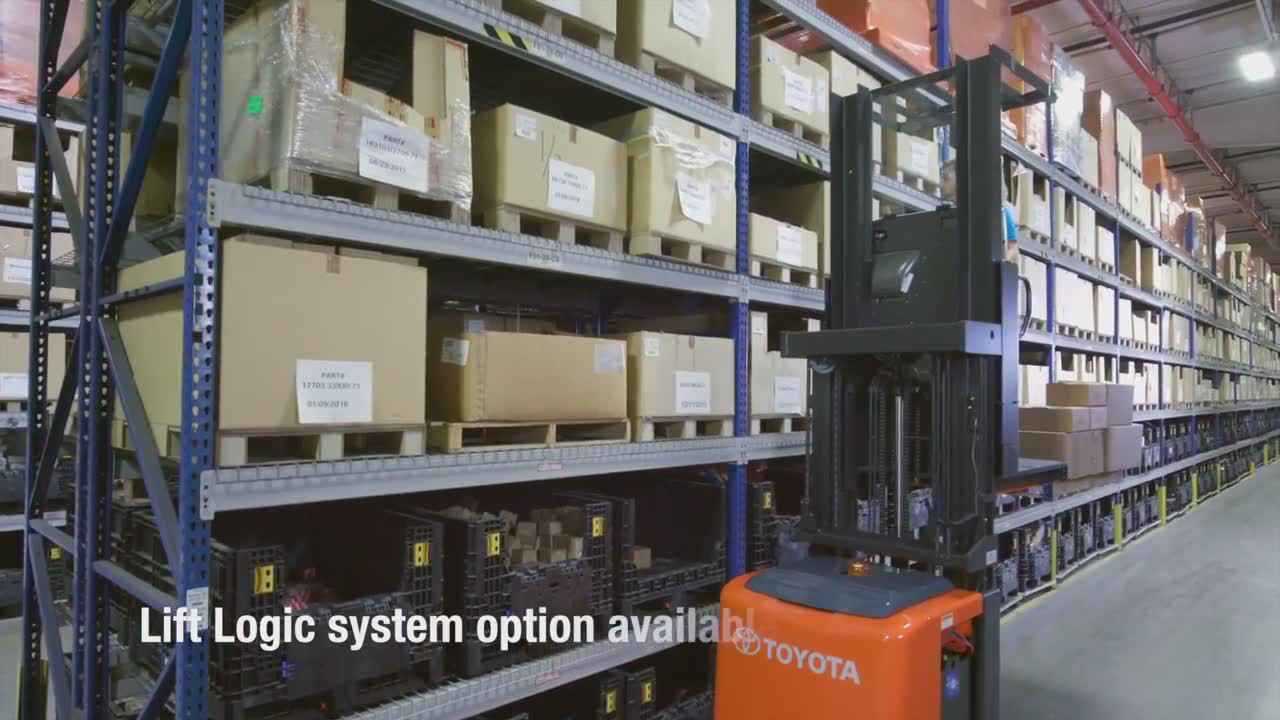

The Toyota Order Picker solves even the most challenging high-reaching warehouse needs. With lift heights up to 390 inches and cushioned mast staging, operators can comfortably reach your tallest racks for order picking. The Toyota Order Picker easily maneuvers narrow aisles in warehouses during case picking, thanks to optional wire guidance and double rail guidance systems. You’ll also drive to optimal efficiency with optional Lift Logic technology that continuously monitors lift height, allowing for optimized travel speed at various heights while still maintaining safe operation.
Models for Order Picker

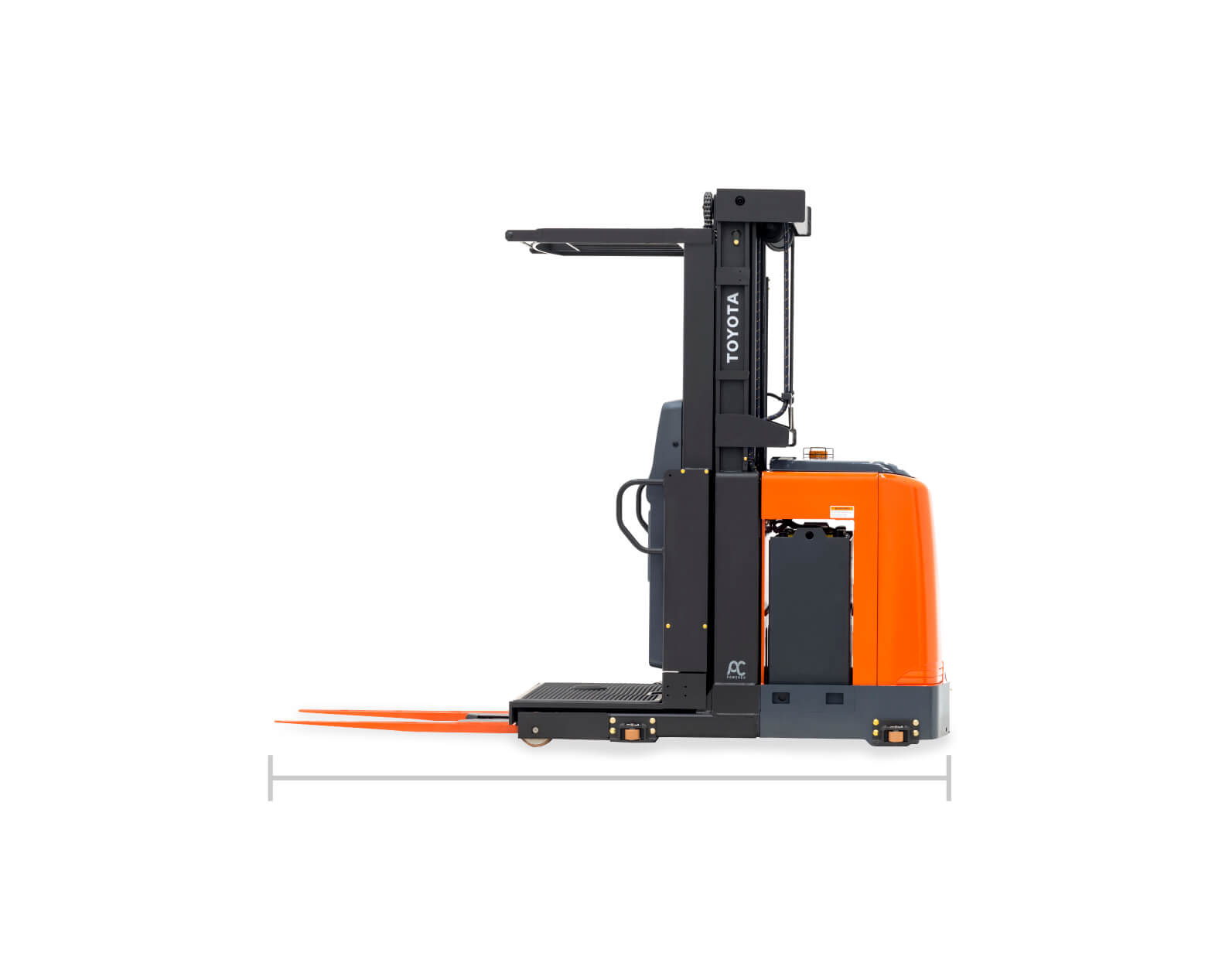

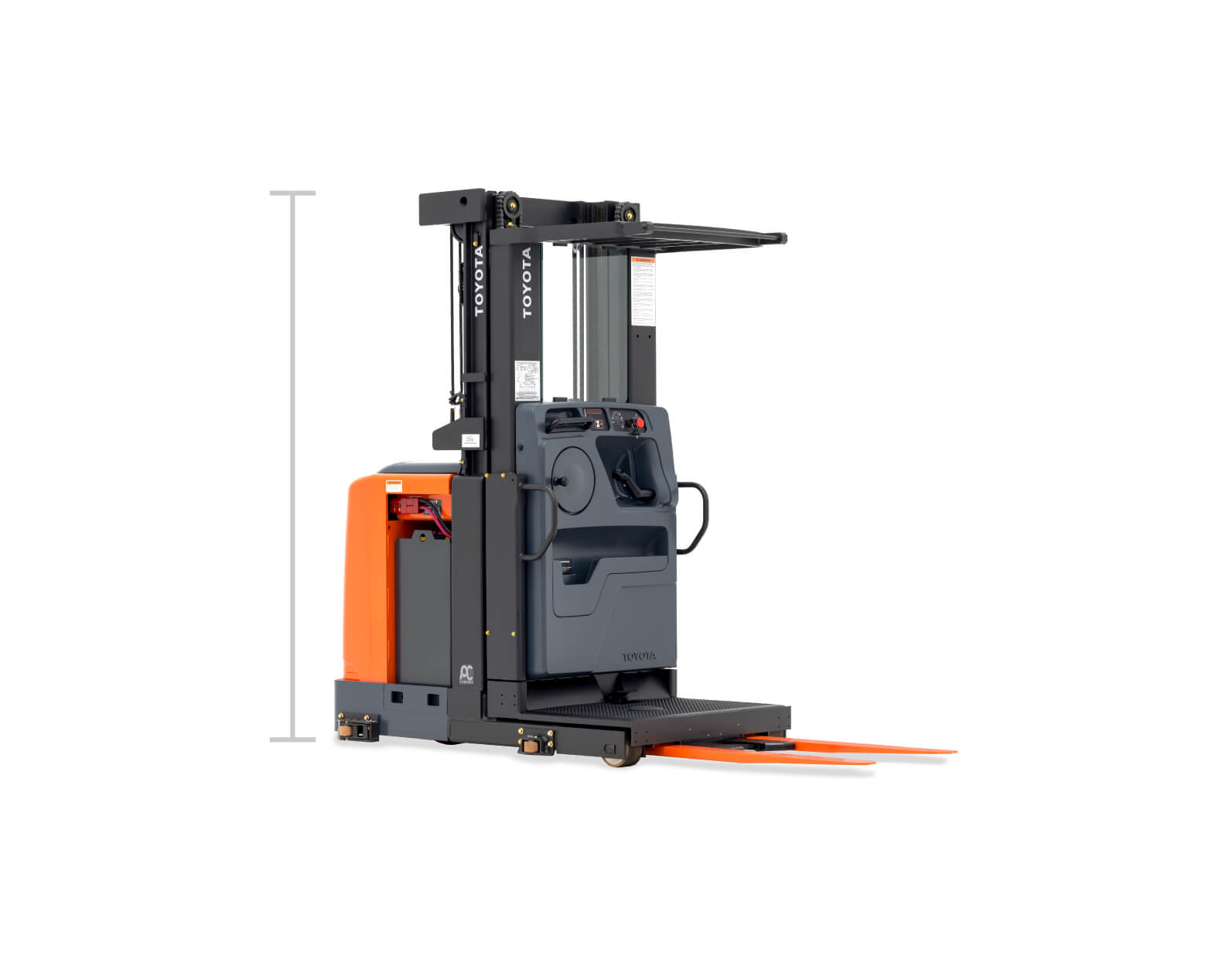

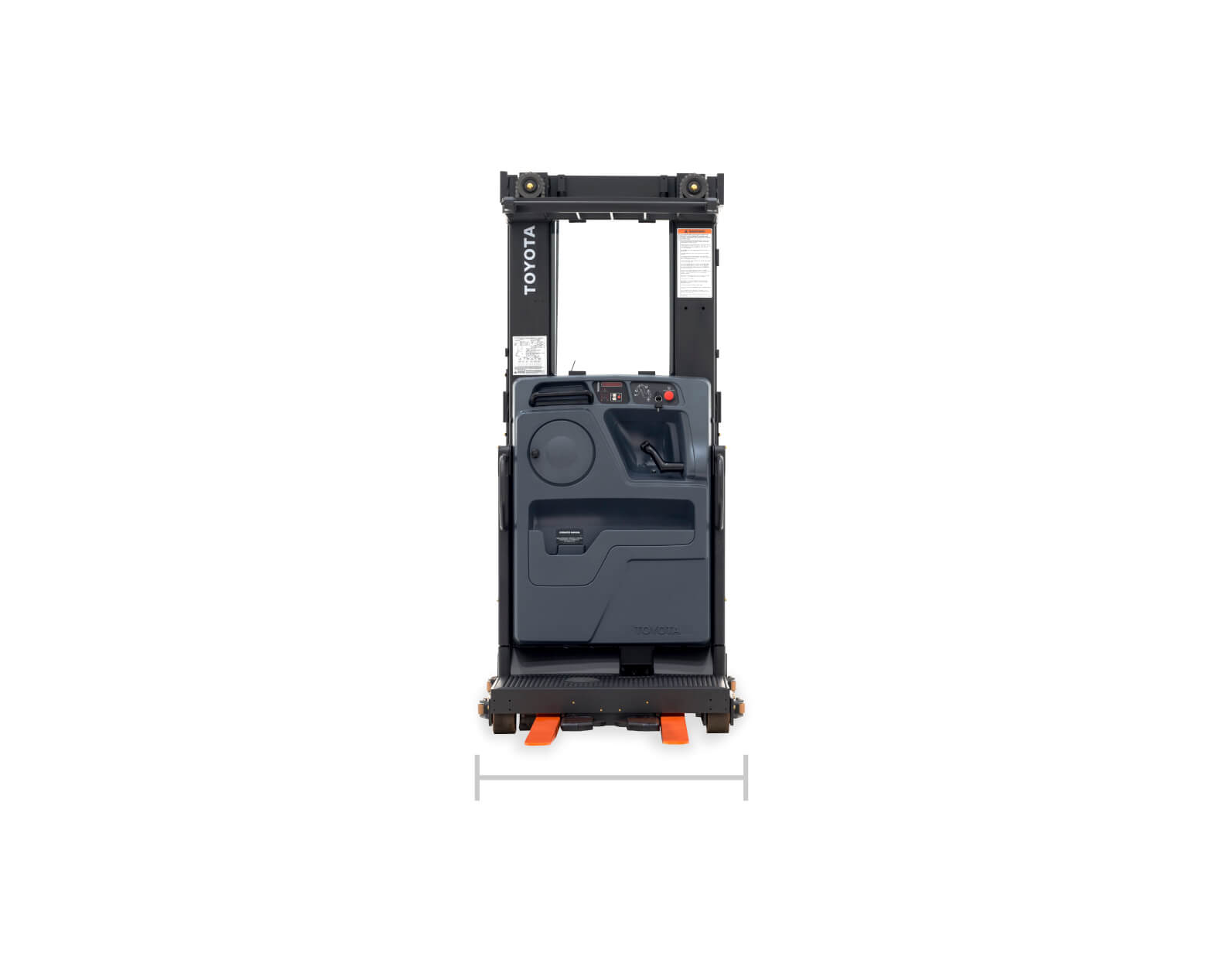

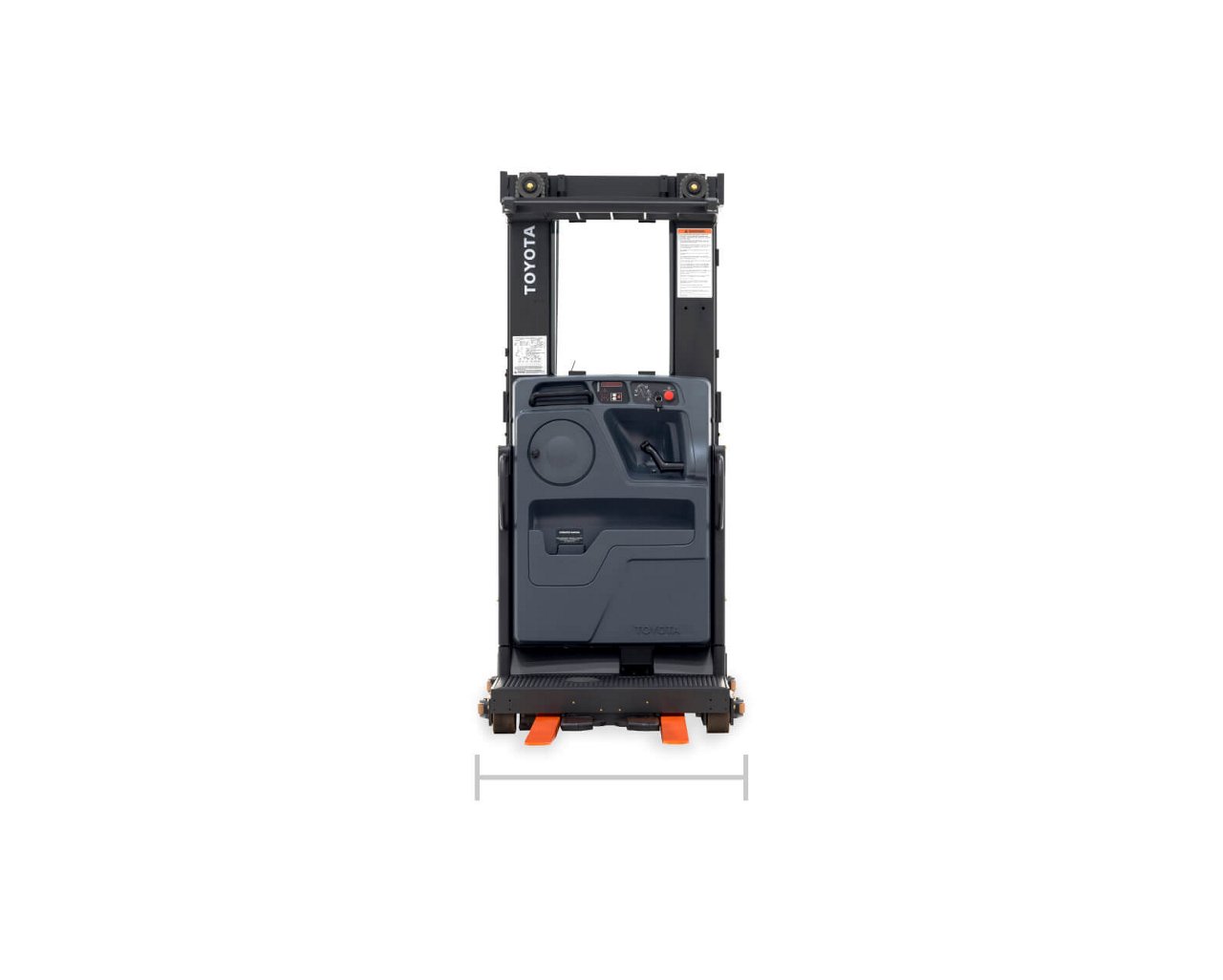

| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Width (in.) | Battery Voltage (V) |
|---|---|---|---|---|---|
| 8BPU15 | 3,000 | 6.5 | 57 | 40 - 60 | 24 |
| 8BPUE15 | 3,000 | 6.5 | 33 | 40 | 24 |
| 8BPUH15 | 3,000 | 6.5 | 80 | 40 - 60 | 36 |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
Elite Efficiency
Toyota’s Electric Order Picker is the productive powerhouse you’ve been searching for. Built with a 36V electrical system, the Order Picker delivers unparalleled performance and is perfectly suited for high-throughput applications. AC Drive and lift motors provide increased energy efficiency and lower maintenance costs due to fewer moving parts.
Powered by Lithium-ion
Powering You Toward a Sustainable Future
At Toyota, we understand how important it is to keep your operation running at peak performance. When utilizing electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation forward, year after year. Enter Toyota’s Lithium-ion batteries. Utilizing a patented design and electrolyte technology to increase your productivity, you’ll never have to worry about losing voltage or performance. You can rely on Toyota’s knowledgeable and dedicated team to support your energy needs.
Order Picker Features
Safety features on the Toyota Order Picker include a full body harness and energy-absorbing tether, which allows the operator to easily pick products while remaining close to the forklift. This forklift also includes a wire mesh mast guard and an automatic locking pallet clamp for added protection and operator handling versatility. Electronic disc brakes are also included, which seals out debris, keeps breaks running cool, and reduces wear for increased uptime and a longer lifespan.
Servicing your Toyota Order Picker is just as simple as operating it. This product comes equipped with a no-tools-required lightweight and impact-resistant cover for ease of removal and added durability. In emergencies, the easily removable cover grants quick access to the emergency lowering valve and other key components, even in narrow aisles. For routine maintenance and repairs, all components are easily accessible within the compartment, including the drive tire, hydraulic filter, and fuse box. Toyota’s AC motors run cool and have no wearable parts, reducing maintenance costs and downtime.
Recommended Industries
Options / Accessories
Popular Order Picker Accessories
Make the most of your Order Picker by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest challenges.
