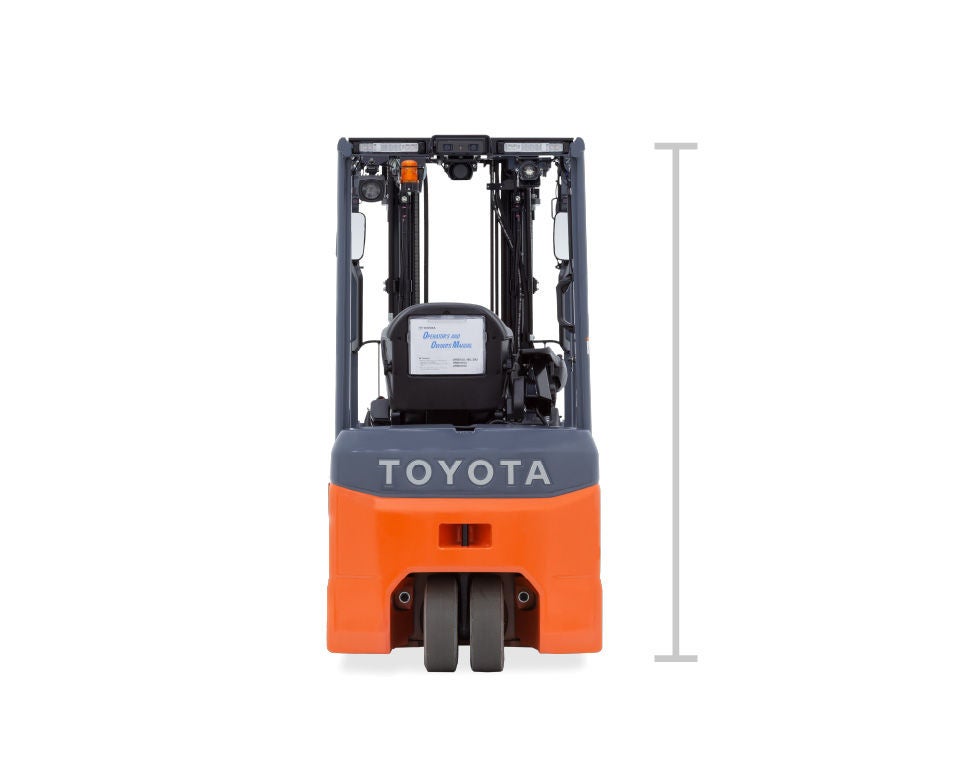

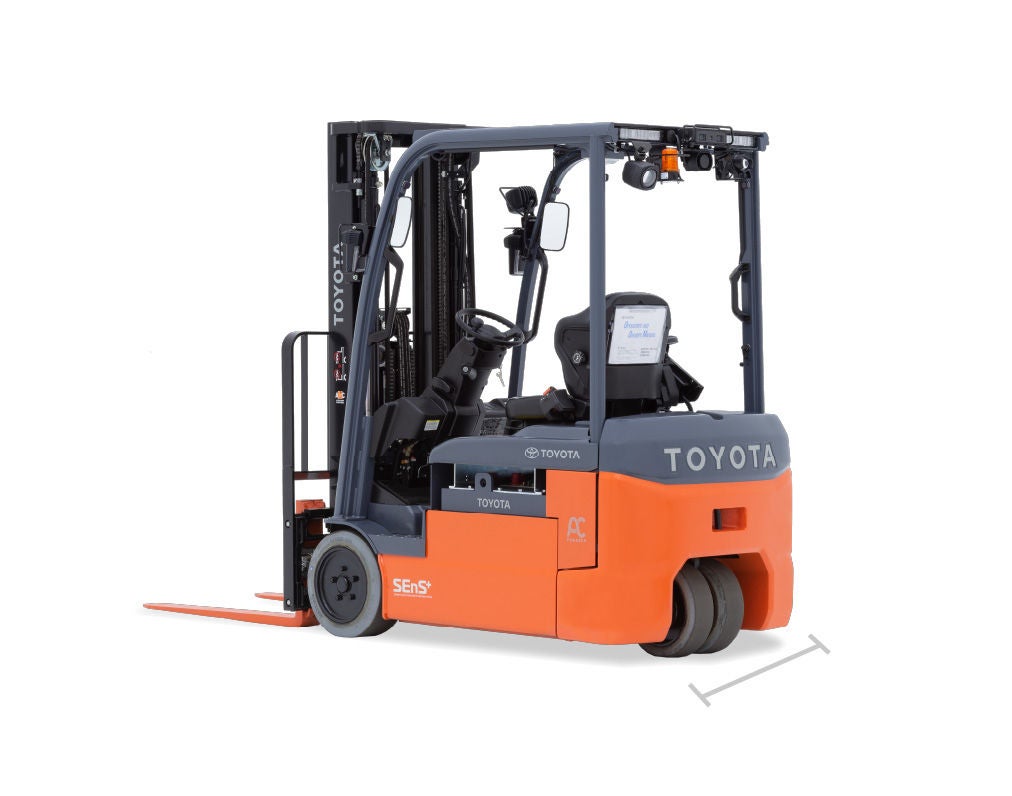

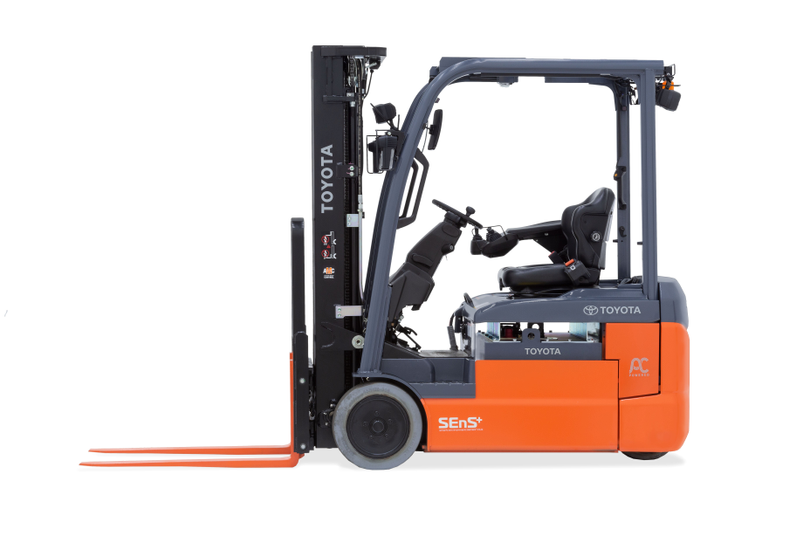

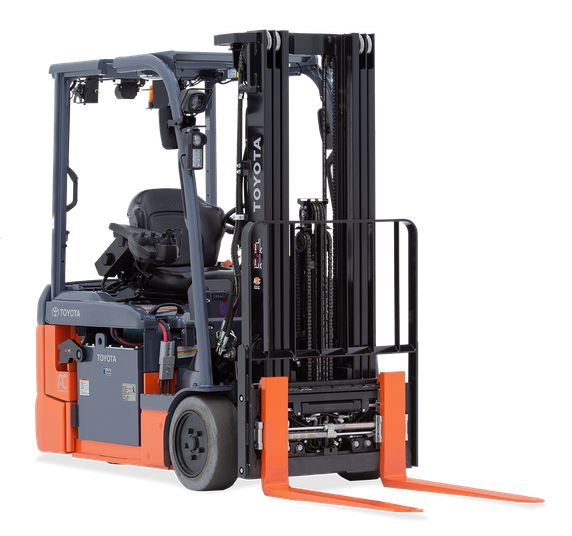

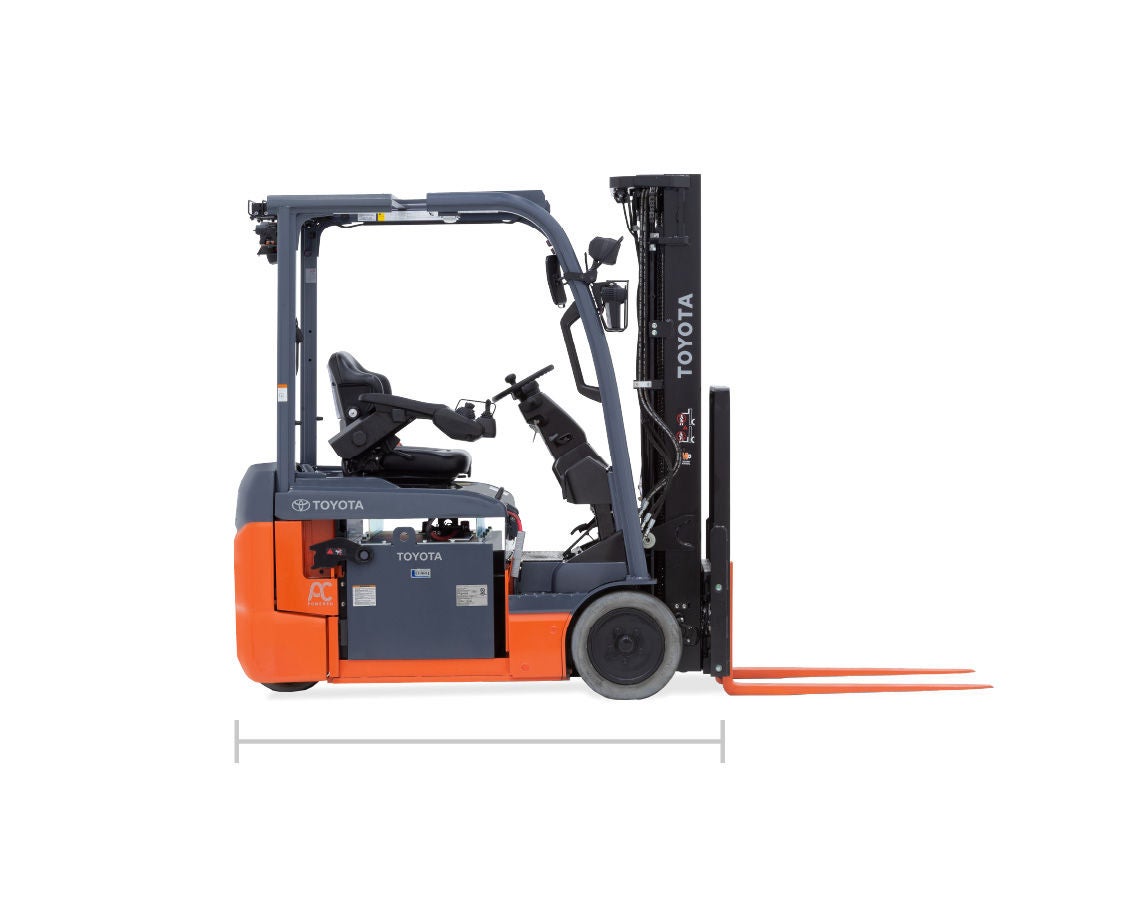

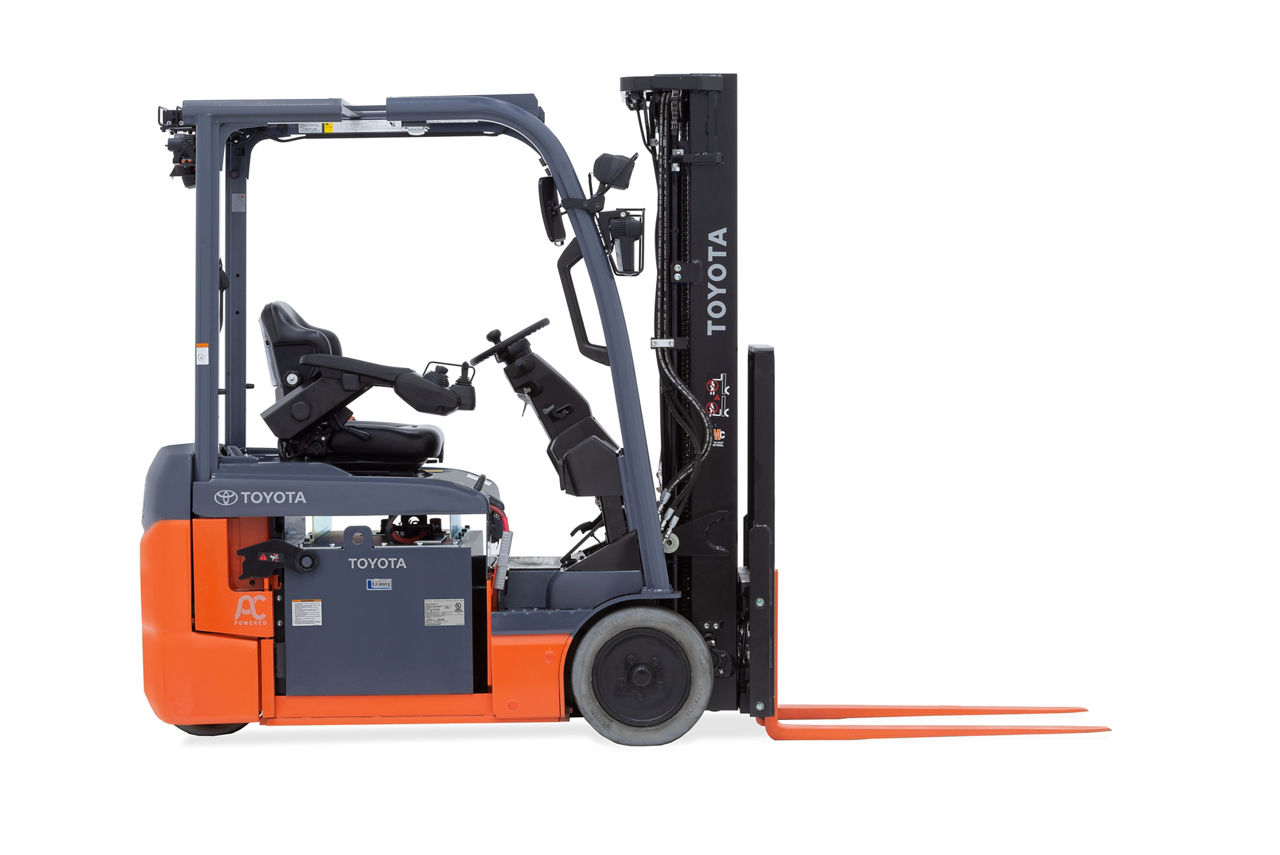

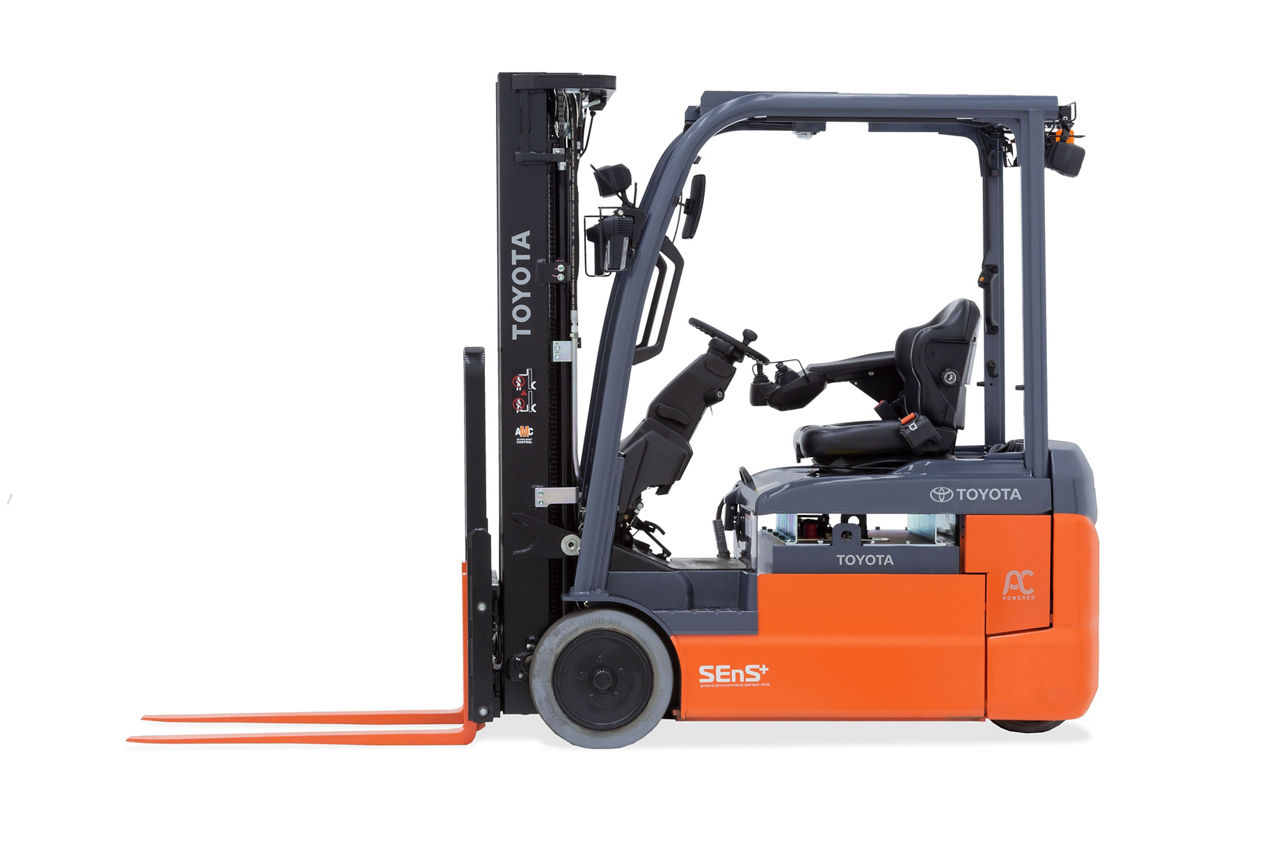

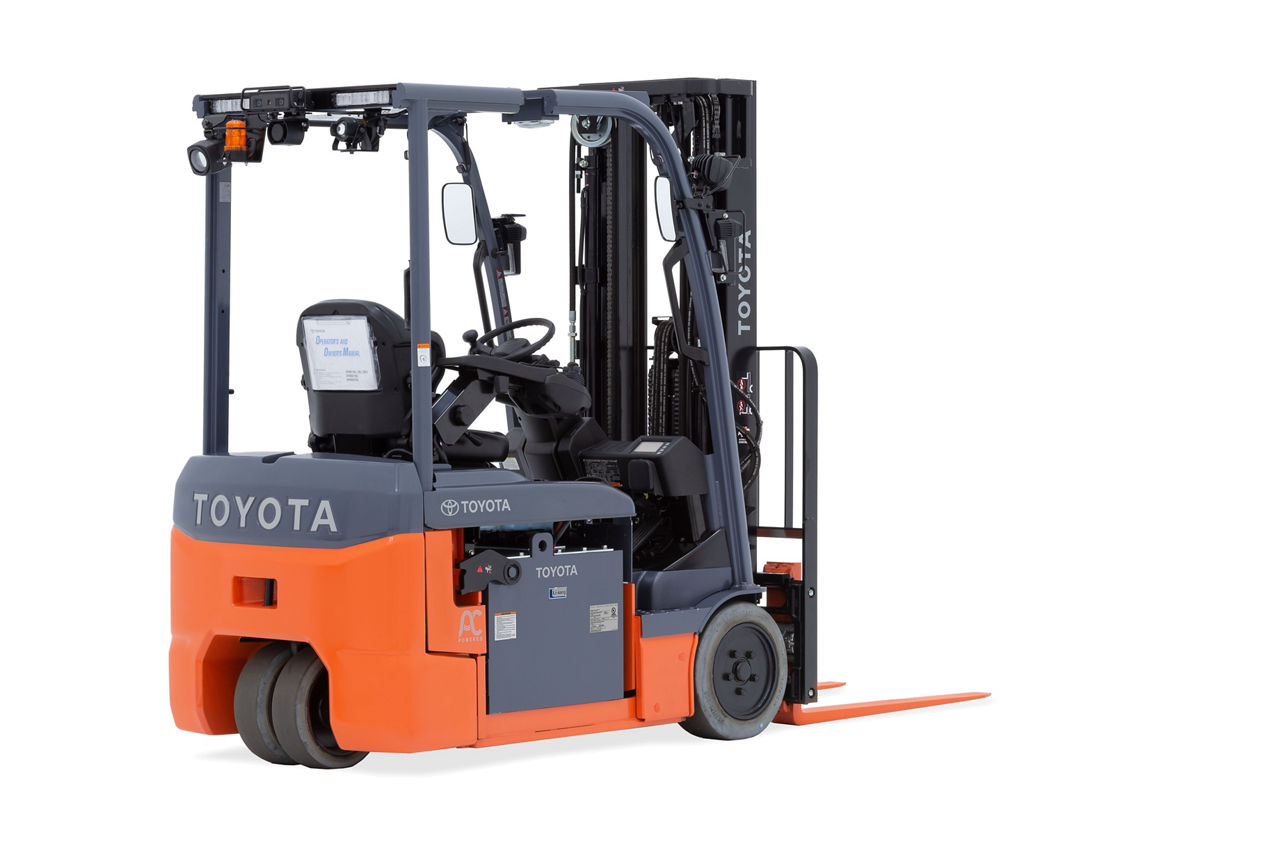

3-Wheel Electric Forklift
3,000 – 4,000 lb. Lifting Capacity
The Toyota 3-Wheel Electric Forklift is a multi-use forklift that leads the industry in run time, travel speeds, and lift/lowering speeds. Available in a “short” model, the ergonomically pleasing, easy-to-maintain 3-Wheel Electric Forklift is an asset to any application, including narrow aisles and tight spaces. With more than 30 advances, this forklift is more versatile than ever. Welcome to a whole new world of uptime, efficiency, and productivity-enhancing performance. Spend less time on maintenance and more time getting things done.
Models for 3-Wheel Electric Forklift
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| 8FBE15U | 3,000 | 9.9 (36V Cushion/Pneumatic), 10.2 (48V) | 77 (36V), 94 (48V) | 27 | 72.1 |
| 8FBES15U | 3,000 | 9.9 (36V Cushion/Pneumatic), 10.2 (48V) | 77 (36V), 94 (48V) | 25 | 68.9 |
| 8FBE18U | 3,500 | 9.9 (36V), 10.2 (48V) | 71 (36V), 89 (48V) | 24 | 74.2 |
| 8FBEH18U | 3,500 | 9.9 (36V), 10.2 (48V) | 71 (36V), 89 (48V) | 24 | 76.6 |
| 8FBE20U | 4,000 | 9.7 (36V), 9.9 (48V) | 67 (36V), 83 (48V) | 22 | 77.2 |
* Based on a 24" load center ** Add load length and clearance
Product specifications may not reflect the most current product details. The most up-to-date product specifications are maintained by authorized Toyota dealers. All specifications must be verified by an authorized Toyota dealer prior to purchase.
Forklift Telematics
MyInsights: Where Smart Comes Standard
At Toyota, we’re committed to delivering seamless, connected solutions to maximize your productivity and efficiency. MyInsights, Toyota’s telematics solution, delivers fleet insights, providing visibility into impact events, equipment tracking, and more. Toyota’s 3-Wheel Electric Forklift comes with MyInsights pre-installed, providing standard telematics data that is free of charge and easily accessible through the MyToyota Portal.
Connectivity doesn’t stop there. MyInsights is also available as an aftermarket kit, making it easy to connect your existing fleet. Comprehensive data and unlimited access are just the beginning. Let Toyota empower you to make smart, more informed business decisions.
Performance

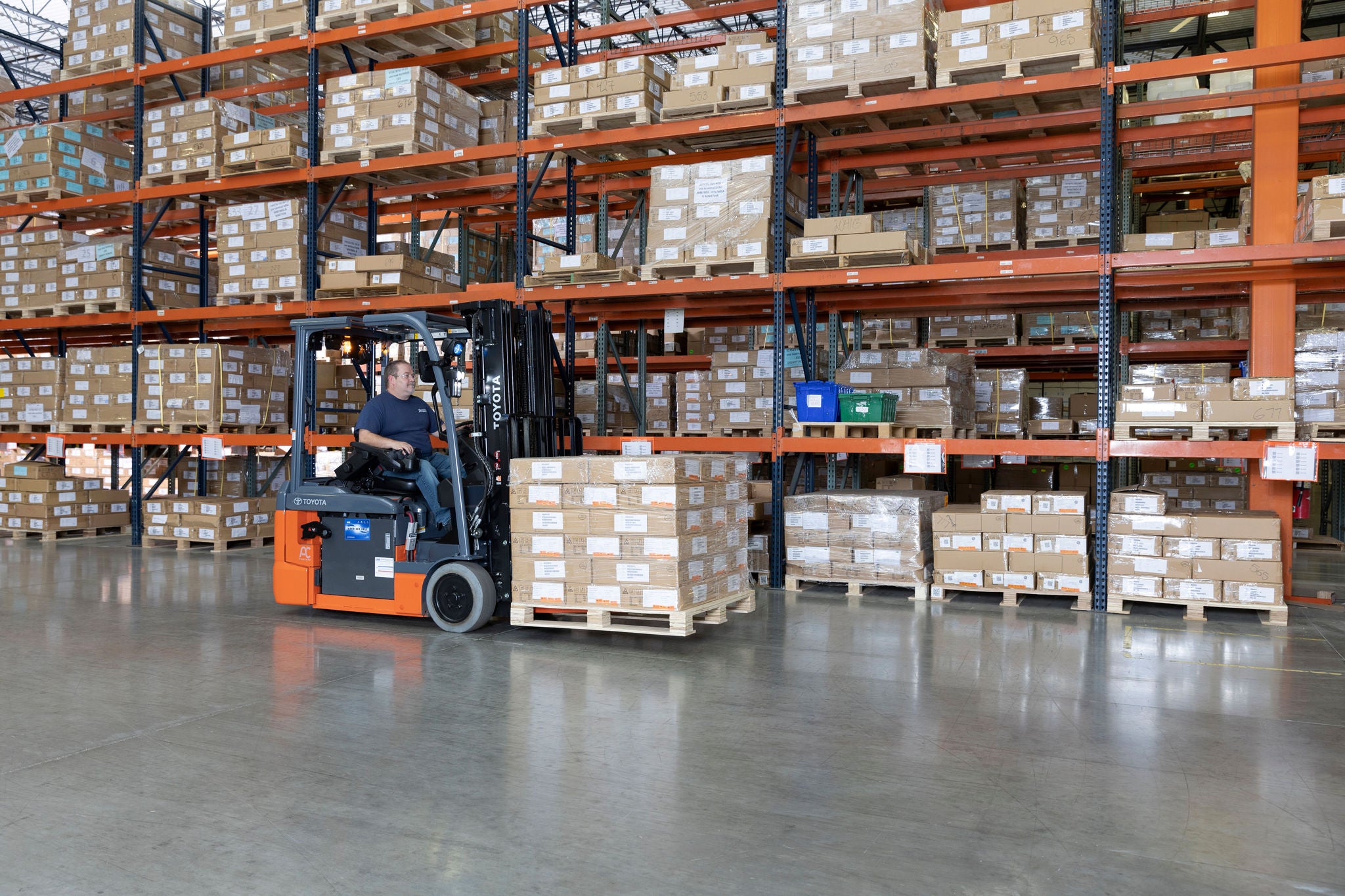

True Multi-Purpose Forklift

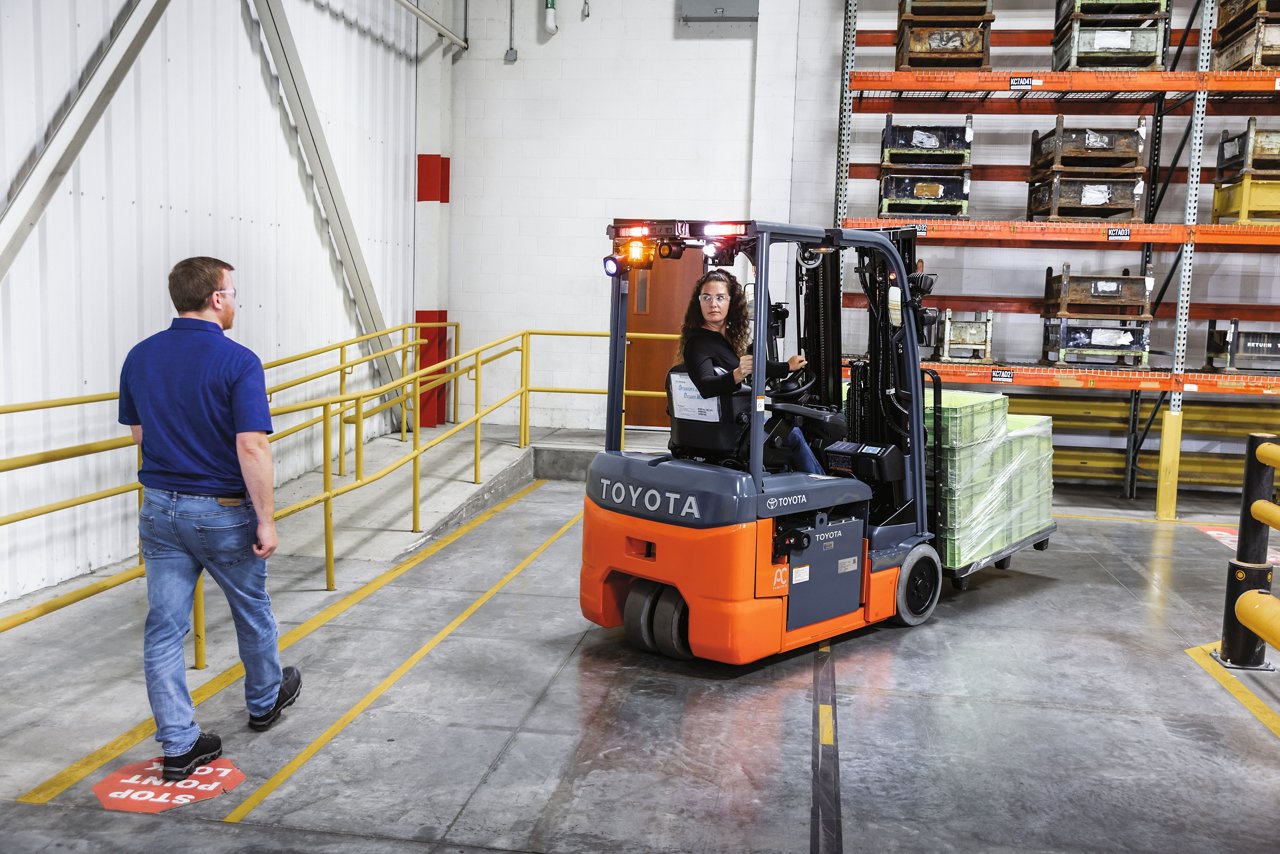

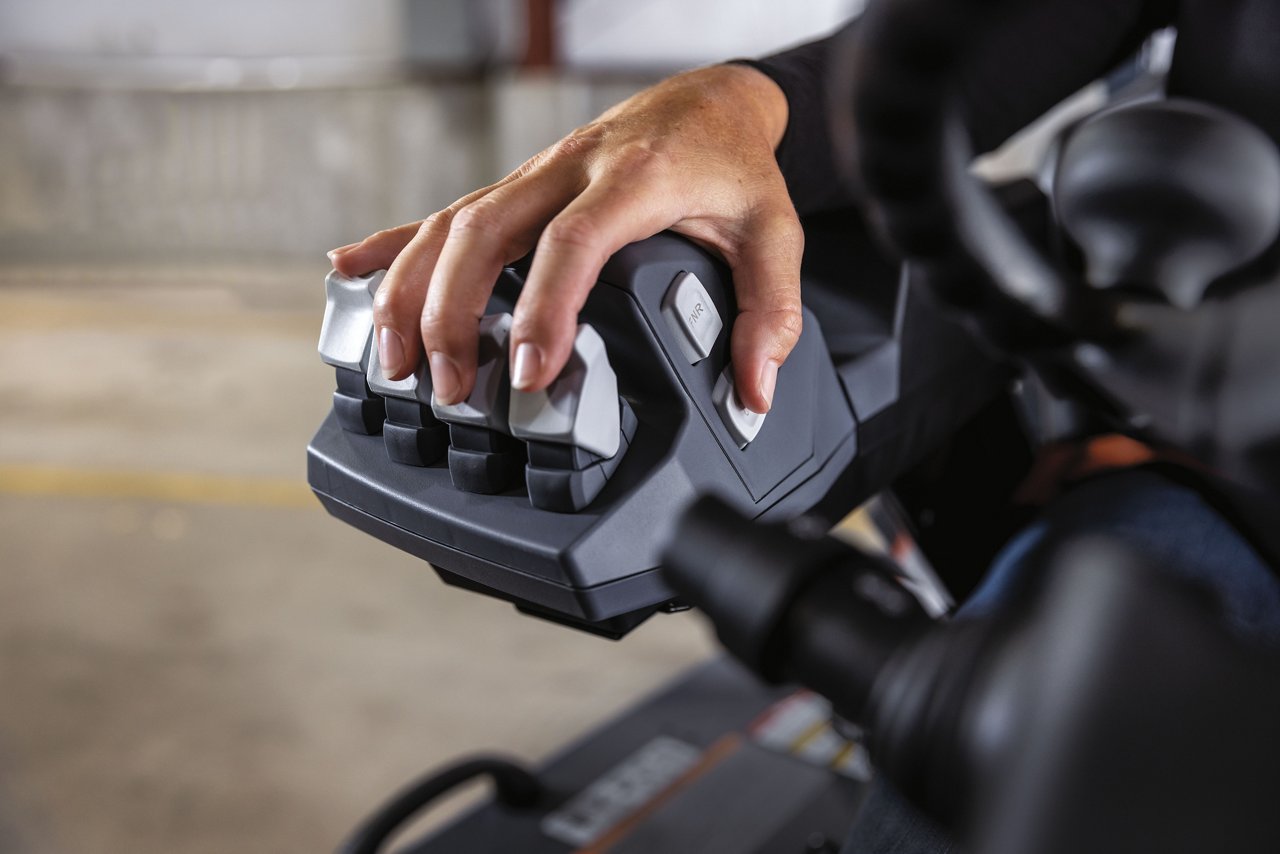

Toyota's 3-Wheel Electric Forklift beats the competition when it counts. Industry-leading acceleration and travel speed, faster lifting, lower speeds, and 40% longer run time on a single charge keep you moving when needed. Navigating the warehouse is easier than ever. Load and unload quickly, with unsurpassed lifting and lowering speeds. Easily control fork placement with smooth, responsive and progressive hydraulics on the mast, and enjoy the added assistance of cornering cruise control.
Powered by Lithium-ion
Powering You Toward a Sustainable Future
At Toyota, we understand how important it is to keep your operation running at peak performance. When utilizing electric forklifts in your operation, you need a powerful, reliable, and sustainable solution that will continue to power your operation forward, year after year. Enter Toyota’s Lithium-ion Batteries. Utilizing a patented design and electrolyte technology to increase your productivity, you’ll never have to worry about losing voltage or performance. You can rely on Toyota’s knowledgeable and dedicated team to support your energy needs.
Features of 3-Wheel Electric Forklift
Toyota Assist features on the 3-wheel electric forklift include Active Mast Control (AMC), which responds automatically to improve the stability of loads handled at high lift heights. This forklift also includes load and height sensing swing speed controls, a bolt-on top guard, and forward tilt lift speed limitations. Standard wet disc brakes seal off debris, keep brakes running cool, and reduce wear to increase uptime and extend service life.
Toyota designs forklift models with the best components and meticulously planned integrated systems that deliver intuitive and reliable performance on a daily basis. Toyota forklifts don't usually require service, but when they do, it's quick and easy, by design. Toyota's legendary quality means more productivity throughout the lifecycle of your forklift, along with lower repair costs. The 3-wheel electric forklift comes with maintenance-free AC motors, as well as a programmable maintenance timer. This forklift has 100% built-in programming and diagnostics, so you don't have to remember when it's time to service your forklift.
Recommended Industries
Options / Accessories
Popular 3-Wheel Electric Accessories
Get the most out of your 3-wheel Electric Forklift by considering additional options and accessories. A Toyota forklift can be designed to meet your unique operational needs. An authorized Toyota dealer can help you identify the best forklift for your material handling challenges.
