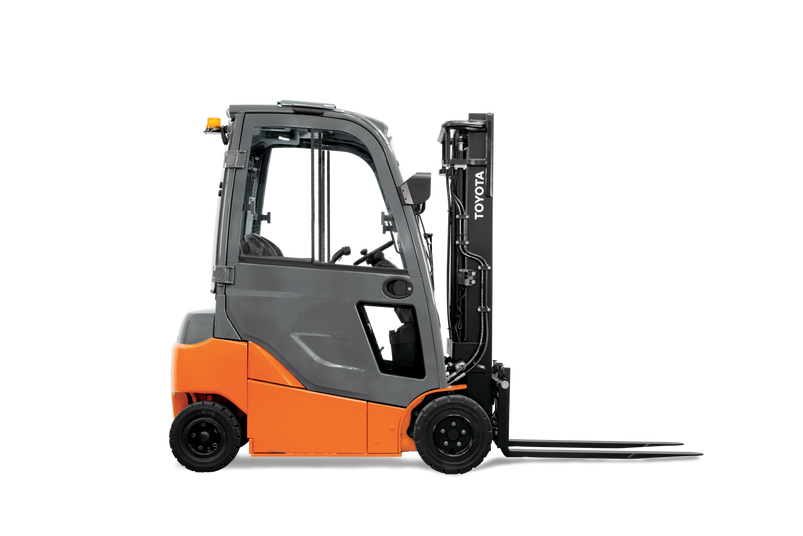

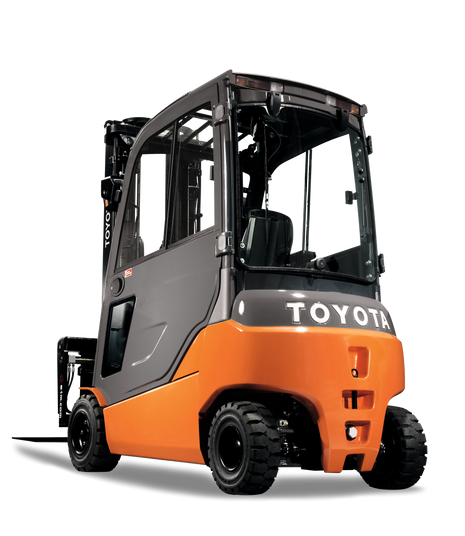

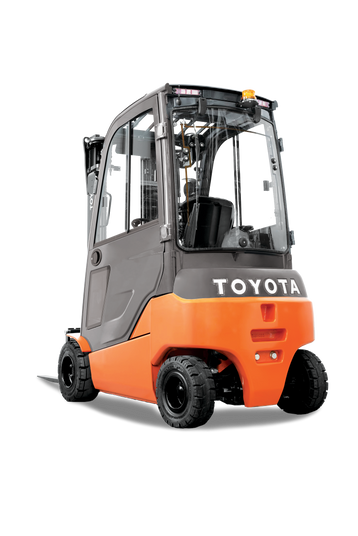

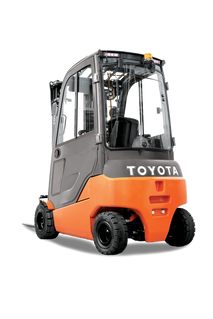

48V Electric Pneumatic Forklift
In material handling, the last things you need are limitations. Utilizing different trucks for indoor and outdoor work creates inefficiencies that ultimately impact your bottom line. When you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation indoors, look no further than Toyota’s 48V Electric Pneumatic Forklift.
Models for 48V Electric Pneumatic Forklift
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| 8FBH15 | 3,000 | 9 | 83 | 12-19 | 85.6 |
| 8FBM16T | 3,000 | 12.4 | 84.6 | 15.3 - 24.2 | 93.2 |
| 8FBMK16T | 3,000 | 12.4 | 84.6 | 17.3 - 23.6 | 89 |
| 8FBH18 | 3,500 | 9 | 73 | 11-18 | 86 |
| 8FBM18T | 3,500 | 12.4 | 82.7 | 15.3 - 21 | 93.2 |
| 8FBH20 | 4,000 | 9 | 71 | 15-22 | 94.5 |
| 8FBM20T | 4,000 | 12.4 | 74.8 | 13.4 - 18.3 | 93.2 |
| 8FBMK20T | 4,000 | 12.4 | 74.8 | 13.4 - 18.3 | 90.2 |
| 8FBH25 | 5,000 | 8.7 | 67 | 12-20 | 95.7 |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
Versatility For Any Operation

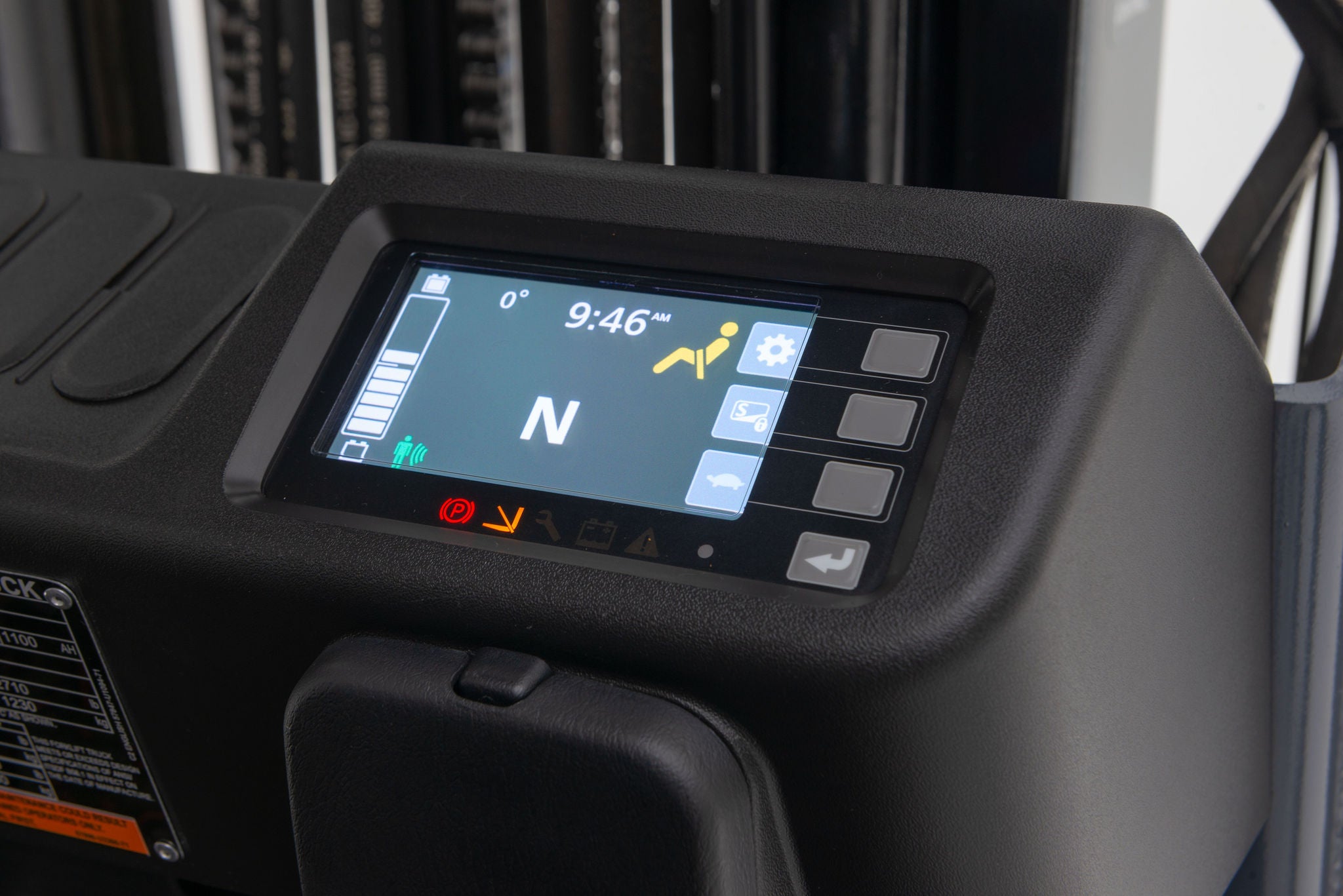

Toyota designed and built AC Motors to power the 48V Electric Pneumatic to new levels of productivity and efficiency while delivering low-maintenance operation. Regenerative braking returns unused energy to the battery during operation. The multifunction display offers truck information right at your fingertips.
Add in completely programmable performance and power select capabilities to fine-tune your operation, and you have one powerful and versatile machine designed to increase your productivity and profitability.
Power Studies
Powering You Forward
Let Toyota Energy Consultants be your guide in understanding your operation’s energy consumption. Conducting a power study is a crucial step in determining which energy source is best for your operation. Toyota’s Power Study removes the guesswork from deciding which power solution is best for our electric or internal combustion units.
Data is generally collected for 2-4 weeks on the heaviest used trucks, offering information on run-time, idle, available charge, and amp hours. The data collected will provide you with visibility on what times equipment is being used as well as shift volume. Toyota Energy Consultants not only look at battery usage, but also at ways to eliminate waste and recommendations for customized solutions. When you’re ready to take control of your energy usage, partner with Toyota.
48V Electric Pneumatic Features
An automatic parking brake engages when the truck stops and disengages when the driving direction is selected and the accelerator is pressed. Standard wet disc brakes deliver smooth, powerful stopping power with minimal maintenance costs. Hydraulic power steering provides a 100° steering angle and comes with steering synchronization to maintain steering wheel alignment. Standard automatic parking brakes engage when the truck stops and disengage when the driving direction is selected, and the accelerator is pressed. *

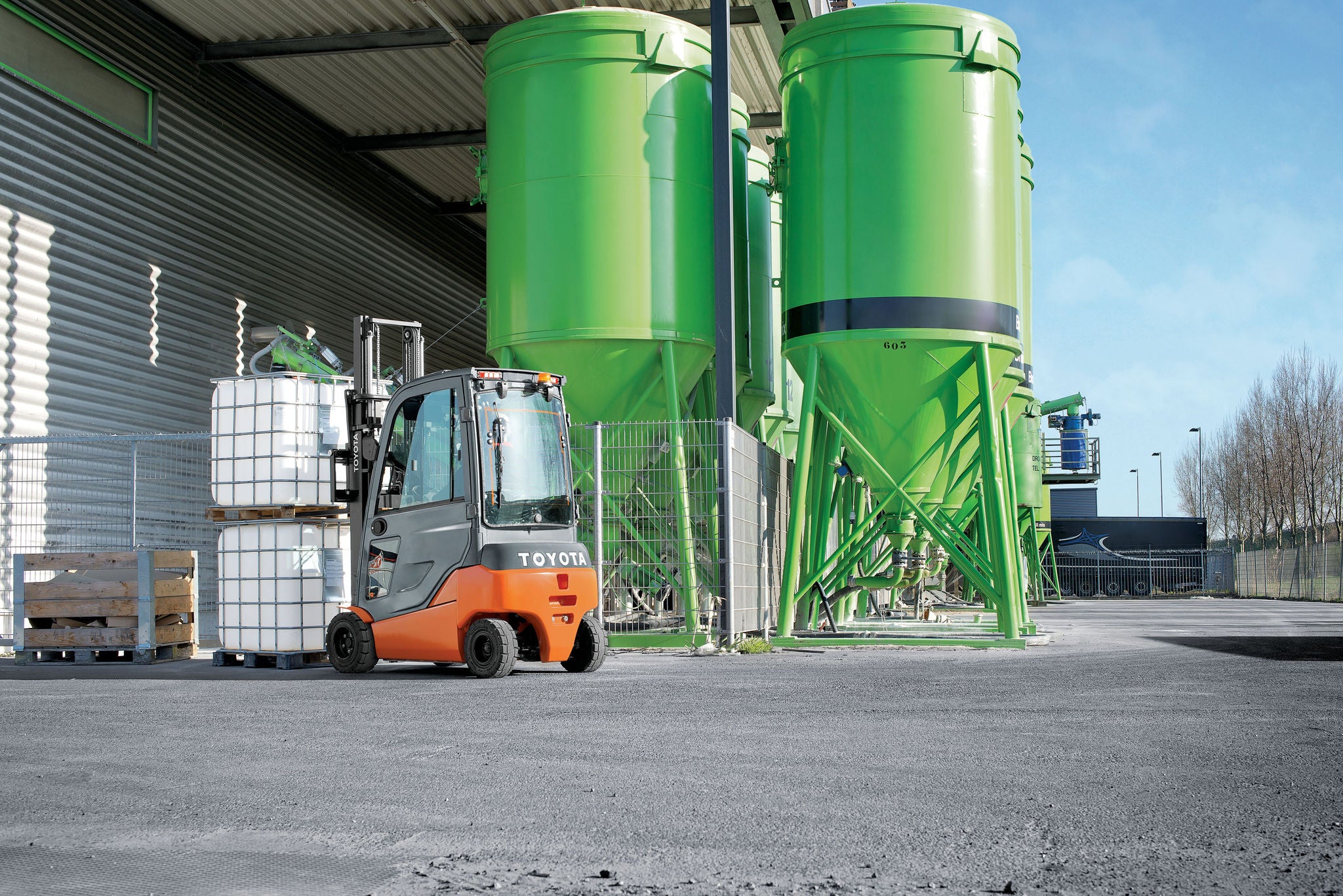

Built using the Toyota Production System, this 48V Electric Pneumatic Forklift gives operators the highest levels of quality, durability, and reliability of internal combustion trucks, with the speed and economic advantages of an electric forklift. This forklift can operate indoors and out while protecting operators from the elements.
*only available on models 8FBM(K)/8FBH
Recommended Industries
Options / Accessories
Popular 48V Electric Pneumatic Accessories
Make the most of your 48V Electric Pneumatic Forklift by considering additional options and accessories. A Toyota Forklift can be designed to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest challenges.
