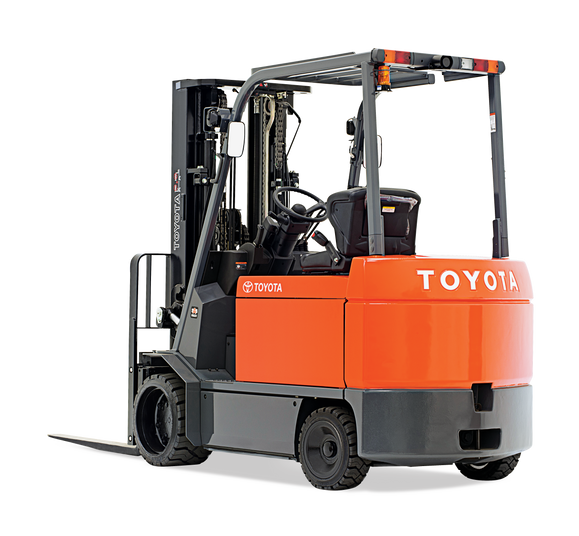

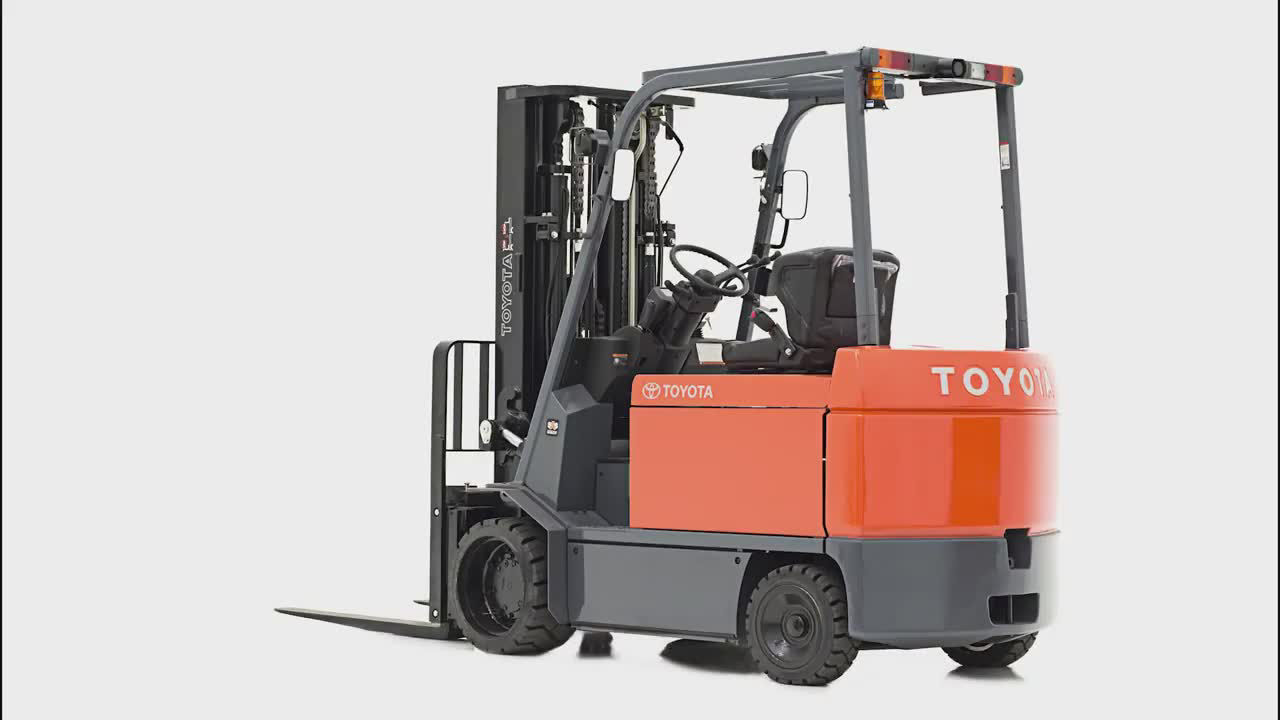

Large Electric Forklift

Toyota's Large Electric Forklift gets the job done quietly and reliably. With 12,000 pounds of lifting power, it's a zero-emissions ride that is perfect for any warehouse, even in the food and beverage industries. This ruggedly designed electric forklift has been built to withstand your toughest jobs while keeping the operator comfortable and productive.

Special Features
  • 8,000-12,000 lb. Lifting Capacity
  • System of Active Stability (SAS)™
  • AC Drive Motor


Large Electric Forklift Specifications

Learn more about the current available Toyota Large Electric models.

8,000 - 12,000

Load Capacity


7.5 - 10.9

Travel Speed Full Load


36 / 48

Electrical System

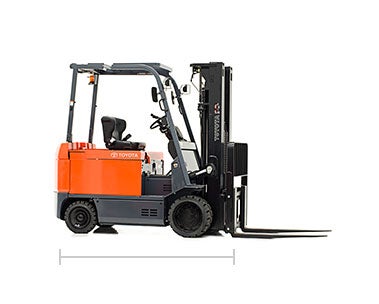

Length to Forkface

98.8 - 113 in.

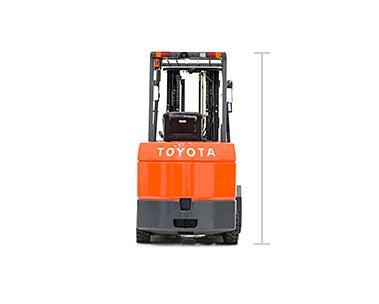

Overhead Guard Height

90 - 93.3 in.

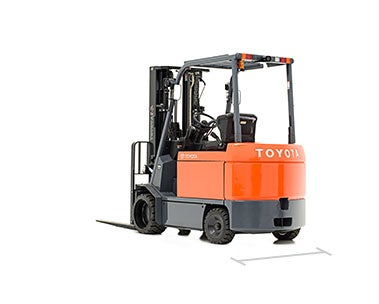

Overall Width

47.6 - 53.1 in.

Models for Large Electric Forklift

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Basic Right Angle Stack (in.)
7FBCU35 8,000 8.4 (36V), 10.9 (48V) 51.2 (36V), 72.9 (48 V) 16 (36V), 22 (48V) 102.6
7FBCU45 10,000 7.8 (36V), 10.9 (48V) 43 (36V), 57 (48V) 13 (36V), 18 (48V) 106.7
7FBCU55 12,000 7.5 (36V), 9.3 (48V) 37 (36V), 53 (48V) 14 (36V), 20 (48V) 116.9

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.


Proven Powerhouse

Toyota's energy-efficient AC motor makes the Large Electric Forklift the perfect high-capacity solution for lifting and loading heavy weights. This forklift is an environmentally friendly, emission-free solution for sensitive applications. Smoother acceleration, increased uptime, and less frequent scheduled maintenance are also part of the package. Toyota’s Large Electric Forklift speaks softly but carries a heavy load.

Large Electric Forklift Features

The Large Electric’s operator compartment is designed to make the forklift work as an extension of the operator’s body. With intuitive, well-placed controls. Easy-to-read displays. And clear sightlines all around. Equally important, the operator compartment is also designed for comfort, even over a long shift – with a premium seat, low entry and exit steps, and a heavy-duty non-slip floor mat to minimize noise, heat, and vibration.

Safety features on the Large Electric Forklift include Toyota’s System of Active Stability (SAS)™, which automatically detects potentially unsafe conditions and engages additional safety features for increased operator protection and reduced product and forklift damage. This forklift also comes with welded, roll-formed overhead guard pillars to provide maximum operator protection with superior entry/exit and load visibility. Additional features include:


  • Operator Presence Sensing System (OPSS)

  • Key Lowering Interlock

  • Double-Action Parking Brake

  • Electric Horn

Toyota’s Large Electric Forklift is built with superior components and meticulously engineered integrated systems that deliver intuitive, dependable performance daily. Toyota Forklifts don't often require service, but when they do, it's fast and easy — by design. Legendary Toyota quality means more productivity over the lifecycle of your forklift, along with lower repair costs. Toyota’s Large Electric Forklift comes with easy-to-access hydraulic motor and controller along with a no-tools required floorboard along with a planned maintenance indicator.

Compare Models

Toyota Material Handling Products

Compare Toyota products similar to the Large Electric Forklift.

This Product

Main product
Large Electric Forklift

There are no reviews on this product at this time

Options / Accessories

Popular Large Electric Accessories

Make the most of your Large Electric Forklift by considering additional options and accessories. A Toyota Forklift can be customized to meet your unique operational needs. An authorized Toyota Dealer can help you configure the best forklift that can help you with your company's material handling challenges.

Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).

indoor outdoor moving mast reach truck

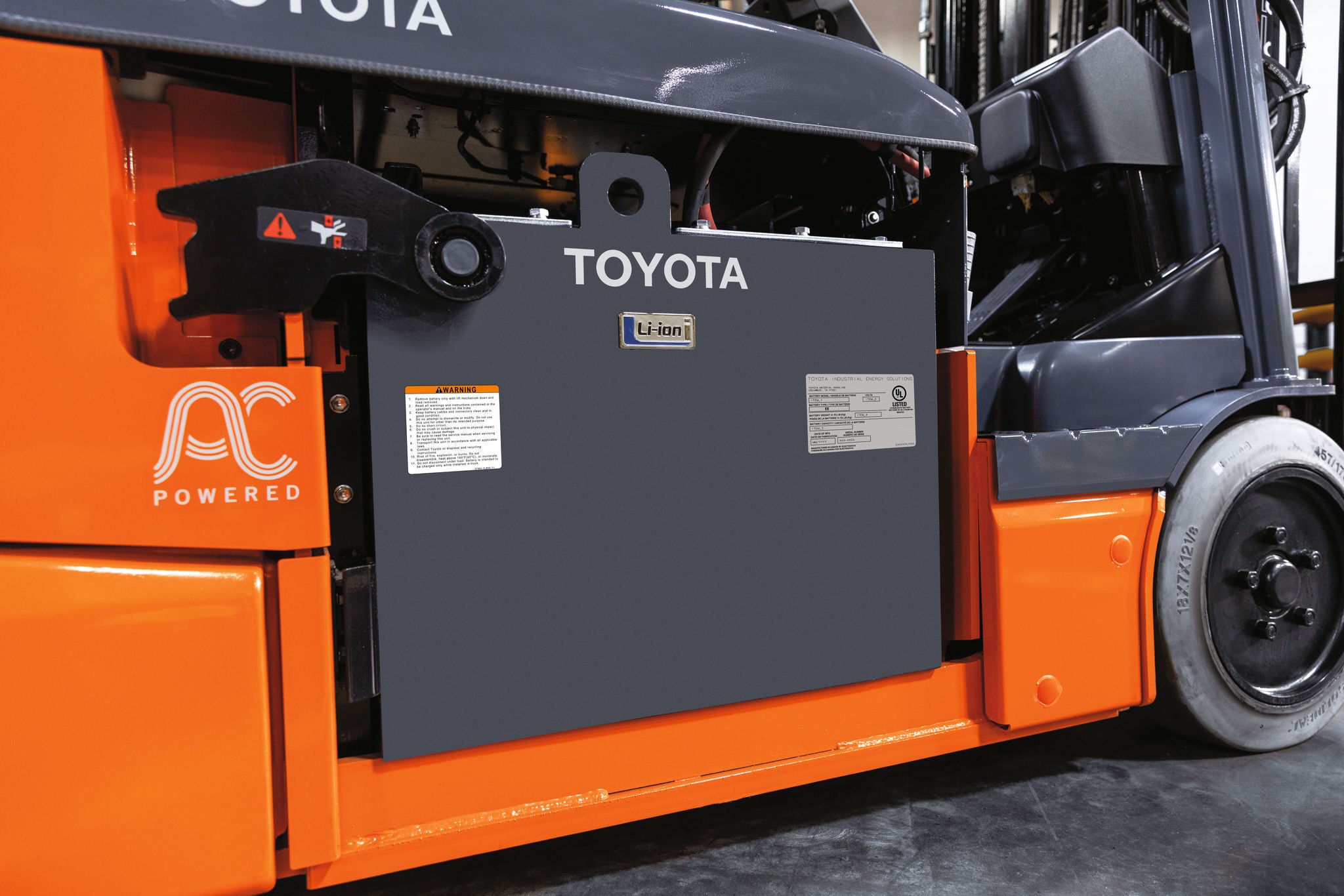

Battery Slide-Out

This option allows the battery to slide out of the side of the battery compartment.

3 wheel electric Close-up LIB Battery

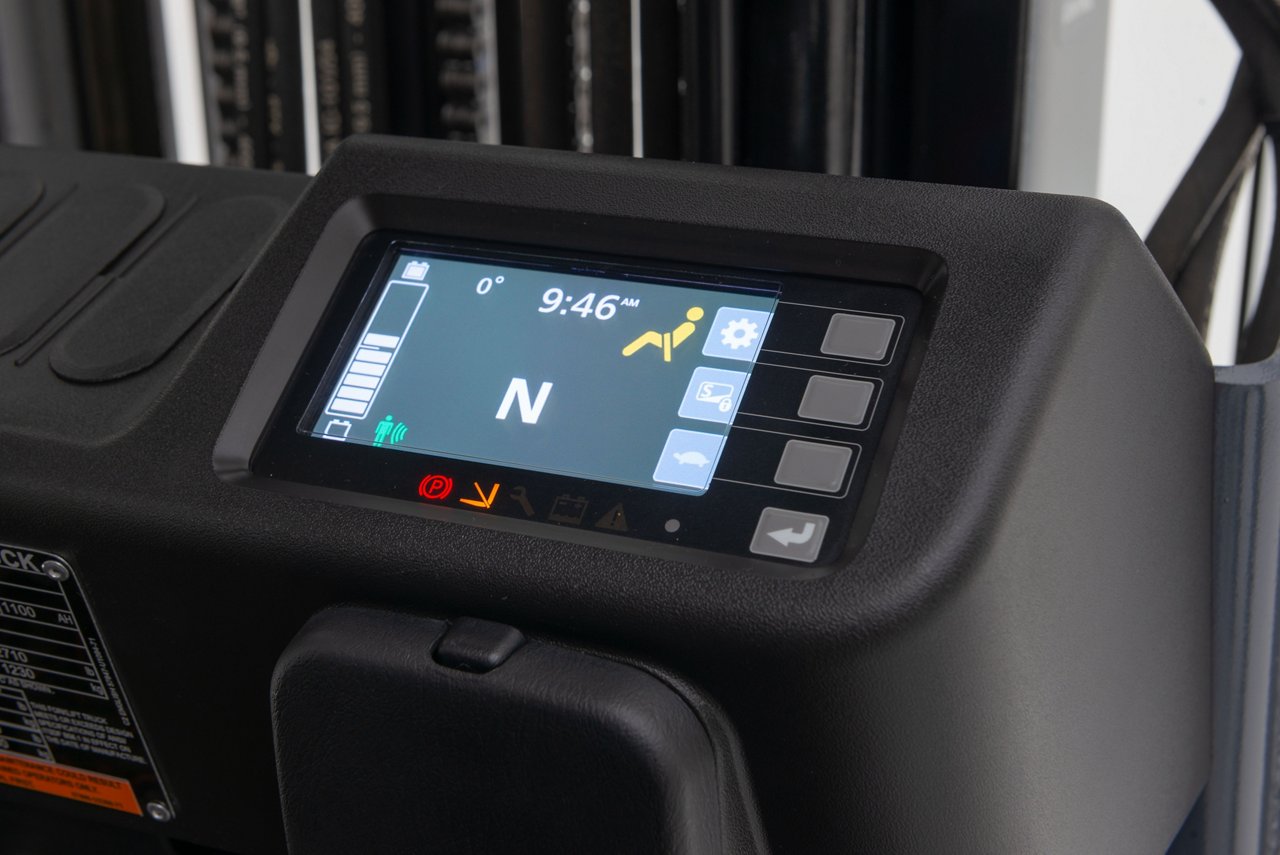

Seatbelt Interlock

Detects when the seatbelt is buckled and restricts travel when the seatbelt is unbuckled.

3 Wheel Electric Seatbelt Indicator
