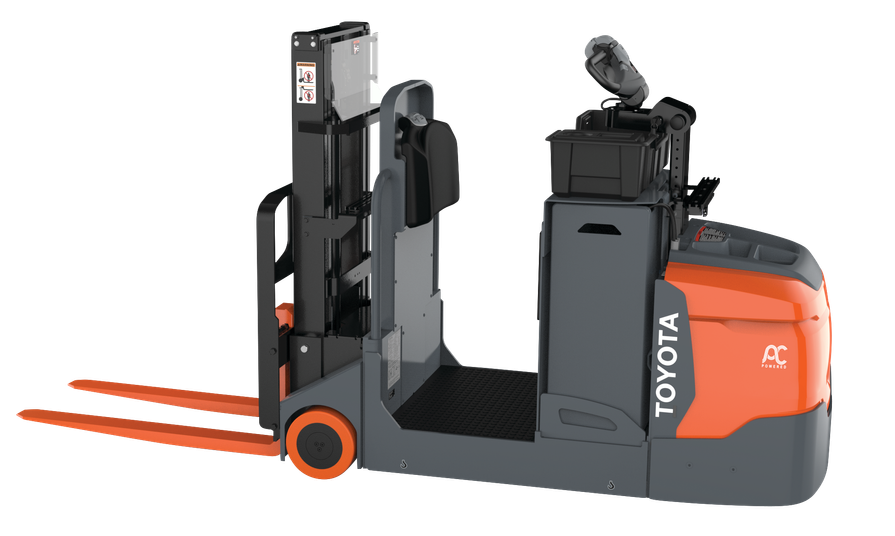

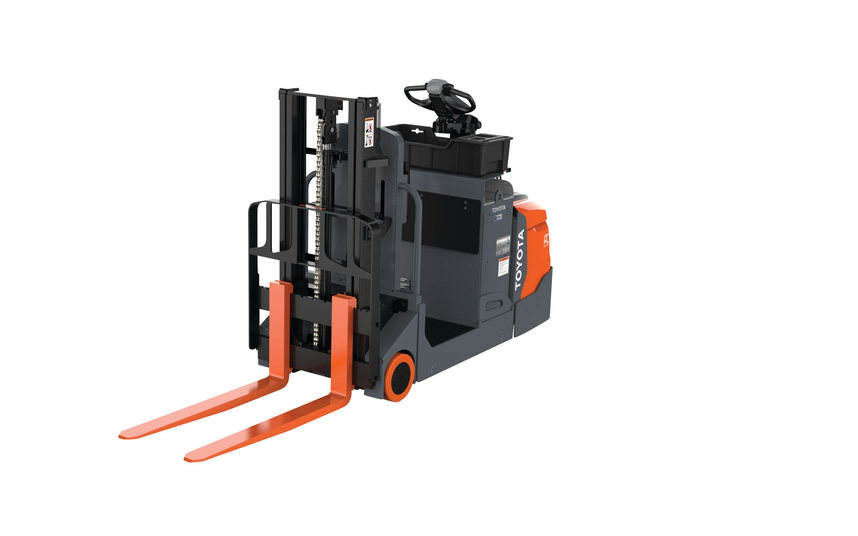

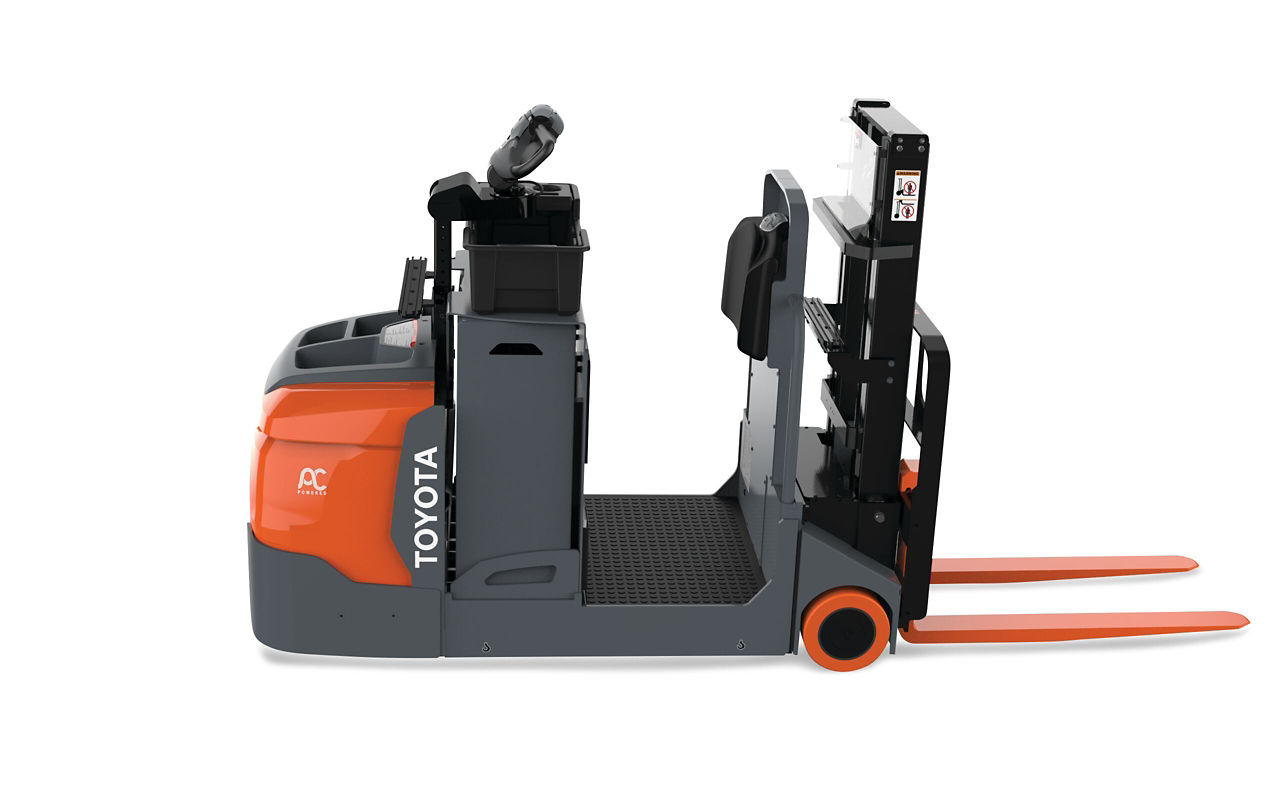

Center Rider Stacker

Low-level picking. Dock work. Narrow-aisle stacking. The Center Rider Stacker handles all of these and more. The versatile design enables it to perform the work of a center rider, order picker, and counterbalanced forklift – all in one. This delivers the ultimate utility and value in operations where it can replace some or all existing equipment.

Special Features
  • 2,500 lb. Lifting Capacity
  • AC Drive Motor
  • Power Steering


Center Rider Stacker Specifications

Learn more about the current Toyota Center Rider Stacker that is available for purchase.


Load Capacity



Travel Speed Full Load





Fork Length

79 in.

Image of orange and grey forklift and a grey bar underneath the image to represent the length of the forklift from tip of the fork to the end of the piece of equipment

Mast Lowered Height

61 in.

Image of the forklift from the front showing orange forks

Overall Width

33.25 in.

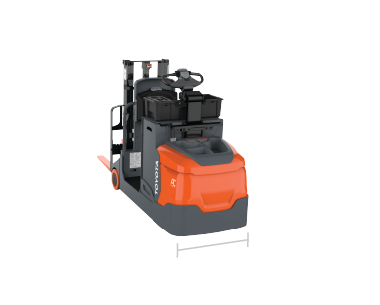

front of center-controlled rider stacker showing a orange cover
Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Max Lift Height (in.)
CR1-RS25 2,500 6 22 8 72

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

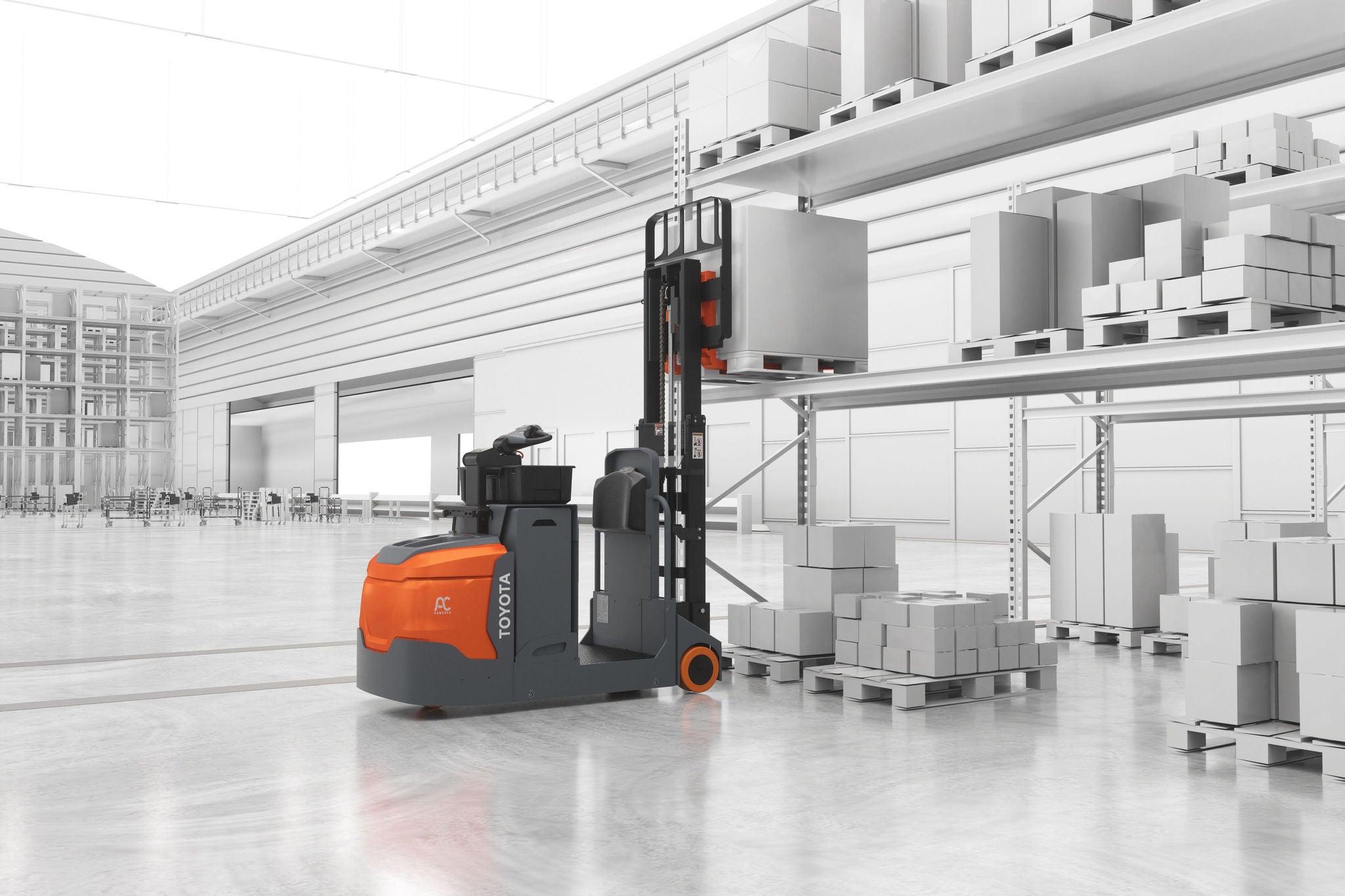

toyota center rider stacker lifting pallet to second shelf of warehouse


Productivity Powerhouse

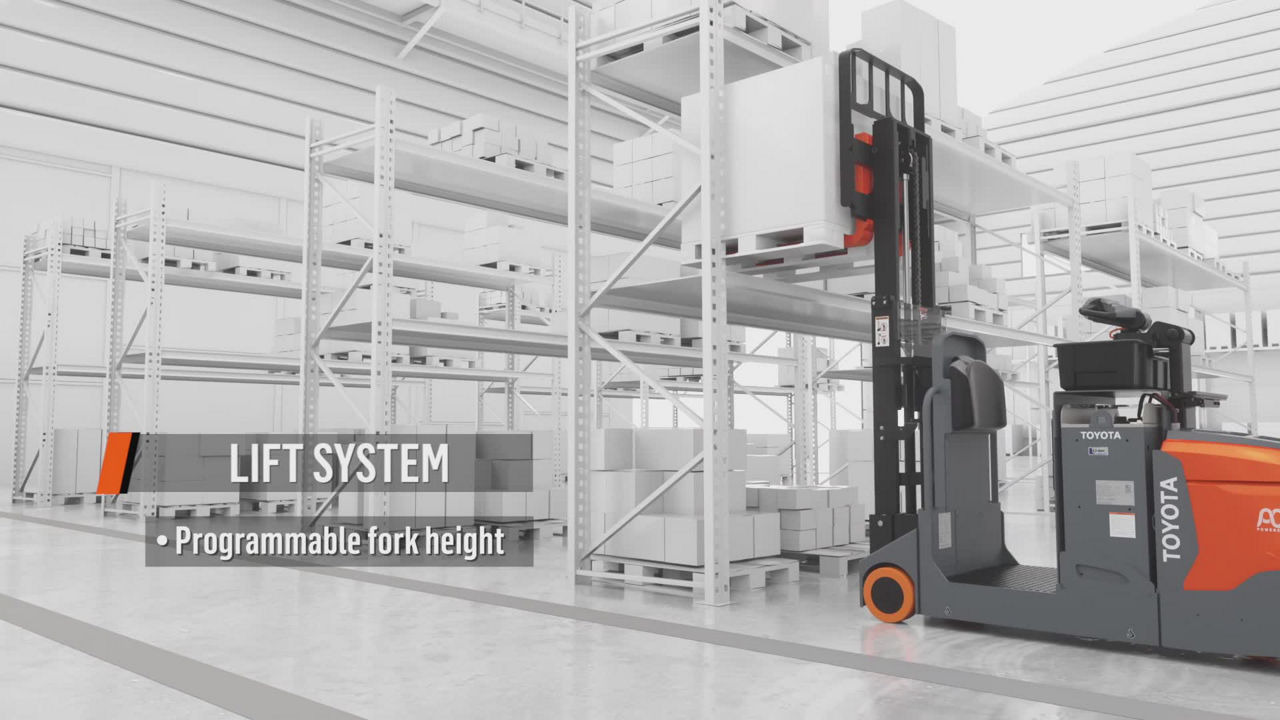

Keeping up with your operational demands requires speed, reliability, and efficiency. The Center Rider Stacker excels at all three, so you can stay on the move. The AC drive motor delivers long runtimes and smooth operation. An optional lift/limit enables a lift height to be set that reduces travel speed when exceeded.

Center Rider Stacker Features

The Center Rider Stacker keeps operators comfortable and productive all shift long with standard amenities like power steering, a cushioned kneepad and backrest, and a softcushioned floor mat. The ergonomic multifunction control handle and optional additional controls integrated into the backrest simplify operation whether you are traveling in either direction.

The ability to perform tasks typically handled by multiple pieces of equipment makes the Center Rider Stacker an ideal solution for warehousing and manufacturing applications. A mast with lift heights up to 72” enables ergonomic order picking and smooth, efficient pallet retrieval. The center rider chassis allows it to operate in narrow aisles and on trailers while also excelling at long runs, staging, and cross-dock work.

Toyota’s Center Rider Stacker provides a number of key benefits, particularly in operations where it can replace some or all of the existing equipment due to its versatility.


         Lower Labor Costs


         Lower Operational Costs


         Lower Equipment Costs


         Increased Productivity


Compare Models

Toyota Forklifts

Compare forklifts similar to the Center Rider Stacker.

This Product

Main product
Center Rider Stacker

Options / Accessories

Popular Center Rider Stacker Accessories

Make the most of your Center-Controlled Rider Stacker by considering additional options and accessories. A Toyota Forklift can be designed to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest challenges.

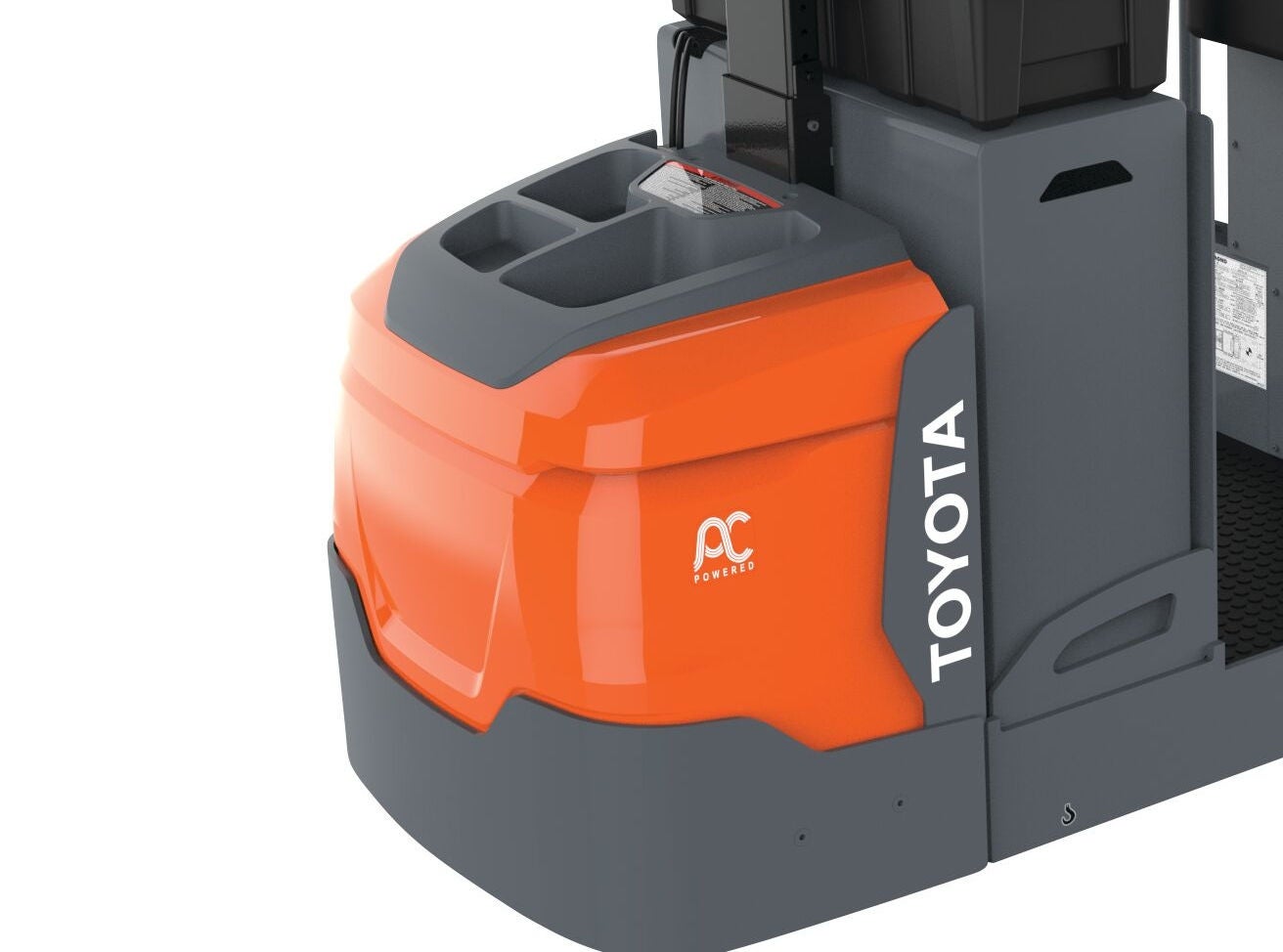

Battery-Mounted Storage Tray

The storage tray provides operators with a convenient place to store everyday items, and it is secured to the top of the battery with heavy duty magnets.

Keyless On/Off Switch

This option replaces the standard key switch with a toggle switch.

image of button on the dashboard of the inside of the forklift used to start the equipment. no keys are needed

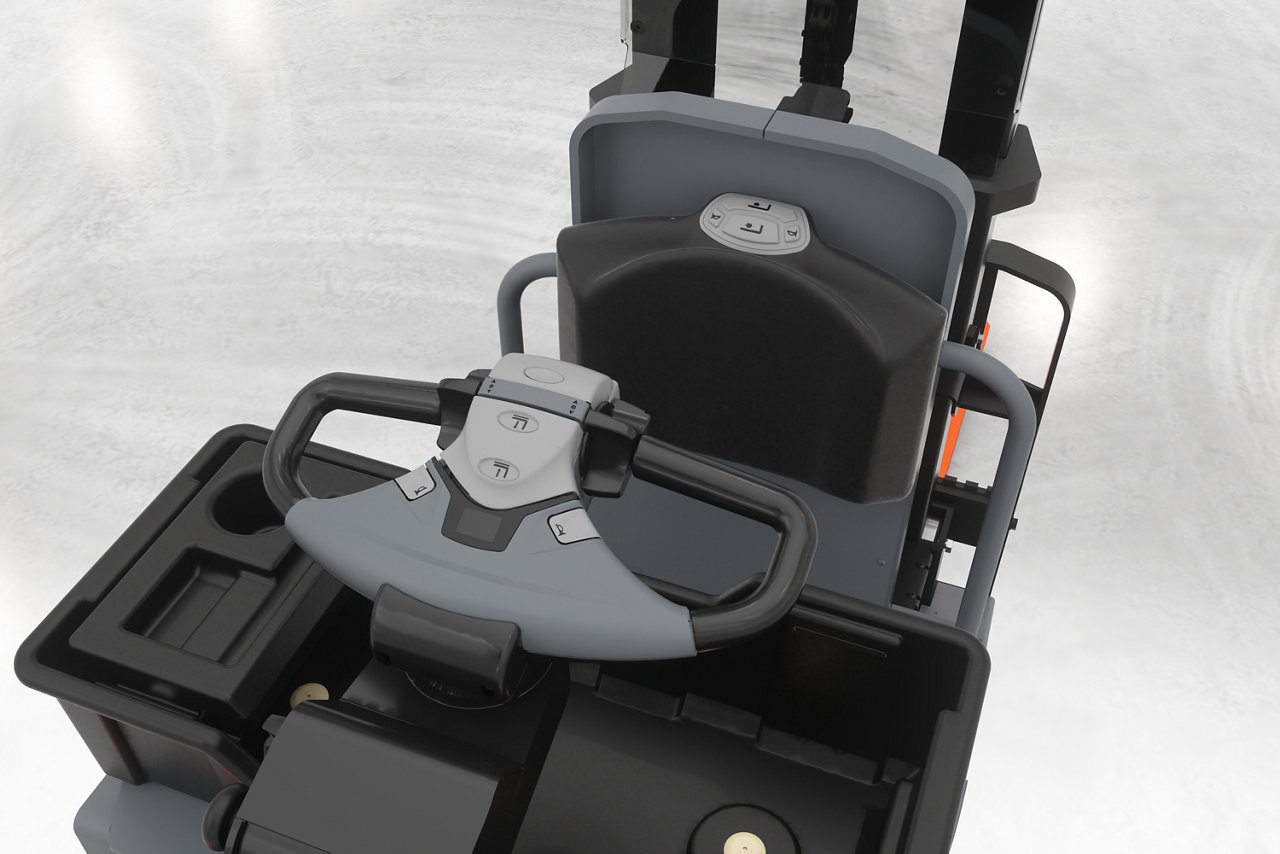

Cushioned Operator Backrest with Controls

This provides the operator with additional comfort and set of controls when entering and exiting pallets.

cushioned backrest on the back of the forklift for increased operator comfortability
