Walkie Stacker

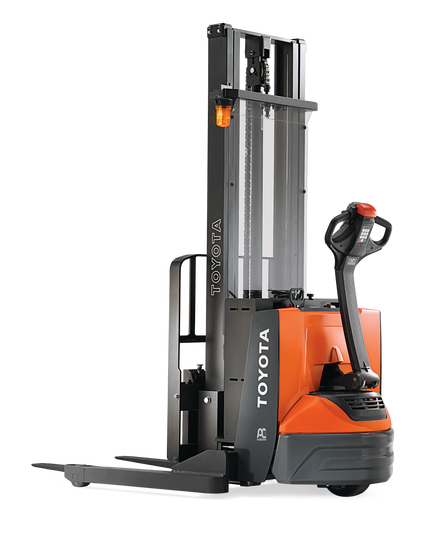

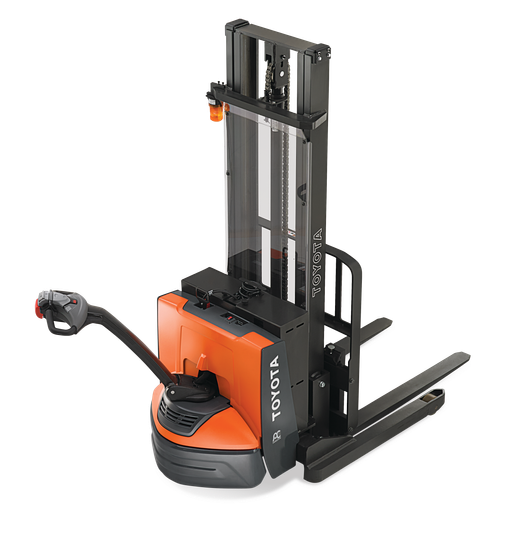

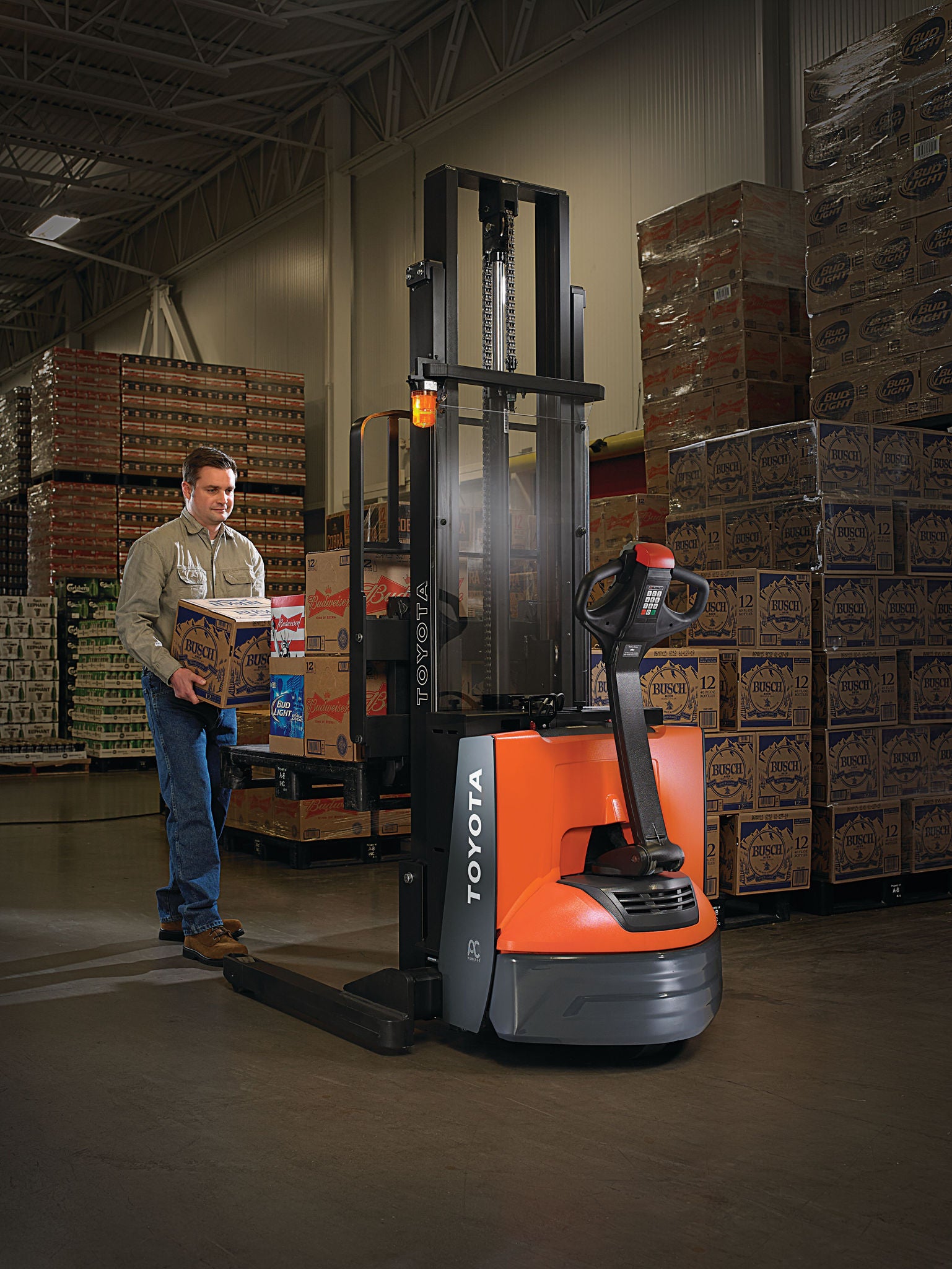

Toyota’s industry-leading Walkie Pallet Stacker is the multi-purpose lift you need for your unique operation. Equipped with a lifting capacity ranging from 2,000-2,500 lbs. and lift height up to 143 in. high, this short-stack lift complements nearly any indoor application. The Toyota Walkie Stacker Forklift is an extremely durable and budget-friendly solution that can help increase both your uptime and your bottom line.

Specs

Walkie Stacker Specifications

Learn more about the current Toyota Walkie Stacker models that are available for purchase.

2,000 - 2,500

Load Capacity

(lbs.)

3.4

Travel Speed Full Load
(MPH)

24

Electrical System

(V)

Length To Forkface

35.6 in.

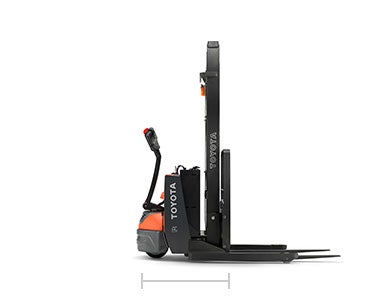

Image length of the semi-industrial stacker

Mast Lowered Height

71 - 91 in.

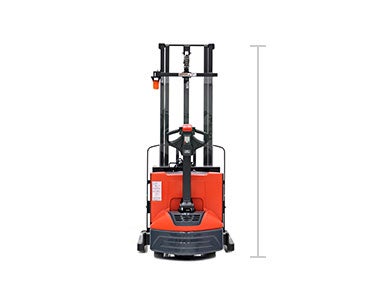

Semi-Industrial Stacker Image Height

Overall Width

40 - 59 in.

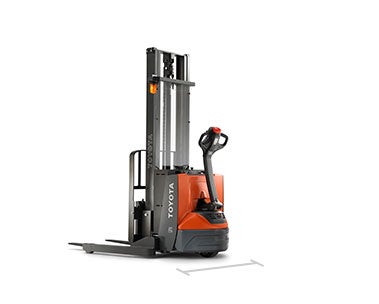

 Semi-Industrial Stacker Image Width

Models for Walkie Stacker

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Basic Right Angle Stack (in.) Max Lift Height (in.)
8BWS10 2,000 3.4 20 - 53 86.7 143
8BWS13 2,500 3.4 19 - 54 86.7 143

* Based on 24" Load center ** Add load length and clearance



Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.

Performance

Adjustable Stacking Solution

Designed to meet the needs of back-of-store retail applications, Toyota’s Walkie Stacker is the smoothest, light-duty material handling solution. Your workload demands a durable, innovative, reliable forklift design, and this lift doesn’t disappoint. Easy steering provides better maneuverability to complete more jobs with less effort.

Walkie Stacker Features

Toyota’s Walkie Stacker comes with a 24V electrical system and an AC Drive Motor for better acceleration and overall smoothness of travel. This product comes with a programmable auto-off feature that shuts down the truck when idle to conserve the life of the battery. The Walkie Stacker also has an optional maintenance-free battery option to keep your operation moving forward.

Safety features on the Walkie Stacker include a rugged, all-steel frame construction with improved durability and thicker hinge points to protect the lift from wear and tear that can occur during operation. This forklift also includes a click-to-creep feature to allow for smooth, low-speed control when navigating tight spaces. Increased bumper clearance is also included to make the floor transitions and dock plates easier to clear.

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the Walkie Stacker.

This Product

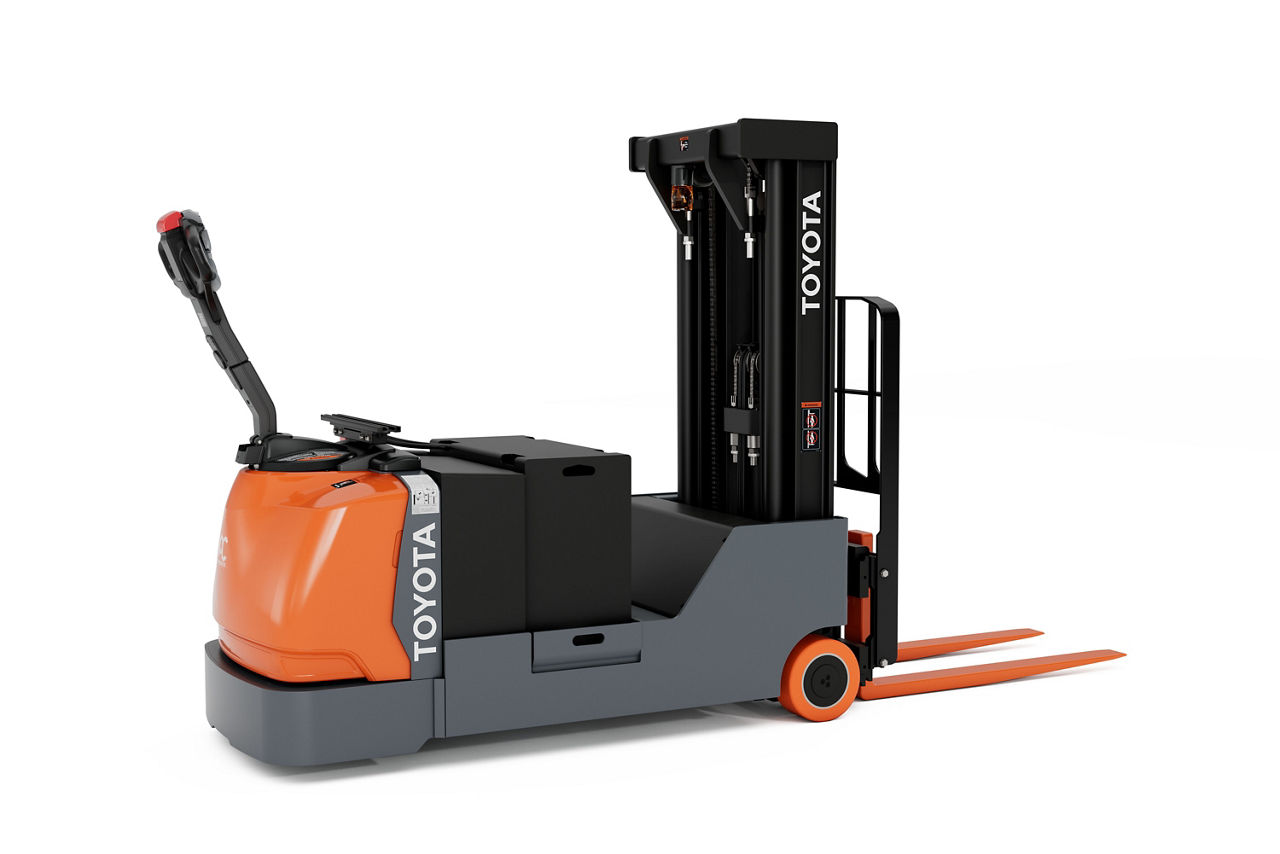

Main product

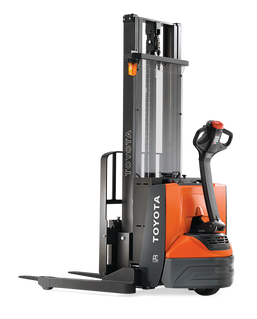

Walkie Stacker

Reviews
There are no reviews on this product at this time

Options / Accessories

Popular Walkie Stacker Accessories

Make the most of your Walkie Stacker by considering additional options and accessories. Toyota equipment can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Cold Storage

This option provides components that allow the truck to be operated in cold storage applications (see above for specifications, components, and operating conditions).

cold storage

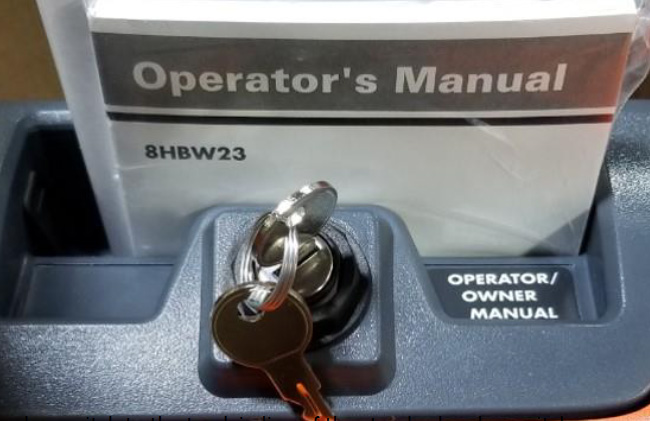

Key Switch

Provides the use of a key to turn on the forklift.

Electric-Walkie-Pallet Truck-Switch-Key-1

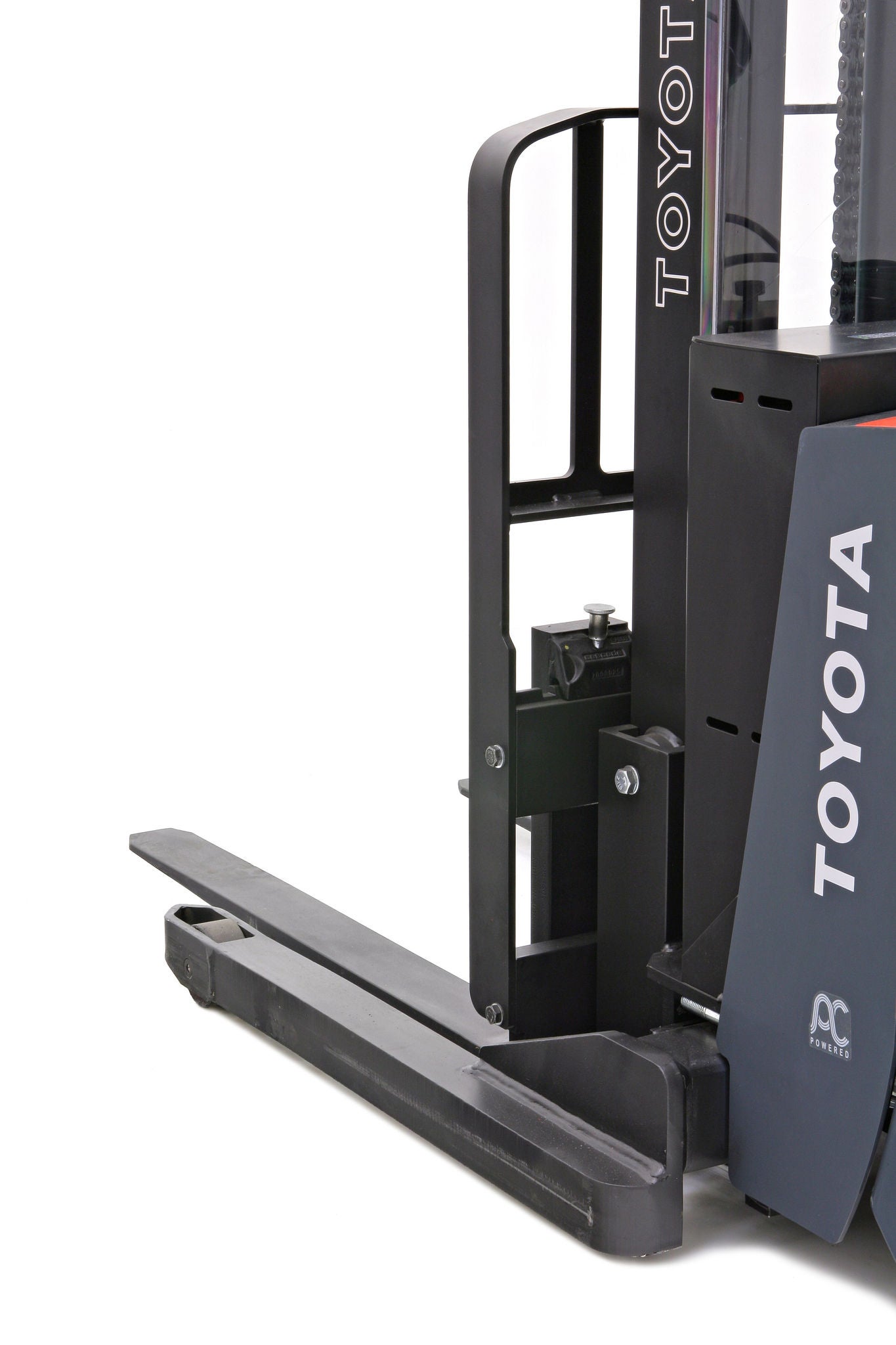

Adjustable-width Base Legs

This option provides operators with the ability to adjust base legs for various-size pallets/loads.

 Close-up public JPG walkie stacker 2
