What Is A Walkie Rider Pallet Jack?

Posted: August 27, 2019
Read Time:

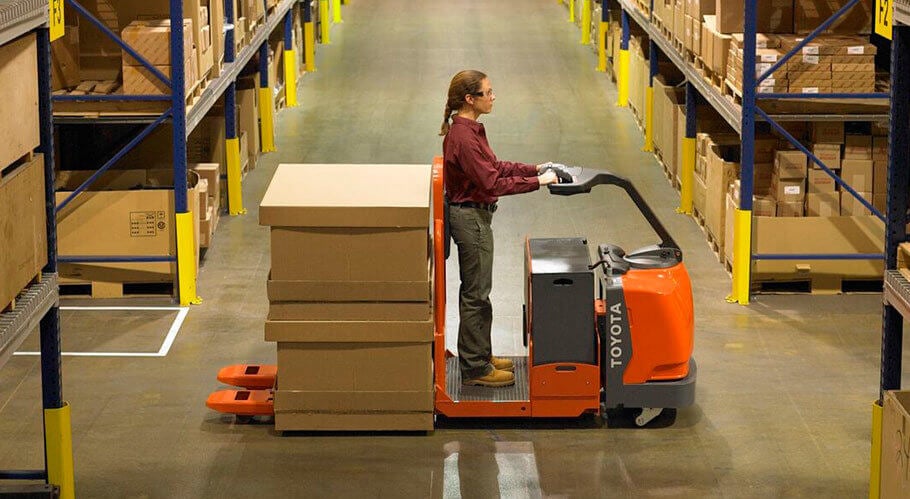

A Walkie Rider Pallet Jack is an electric-powered pallet jack in which an operator stands on an integrated platform while operating. They are designed to easily move products through a warehouse or distribution center. Its power, maneuverability, and ergonomic design allow operators to efficiently make long runs from one end of the facility to the other and comfortably handle multiple stops.

Walkie Rider Pallet Jacks: A Customizable Solution For Many Applications

The Walkie Rider Pallet Jack provides a reliable solution to the challenges faced in a variety of industries and applications, including beverage, cold storage, food storage, general manufacturing, general warehousing, and retail. It operates effectively indoors as a low-level warehouse picker and pallet mover.

With the wide range of options and accessories, the Walkie Rider Pallet Jack can be customized to improve your operation’s productivity and efficiency. For example, customers who move materials in and out of cold climates can add a cold storage conditioning option that helps protect components from water and condensation. The galvanized option includes all the elements of the cold storage option, but adds more protection against corrosive environments.



Some of the popular options and accessories include:



  • Battery compartment rollers — Provide rollers at the bottom of the battery compartment and dual side gates to allow the pallet jack battery to be rolled out from either the left or right hand side of the truck.
  • Coast control with jog buttons — Allows the end-controlled rider pallet jack to be moved forward at the touch of a button for low-level order picking while walking next to the forklift.
  • Load wheels and drive tires — Different compound types and load wheel configurations are available to assist with long runs, tight turns, and pallet entry. See our How to Make Decisions Between Polyurethane and Nylon Pallet Jack Wheels for more information.

Walkie Rider Pallet Jacks Available From Toyota

Toyota offers two models of the Walkie Rider Pallet Jack:



  1. End-Controlled Rider Pallet Jack
  2. Center-Controlled Rider Pallet Jack



Both models are AC-powered with a multifunction control handle with angled handgrips and wrap-around hand guard and have a load capacity of 6,000 to 8,000 pounds.



The major difference between the End-Controlled Rider Pallet Jack and the Center-Controlled Rider Pallet Jack is the positioning of the operator platform. The End-Controlled Rider Pallet Jack operator stands on the platform on the tractor side and rides with the unit, while the Center-Controlled Rider Pallet Jack operator to stands on the platform between the forks and the battery. Also, the End-Controlled Rider Pallet Jack has a maximum fork length of 144 inches and the Center-Controlled Rider Pallet Jack has a 103 inch maximum fork length.



Despite having some design differences, the two models share similar functional advantages. The multifunction control handle allows riders to simply manage all the controls with either hand. In addition, the high-speed interlock allows operators to maintain a top travel speed of 6.2 mph with a full load for long-distance transport without continuously pressing a button.



Other important advantages include:



  • Programmable performance parameter that can be customized through a digital display to adjust for a variety of job applications.
  • Self-diagnostics to simplify troubleshooting and eliminate the need for an external hand-held analyzer.
  • A glance-and-go display that provides a quick summary of key information.
