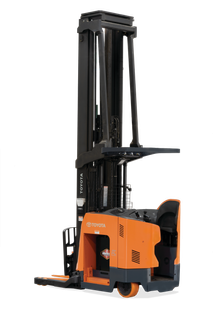

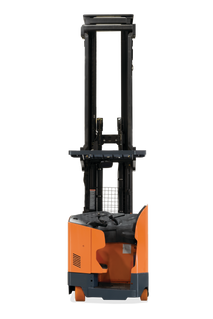

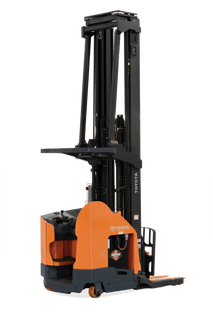

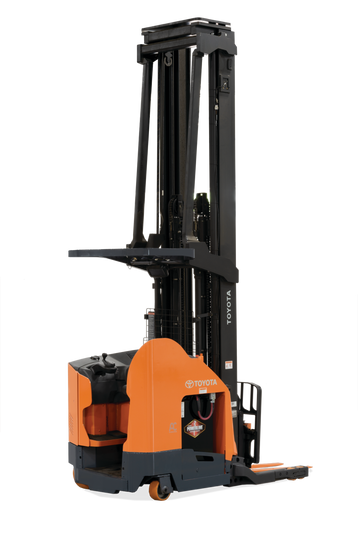

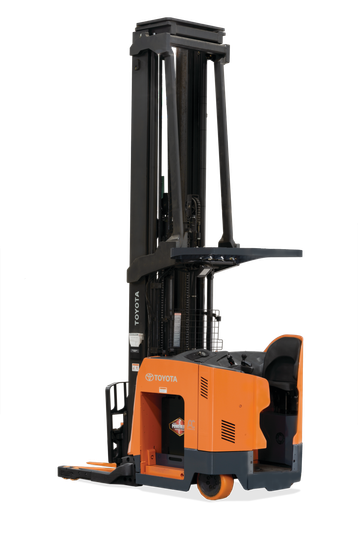

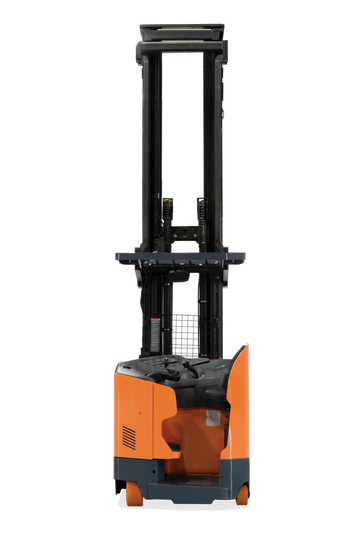

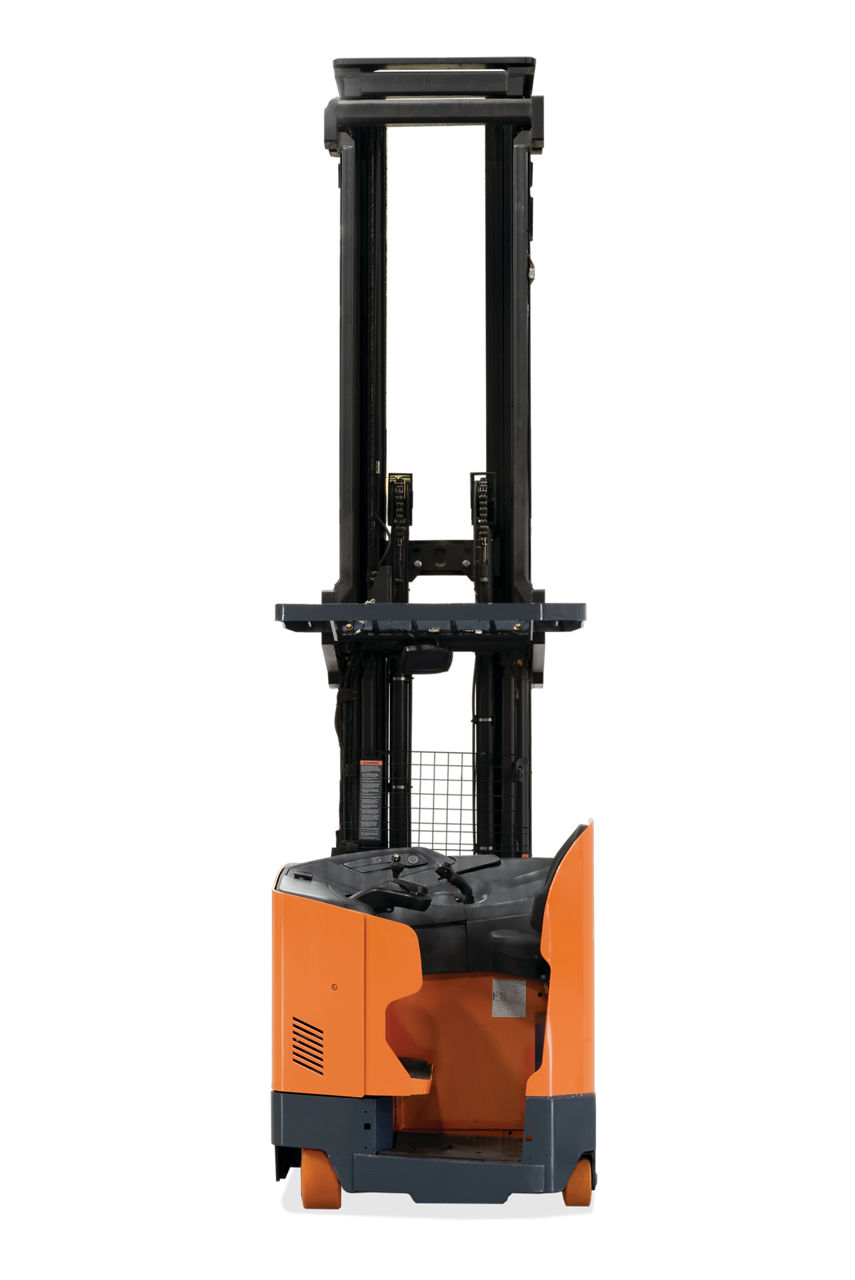

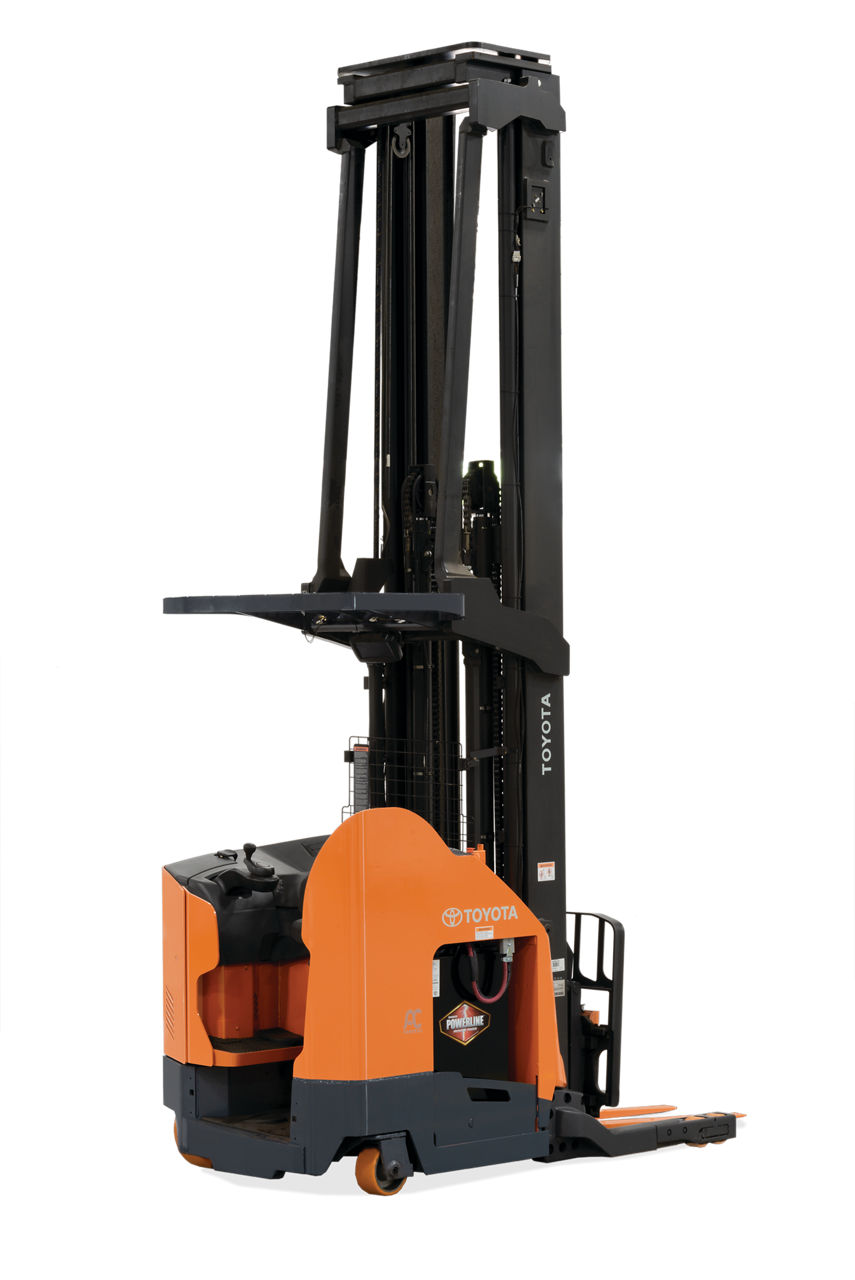

High-Capacity Reach Truck

Your fast-paced warehouse environment gets a workout day-in and day-out. When it comes to moving and storing products, the last thing you need is limitations. Keeping up with evolving throughput and storage density demands while managing fluctuating SKU counts presents challenges for warehouse managers and operators. Toyota’s High-Capacity Reach Truck enables you to reach higher, work smarter, and be comfortably productive regardless of the assignment. For tall tasks and heavy orders, you need the Toyota High-Capacity Reach Truck.

Special Features
  • 542 in. Maximum Lift Height
  • AC Drive and Lift Motors
  • Lift Heights up to 45 ft.


High-Capacity Reach Truck Specifications

Learn more about the current Toyota High-Capacity Reach Truck models that are available for purchase.

3,200 - 4,500

Lifting Capacity



Load Center



Maximum Fork Height

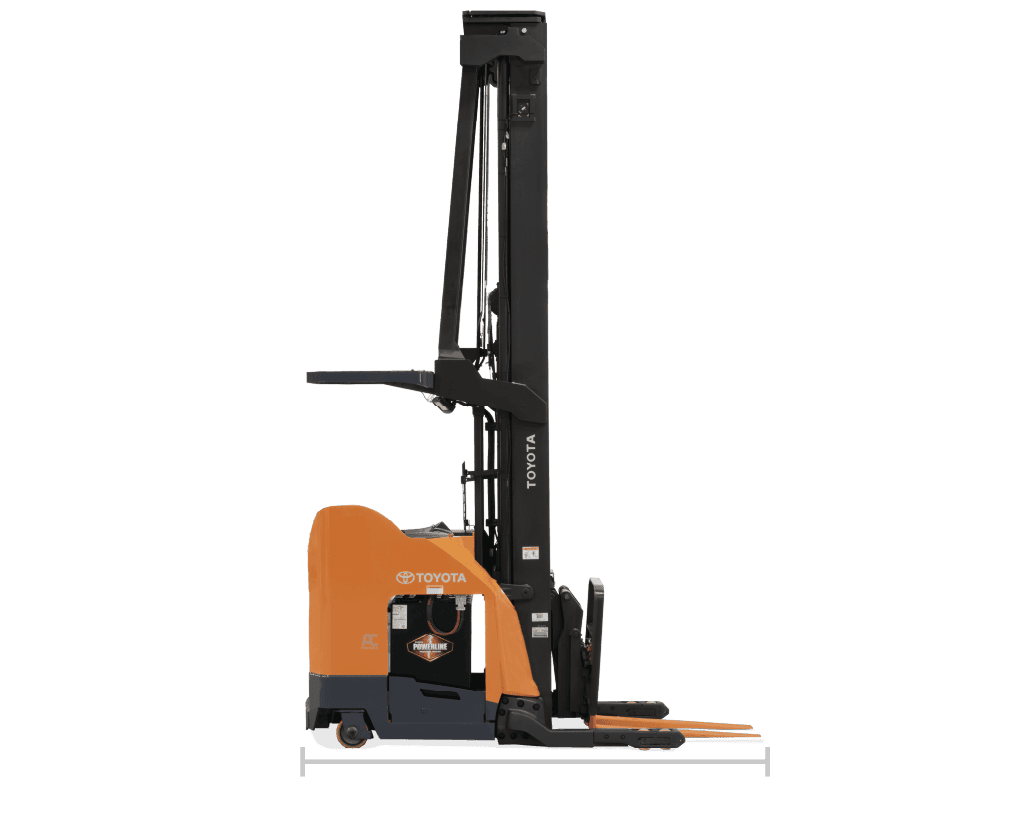

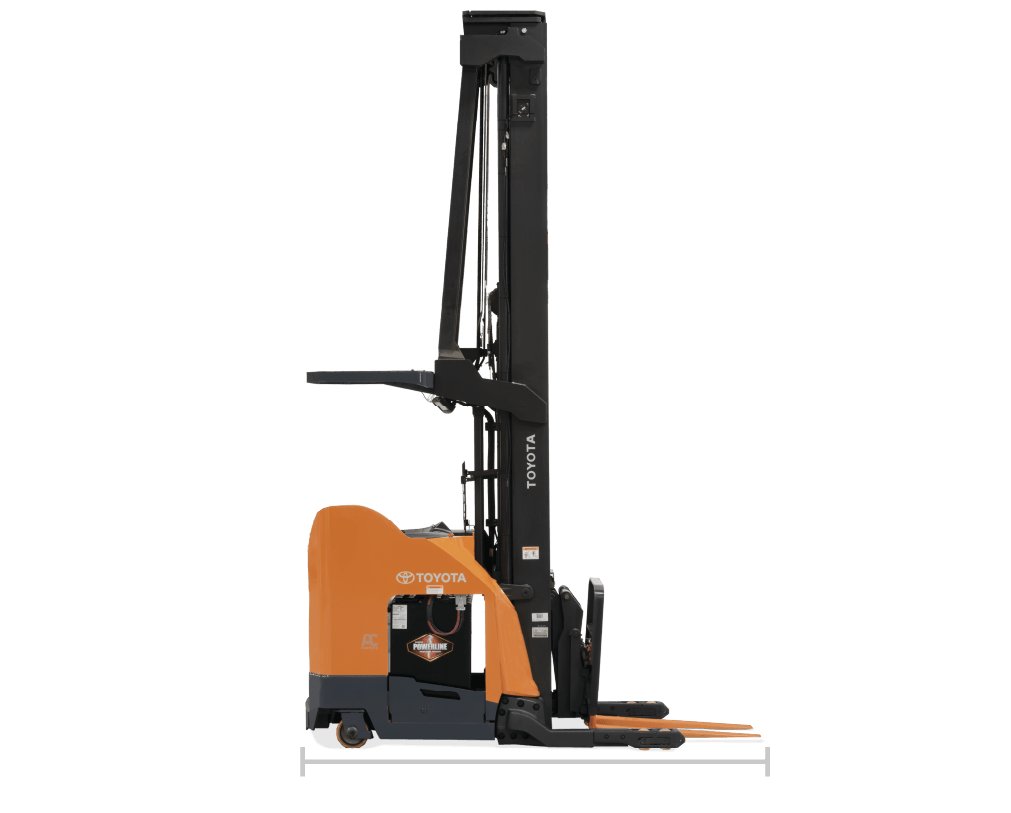

Length to Fork Face

67.2 - 74.3 in.

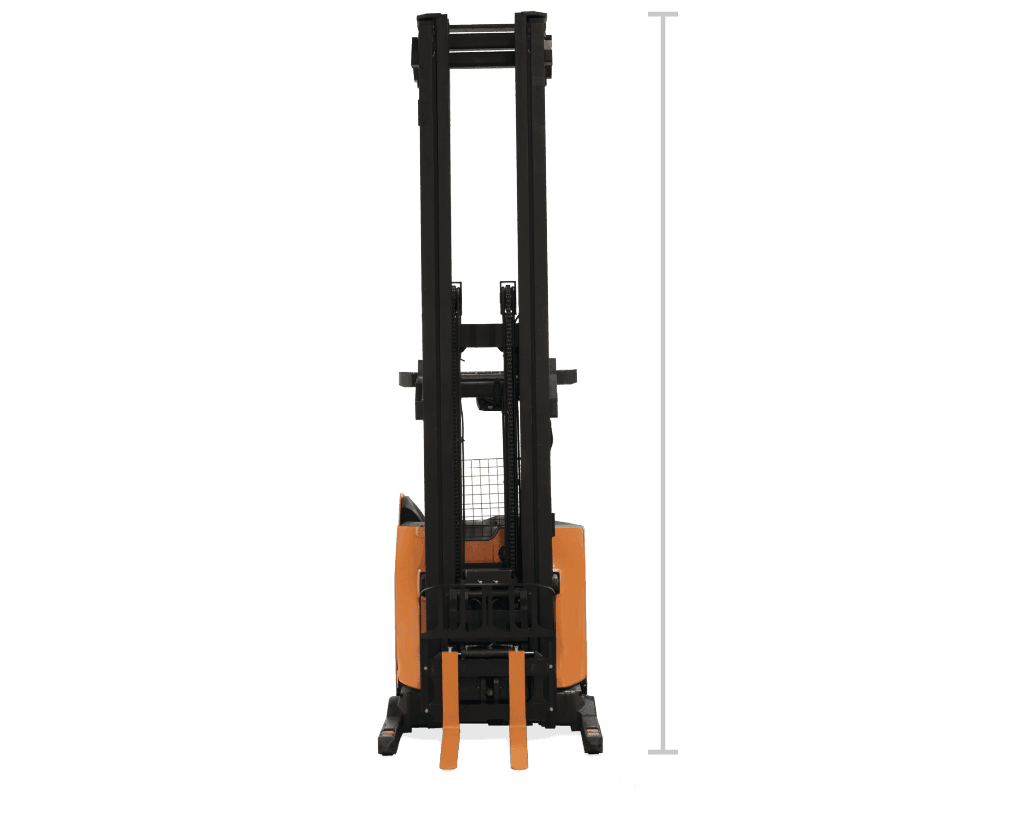

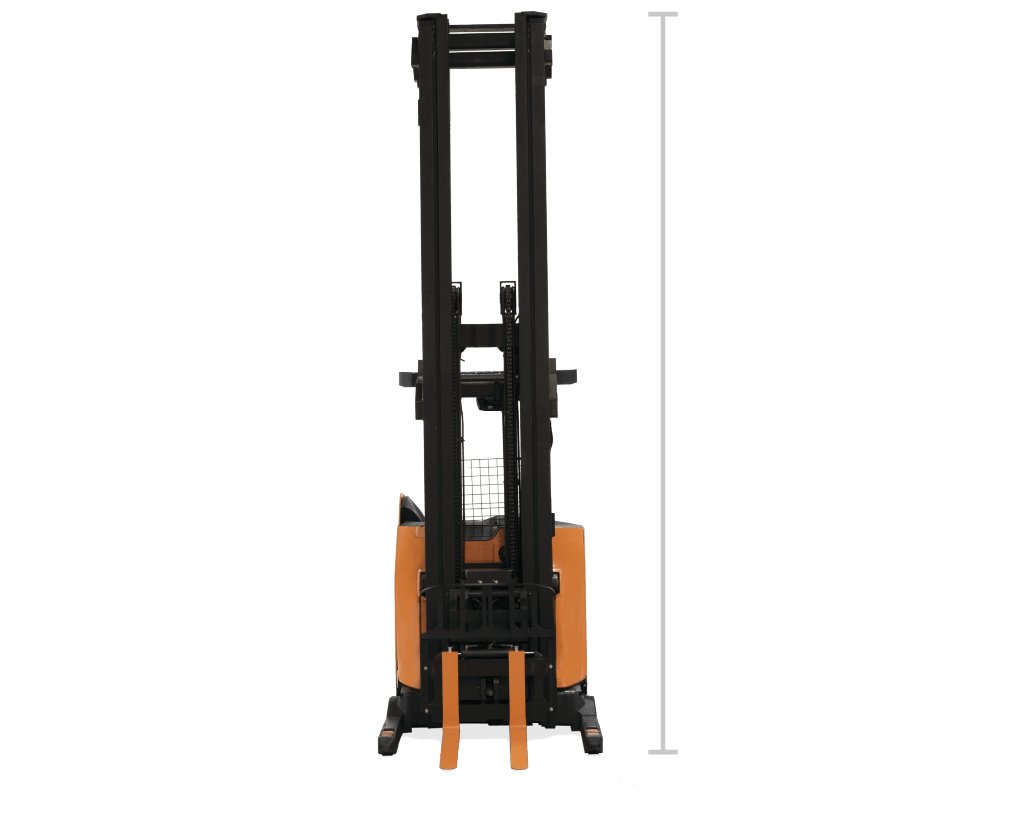

Mast Lowered Height

184 - 230 in.

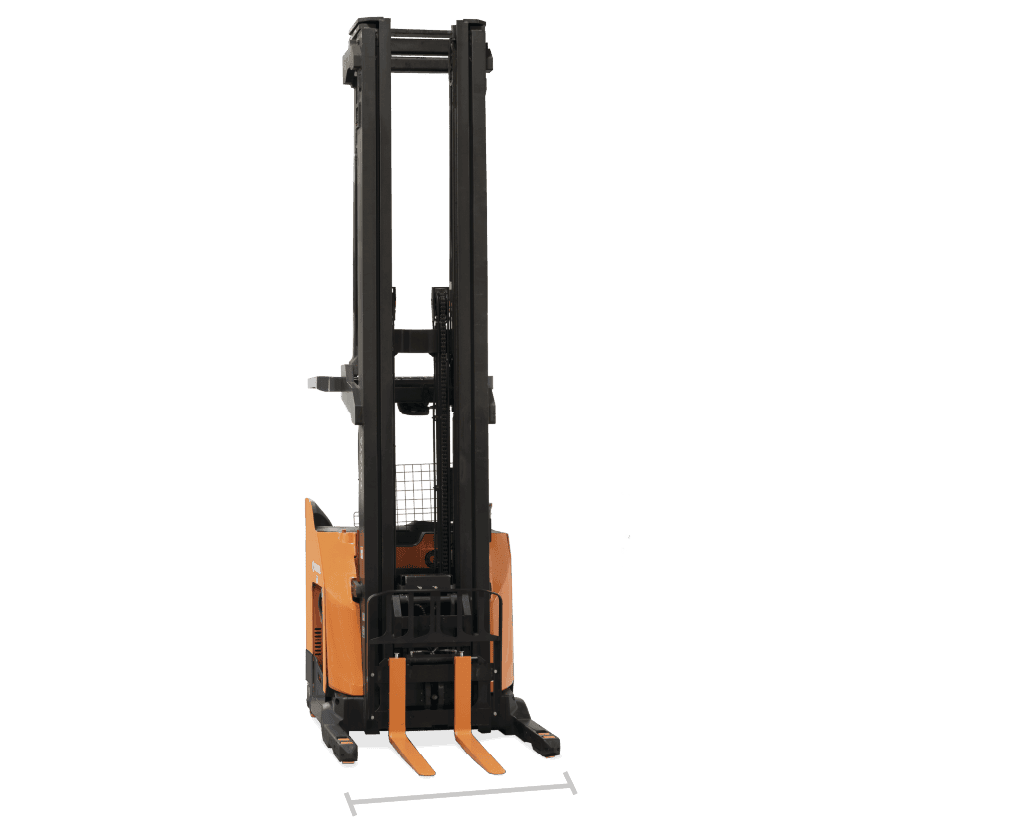

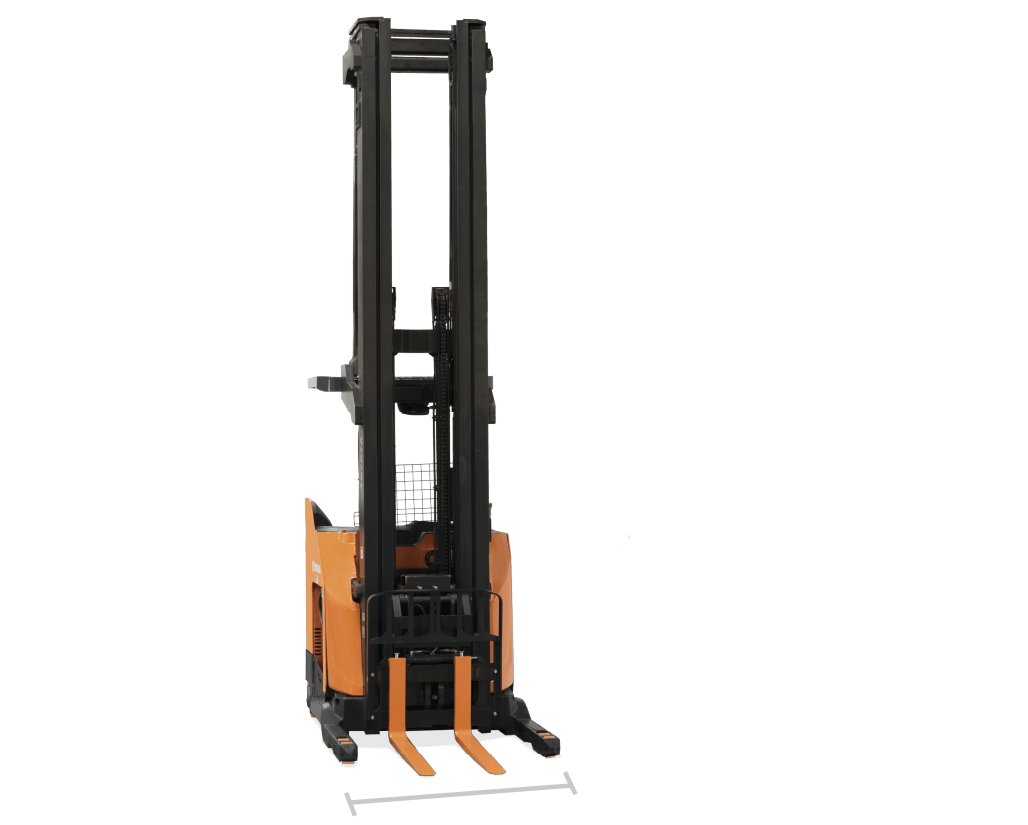

Base Leg Outside Dimension

52.5 - 64 in.

High Capacity 3

Models for High-Capacity Reach Truck

Model Load Capacity (lbs.) Max Travel Speed Full Load (MPH) Max Lift Speed Full Load (FPM) Max Gradeability Full Load (%) Max Lift Height (in.)
RF1-HC1X45 4,500 6.5 90 5 542
RF1-HC1Z45 4,500 6.5 90 5 542
RF1-HC2Z32 3,200 6.5 100 5 542
RF1-HC2X32 3,200 6.5 100 5 542

* Based on 24" Load center ** Add load length and clearance


Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.


Heavy on Productivity

Toyota’s versatile High-Capacity Reach Truck allows you to run your operations at a new level. Need to reach high? How about a lift height of up to 45 ft. Need to lift heavy? How about a lift capacity of up to 4,500 lbs? When needing to do both, the High-Capacity Reach Truck can lift 2,150 lbs. to more than 42 feet. It all adds up to better cube utilization and versatility to store products when and where you need to. Slow- and fast-moving pallets get stored based on need and not on your equipment’s limitations. Don’t limit your efficiency.

High-Capacity Reach Truck

Moving from pick to pick as quickly and efficiently as possible is the name of the game, and the Toyota High-Capacity Reach Truck delivers. Its powerfully efficient AC Drive and Lift Motors offer superior acceleration, travel, and lift/lower speeds to maximize throughput while minimizing downtime. Regenerative lowering and plugging return energy to the battery when lowering the forks and plugging and coasting for more efficient operation and reduced energy costs.

The High-Capacity Reach Truck’s intelligent design empowers operators to complete tasks confidently and efficiently, shift after shift. The multifunction handle allows for simultaneous use of the hydraulic functions and travel in one intuitive and ergonomic design. Rigid mast construction and an innovative suspension system help minimize sway for precise load and handling at maximum lift heights. The A-frame and caster steered idler reduces caster snap when backing away from a rack and during braking and cornering. An inertial dampener minimizes mast sway when right angle stacking at high lift heights for exceptional control. This lift also includes a high-visibility overhead guard, electric horn, emergency power disconnect switch, and anti-static ground strap.

The High-Capacity Reach Truck’s impressive lift height is matched equally by its ingenuity. The standard 7” touchscreen display puts key information, programming, and diagnostic capabilities right at your fingertips.


For extra assistance when working in tall racking, the optional carriage-mounted camera system feeds video of the forks and pallet to the display for optimal control and precision. Optional Acculaser technology projects a light beam where the forks are positioned. The height and tilt indicator shows relative mast and fork positioning on the touchscreen display for even more precise load handling. Features include:


  • Hour Meter

  • Time and Date

  • Programmable Performance

  • Reach/Retract and Coast Control

  • Weight Display

  • Optional Camera Display

  • Optional Tilt/Height Indicator

Compare Equipment

Toyota Material Handling Products

Compare Toyota products similar to the High-Capacity Reach Truck.

This Product

Main product
High-Capacity Reach Truck

Options / Accessories

High-Capacity Reach Truck Accessories

Make the most of your High-Capacity Reach Truck by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.

Carriage Mounted Camera

The Carriage-Mounted Camera provides operators with an additional visual aid for positioning forks at high heights.

Carriage Mounted Camera

Fork Camera

Various fork camera systems provide operators with a closer visual to loads.


Multifunction Control Handle

Multifunction control handle allows the operator to conveniently and quickly keep one hand on the wheel while the other can control travel, lifting, loading, and horn functions.

controls you can access by using only one hand
