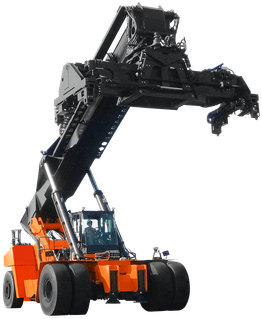

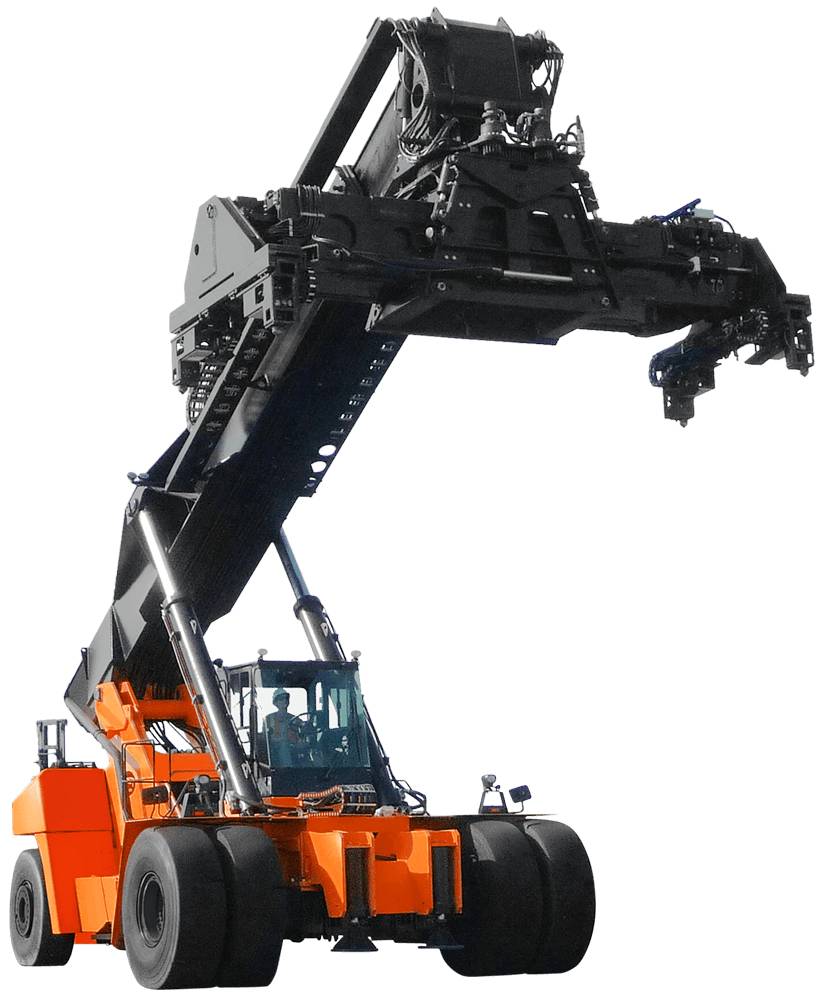

Reach Stacker Container Handler

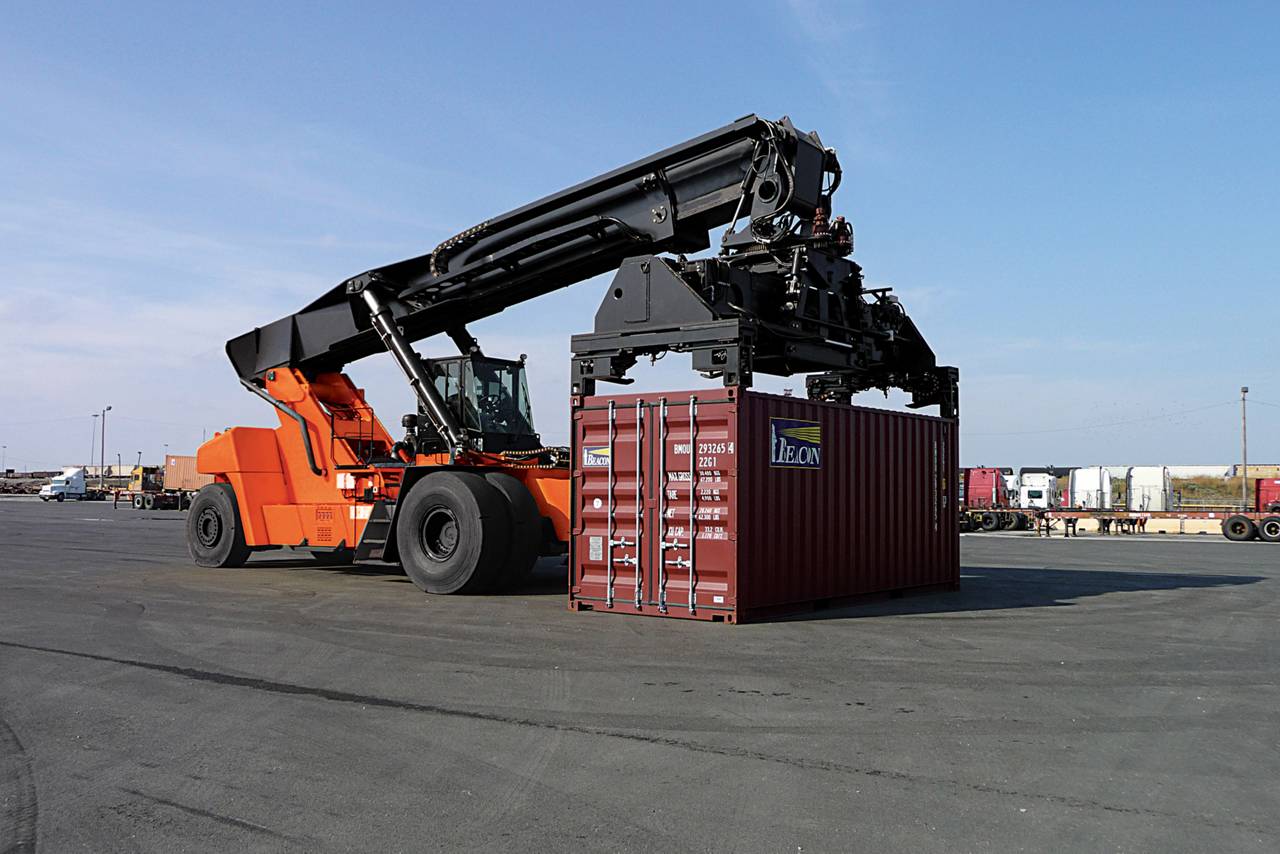

The Toyota Reach Stacker Container Handler is used to handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. The Toyota Reach Stacker Container Handler can stack up to five containers high with a reach depth of three rows and lifting capacity of up 99,000 lbs.
Models for Reach Stacker Container Handler
| Model | Load Capacity (lbs.) | Max Travel Speed Full Load (MPH) | Max Lift Speed Full Load (FPM) | Max Gradeability Full Load (%) | Basic Right Angle Stack (in.) |
|---|---|---|---|---|---|
| THD9900-R60 | 99,000 (1st row) / 60,000 (2nd row) / 30,000 (3rd row) | 19.3 | 60 | 18.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R68 | 99,000 (1st row) / 68,000 (2nd row) / 34,000 (3rd row) | 19.3 | 60 | 17.5 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R73 | 99,000 (1st row) / 72,600 (2nd row) / 38,500 (3rd row) | 19.3 | 60 | 17.2 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R77 | 99,000 (1st row) / 77,000 (2nd row) / 44,000 (3rd row) | 19.3 | 60 | 16.9 | 480 (20' cont.) / 565 (40' cont.) |
| THD9900-R85 | 99,000 (1st row) / 85,000 (2nd row) / 47,000 (3rd row) | 20.1 | 60 | 15.8 | 508 (20' cont.) / 586 (40' cont.) |
| THD9900-R90 | 99,000 (1st row) / 90,000 (2nd row) / 68,000 (3rd row) | 20.1 | 60 | 15.6 | 508 (20' cont.) / 586 (40' cont.) |
* Based on 24" Load center ** Add load length and clearance
Product specifications may not reflect the most current product details. Authorized Toyota dealers retain the most current product specifications. All specifications should be verified by an authorized Toyota dealer prior to purchase.
Performance
Container Stacking Champion

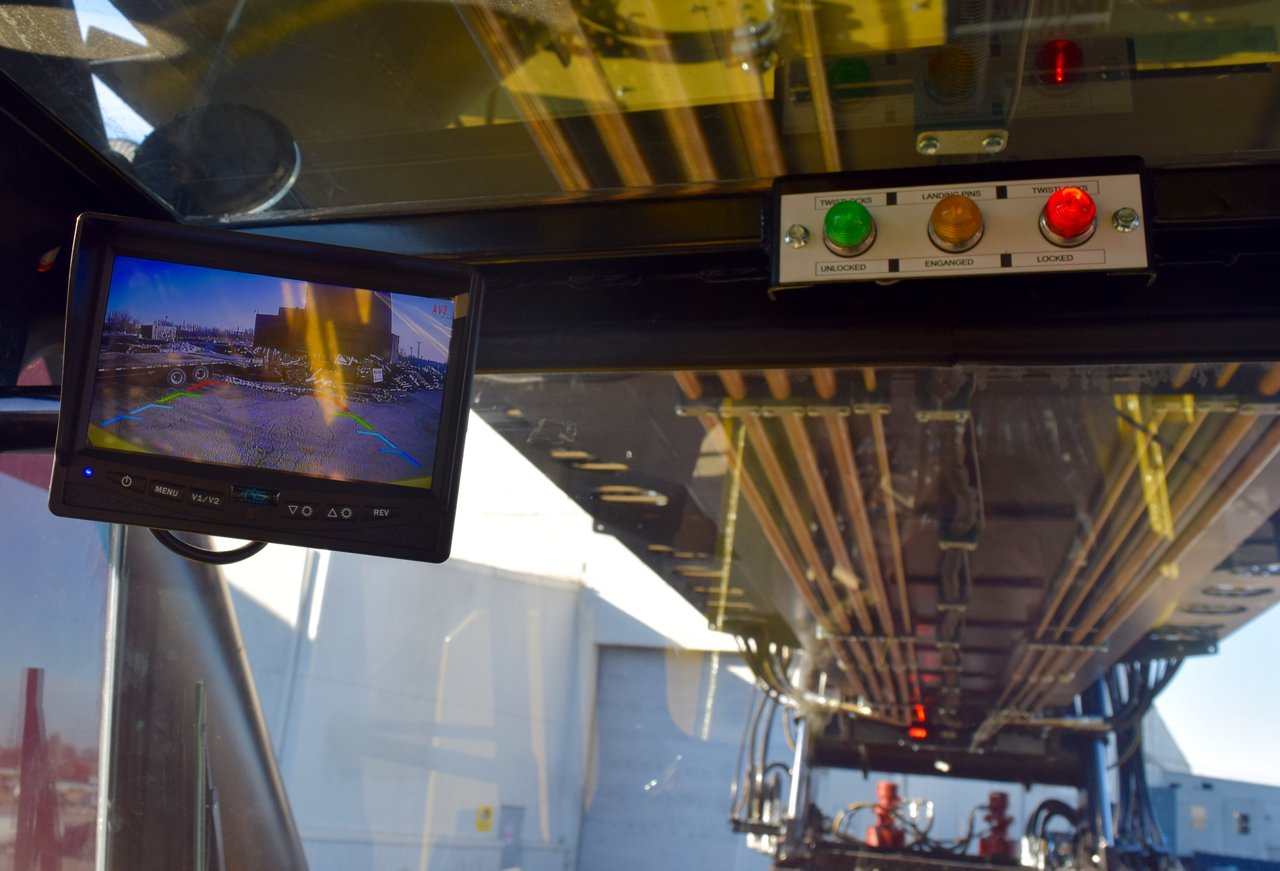

Toyota’s Reach Stackers can handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. The THD9900-R90 also offers front stabilizers for second and third rail operations. Twistlock camera systems, trailer leg modules, and rear container guides are also available to handle your specific application’s needs. With Toyota’s Reach Stacker, you’ll get unmatched operator visibility and ergonomic features that provide more safety, more comfort, and more productivity.
Reach Stacker Container Handler Features
Toyota’s Reach Stacker Container Handler has a stacking capacity of up to five 9x6 containers high and can reach depths of three rows. This powerhouse performer has up to a 275-inch wheelbase along with a 78-inch load center.
Every component of the Toyota Reach Stacker Container Handler is not just assembled in the United States, but manufactured in the U.S. as well. In fact, the frame, mast, and all other major components are made in the same plant, which allows Toyota to manage and maintain an unmatched level of consistency and quality.
Recommended Industries
Options / Accessories
Popular Reach Stacker Container Handler Accessories
Make the most of your Reach Stacker Container Handler by considering additional options and accessories. A Toyota Forklift can be customized to meet your operational needs. An authorized Toyota Dealer can assist you in developing the best forklift that can help you with your company’s biggest material handling challenges.
